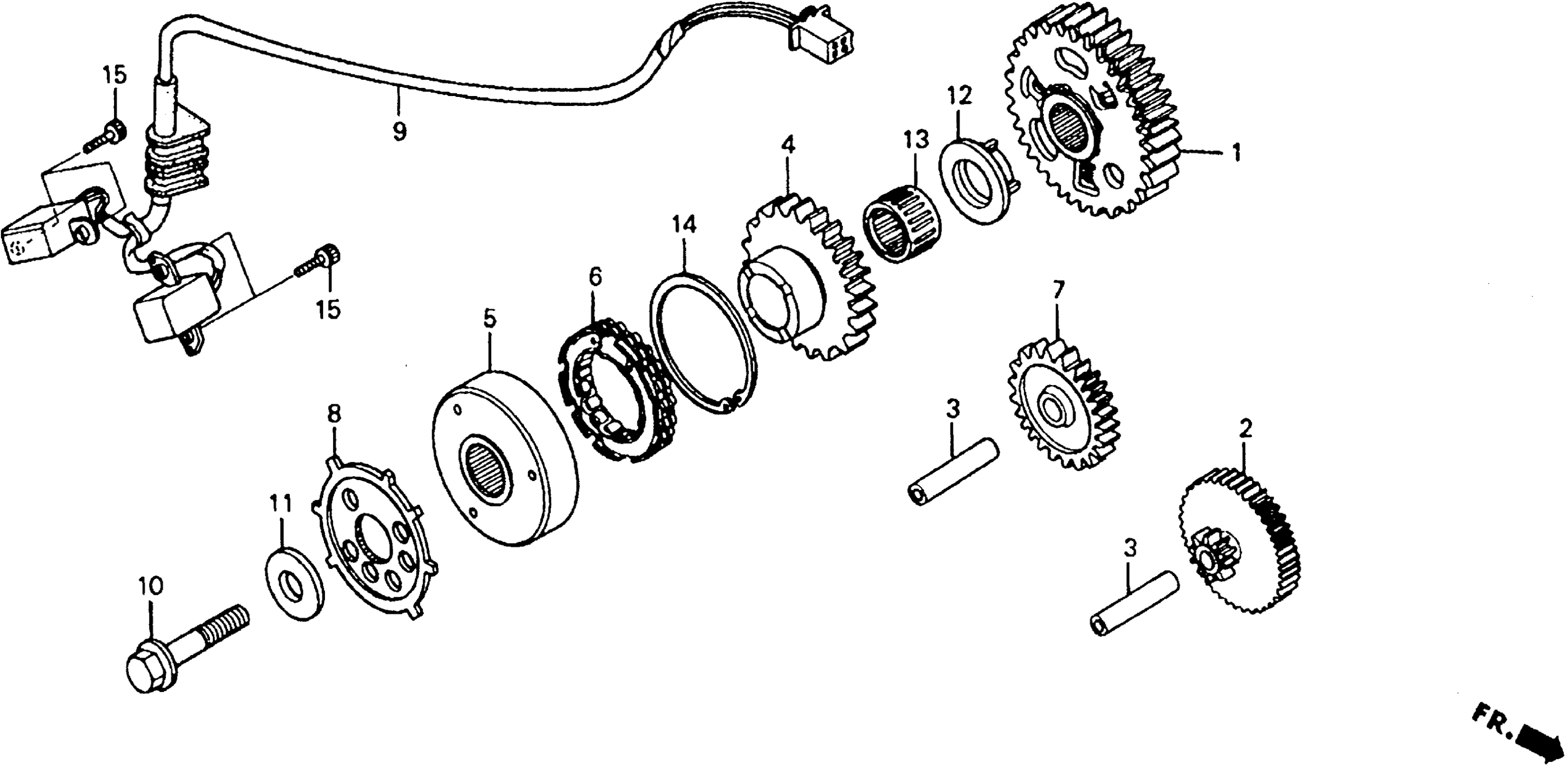

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 STARTING CLUTCH Diagram

GEAR ASSY., PRIMARY DRIVE (33T)

23110-MW4-000

Unavailable

GEAR, STARTER REDUCTION (60T/10T)

28101-MW4-000

Unavailable

PIN (10X36.5)

28102-ML7-000

$8.66

GEAR, STARTING CLUTCH (39T)

28111-MW4-000

Unavailable

FLANGE, STARTING CLUTCH

28115-MW4-000

Unavailable

CLUTCH, ONE-WAY

28125-MW4-003

$101.02

GEAR, STARTER IDLE (29T)

28131-MW4-000

Unavailable

ROTOR, PULSE

30291-MW4-000

Unavailable

GENERATOR ASSY., PULSE

30300-MW4-003

Unavailable

BOLT, FLANGE (10X35)

90003-MN4-000

$6.05

WASHER (10.5X27)

90405-KT7-000

$4.70

GUIDE, PRIMARY DRIVE GEAR

90509-MR7-000

$51.92

BEARING, NEEDLE (30X35X22.8)

91022-MW4-003

$36.92

CIRCLIP (INNER) (63MM)

94520-63000

$3.46

BOLT, SOCKET (6X16)

96600-06016-00

$1.66
