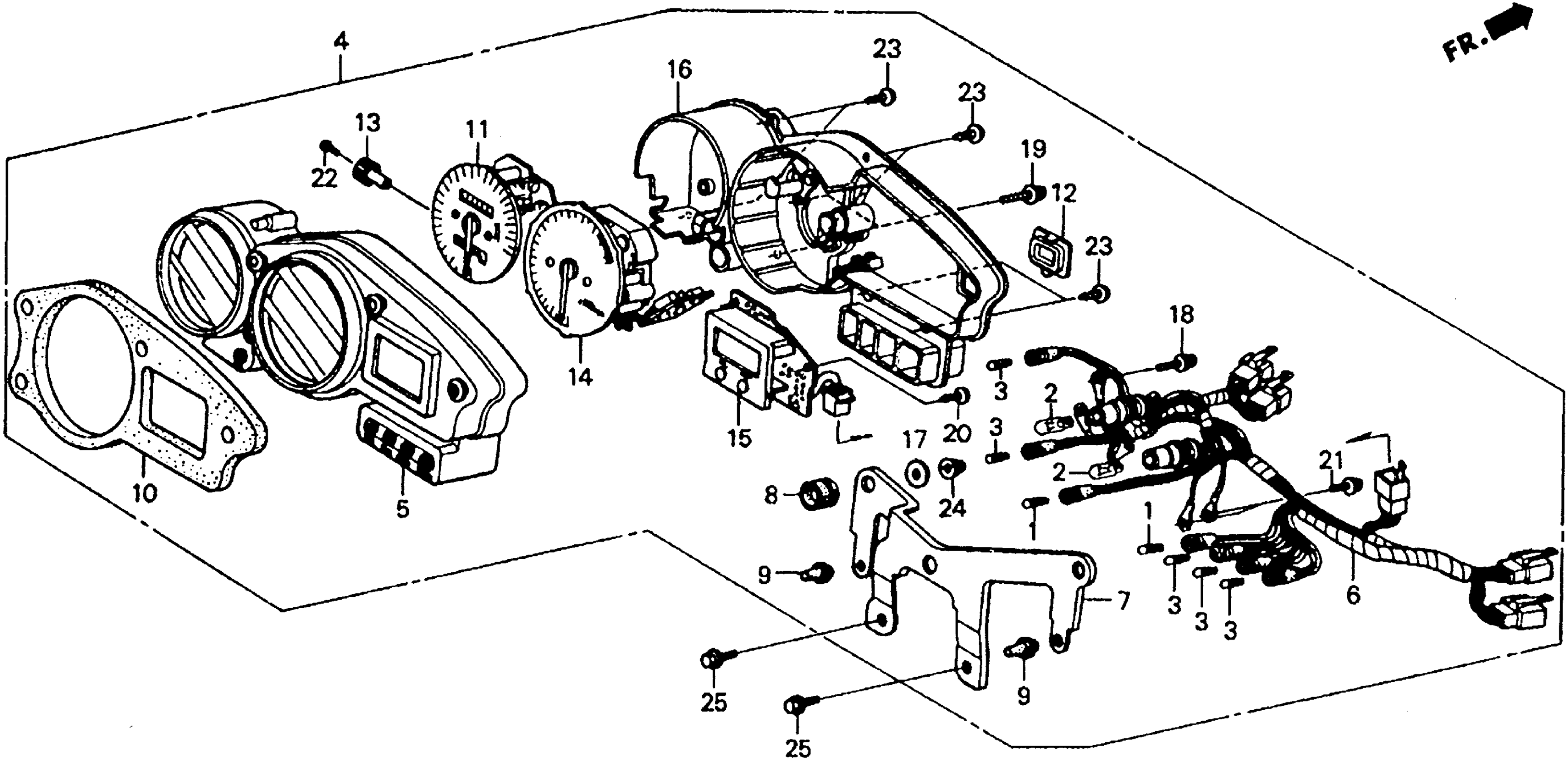

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

2

BULB, WEDGE BASE (12V 1.7W)

34908-MB9-871

$2.78

3

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

4

METER ASSY., COMBINATION

37100-MW4-671

Unavailable

5

CASE ASSY. (UPPER) This part replaces 37102-MW4-003.

37102-MW4-601

Unavailable

6

SOCKET

37105-MW4-003

Unavailable

7

BRACKET

37120-MW4-003

Unavailable

8

RUBBER, SPEEDOMETER SETTING

37125-MR7-008

Unavailable

9

GROMMET

37127-MR7-008

Unavailable

10

PANEL

37130-MW4-003

Unavailable

11

SPEEDOMETER ASSY. (MPH/KPH)

37200-MW4-671

Unavailable

12

GROMMET

37218-GE1-741

$6.70

13

KNOB, TRIP

37220-MA6-008

$12.84

14

TACHOMETER ASSY.

37250-MW4-003

Unavailable

15

METER ASSY., TEMPERATURE

37400-MW4-671

Unavailable

16

CASE (LOWER)

37615-MW4-003

Unavailable

17

WASHER, PLAIN (5MM)

84103-443-740

Unavailable

18

SCREW-WASHER, SPECIAL (3X18)

90102-MAE-611

Unavailable

19

SCREW, TAPPING (4X19)

90103-KV3-951

Unavailable

20

SCREW, TAPPING (3X12)

90105-MT7-003

$1.49

21

SCREW-WASHER (3X12)

90108-GN2-008

$2.41

22

SCREW, PAN (2X6)

90158-KM7-911

$1.92

23

SCREW, TAPPING (3X16)

93903-22420

$1.49

24

NUT, CAP (5MM)

94021-05000-0S

$1.49

25

BOLT, FLANGE (6X10)

96300-06010-07

Unavailable
