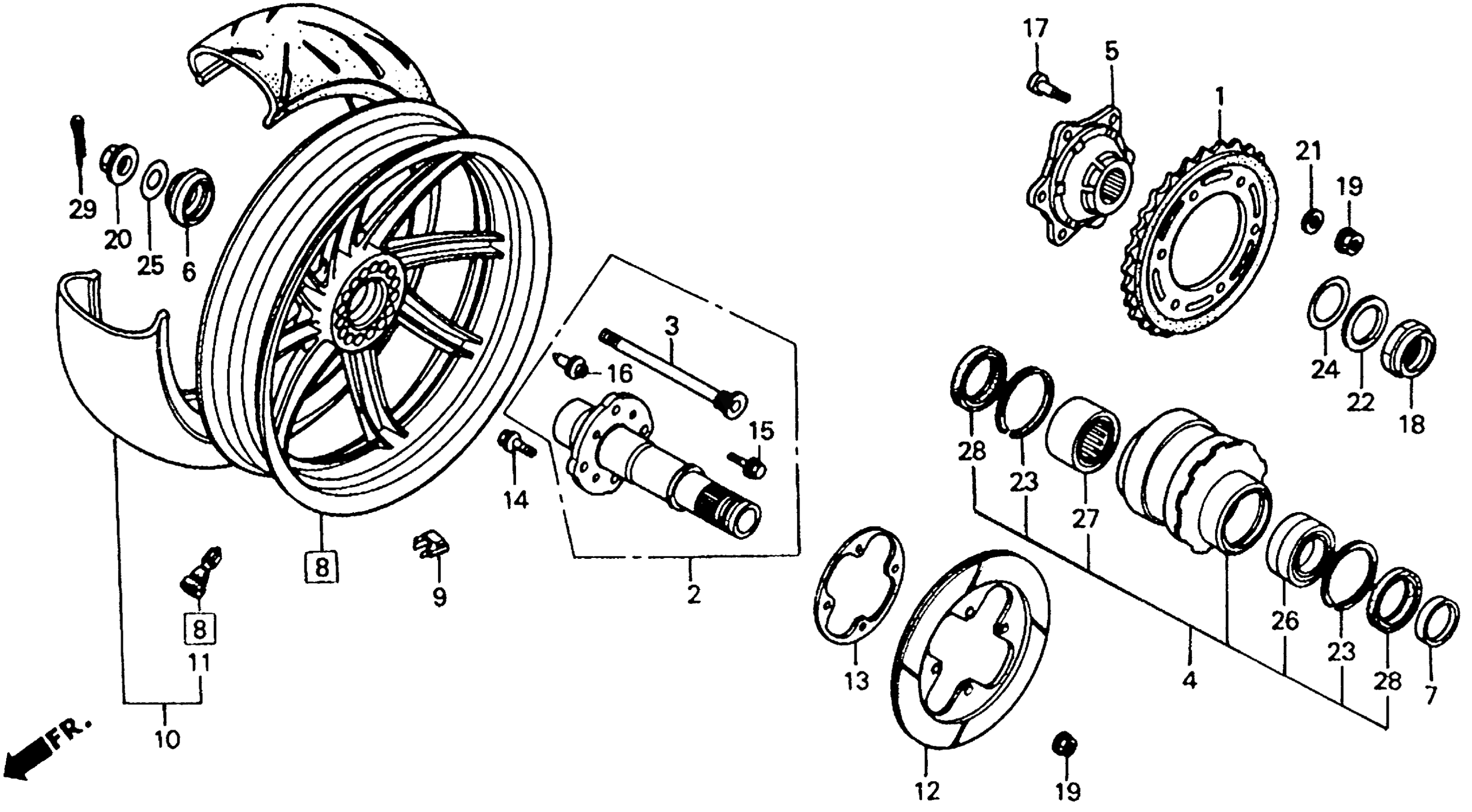

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (40T)

41201-MW4-000

Unavailable

2

AXLE, RR.

42300-MW4-000

Unavailable

3

BOLT, RR. AXLE

42302-MW4-000

Unavailable

4

HOLDER, BEARING

42500-MW4-000

Unavailable

5

FLANGE, FINAL DRIVEN

42605-KV3-950

Unavailable

6

SPACER, CENTERLOCK

42606-MW4-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42621-MW4-000

Unavailable

8

WHEEL SET, RR. This part replaces 42650-MW4-305.

42650-MW4-315

Unavailable

8

WHEEL SET, RR.

42650-MW4-315

Unavailable

9

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

9

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

9

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

9

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

10

TIRE ASSY., RR. (190/50ZR17) (D204) (DUNLOP) (NOT AVAILABLE)

42710-MW4-004

Unavailable

11

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

12

DISK, RR. BRAKE

43251-MW4-000

Unavailable

13

SPACER, RR. DISK

43252-MW4-000

Unavailable

14

BOLT, FLANGE (8X19)

90102-MW4-000

$4.80

15

BOLT, DRIVE PIN

90113-KV3-950

Unavailable

16

PIN, DRIVE

90114-MR7-000

Unavailable

17

BOLT, SPROCKET

90120-MR8-000

Unavailable

18

NUT, LOCK (38MM)

90306-KV3-950

Unavailable

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

20

NUT, RR. AXLE

90316-MR7-000

Unavailable

21

WASHER (8MM)

90465-MC4-000

$2.51

22

WASHER, CONICAL SPRING (38MM)

90501-KV3-951

Unavailable

23

CIRCLIP (INNER) (62MM)

90651-ML0-731

$5.98

24

SHIM, DRIVEN FLANGE

90653-MR7-000

Unavailable

25

WASHER, RR. AXLE

90656-MR7-000

Unavailable

26

BEARING, RADIAL BALL (6908LU)

91061-ML0-731

$47.56

27

BEARING, RR. AXLE NEEDLE

91062-MR7-003

$42.42

28

DUST SEAL (50X62X5)

91284-MR7-003

$12.78

29

PIN, COTTER (2.5MM)

94201-25400

Unavailable
