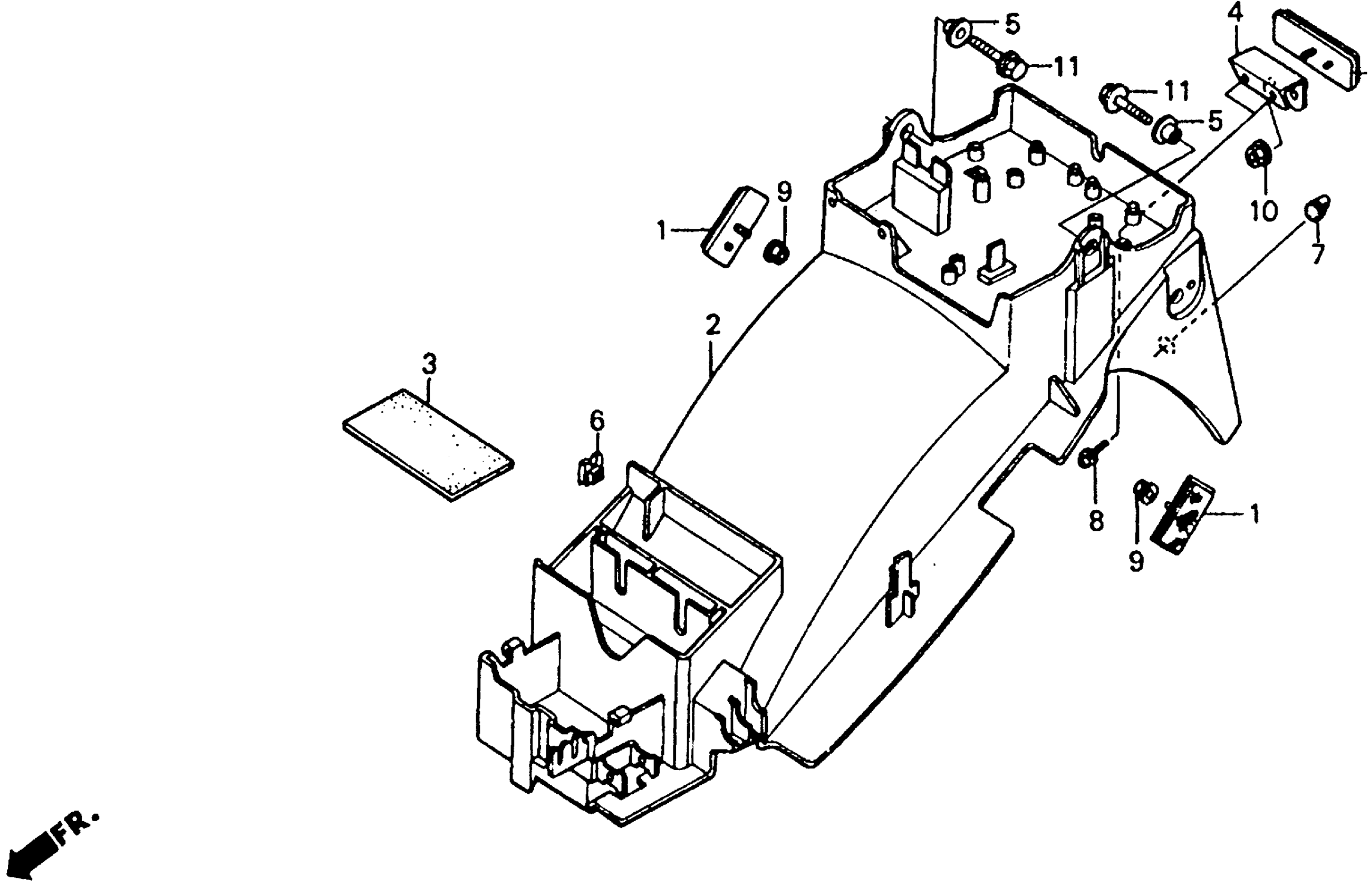

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

2

FENDER, RR.

80100-MW4-670

Unavailable

3

RUBBER, BATTERY BOX HEAT GUARD

80103-MW4-000

Unavailable

4

STAY, REFLECTOR

80108-MW4-610

Unavailable

5

COLLAR, METER

83119-GT4-000

$5.36

6

NUT, CLIP (6MM)

90305-GK8-000

$2.39

7

PLUG, CONE TYPE

90899-422-610

$1.89

8

SCREW-WASHER (5X10)

93891-05010-07

$1.49

9

NUT, FLANGE (5MM)

94050-05000

$1.49

10

NUT, FLANGE (5MM)

94050-05080

$1.49

11

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
