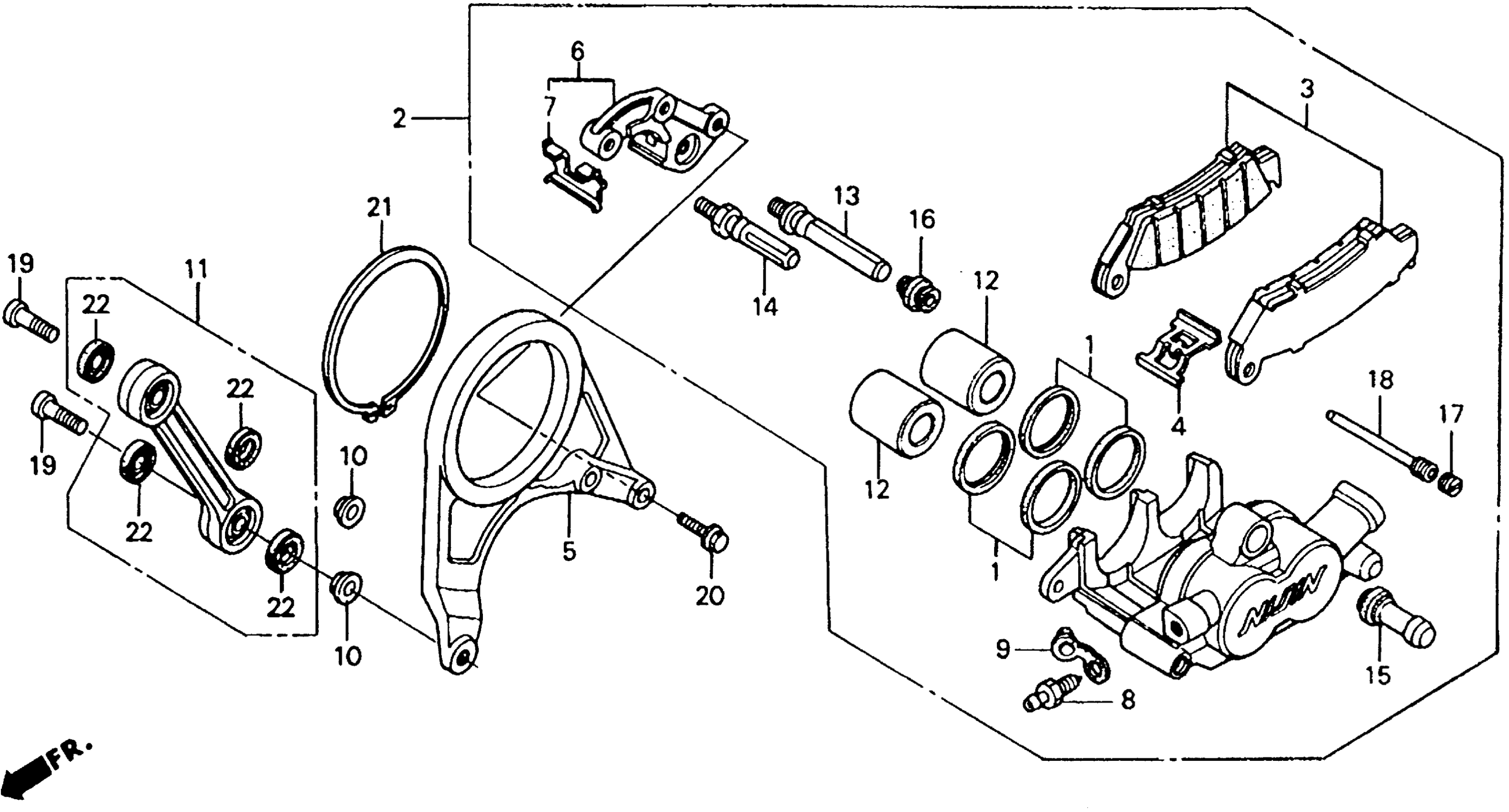

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-GE2-405

$11.41

2

CALIPER ASSY., RR. (NISSIN)

43100-MW4-006

Unavailable

3

PAD SET, RR. BRAKE

43105-MT7-405

Unavailable

4

SPRING, PAD

43108-MY6-671

$5.28

5

BRACKET, RR. BRAKE

43111-MW4-000

Unavailable

6

STAY, RR. BRAKE

43115-MR7-026

Unavailable

7

RETAINER (NISSIN)

43116-MR7-006

Unavailable

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

COLLAR, TORQUE LINK

43433-MW4-000

Unavailable

11

ROD ASSY. A, RR. BRAKE TORQUE

43440-MR7-000

Unavailable

12

PISTON

45107-MN5-006

$37.88

13

BOLT A, PIN

45131-HA5-672

$15.44

14

BOLT, PIN

45131-166-016

$7.63

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

16

BOOT B

45133-MA3-006

$5.46

17

PLUG, PIN

45203-MG3-016

$5.12

18

PIN, HANGER

45215-KA3-732

$11.52

19

BOLT, SOCKET (10X30)

90122-MW4-000

Unavailable

20

BOLT, FLANGE (8X20)

90131-GW0-750

$5.12

21

CIRCLIP (OUTER) (75MM)

90652-ML0-731

$10.43

22

DUST SEAL (13X18X3) This part replaces 91272-KA3-711.

91272-KA3-712

Unavailable

22

DUST SEAL (13X18X3)

91272-KA3-712

Unavailable
