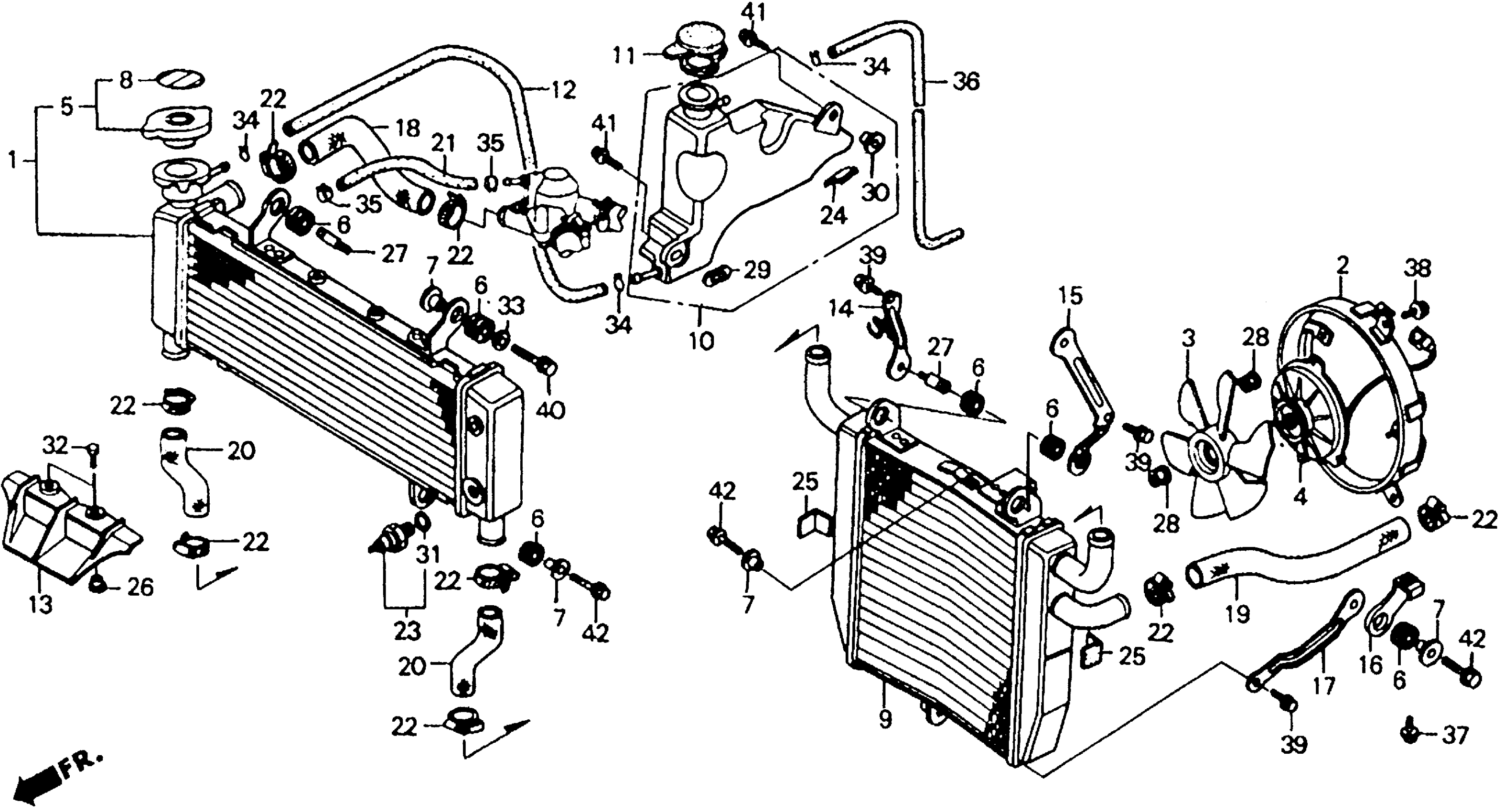

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 RADIATOR Diagram

#

Description
Price

1

RADIATOR (UPPER) (TOYO)

19010-MW4-671

Unavailable

2

SHROUD

19015-MW4-661

Unavailable

3

FAN, COOLING

19020-MG8-003

$62.31

4

MOTOR ASSY., FAN (MATSUSHITA)

19030-MW4-003

Unavailable

5

CAP, RADIATOR This part replaces 19045-MV9-921.

19037-GEE-710

$30.28

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

7

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.48

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) This part replaces 19055-MV9-921.

19055-MV9-881

$9.22

9

RADIATOR (TOYO)

19060-MW4-003

Unavailable

10

TANK, RADIATOR RESERVE

19101-MW4-000

Unavailable

11

CAP, RESERVE TANK

19104-MB0-700

$12.16

12

TUBE, OVERFLOW (5.3X370)

19107-MW4-000

Unavailable

13

PLATE, AIR GUIDE

19125-MW4-000

Unavailable

14

STAY, R. RADIATOR (LOWER)

19131-MW4-000

Unavailable

15

STAY, L. RADIATOR (LOWER/UPPER)

19132-MW4-000

Unavailable

16

STAY, CENTER RADIATOR (LOWER)

19134-MW4-000

Unavailable

17

STAY, RADIATOR (LOWER)

19135-MR8-000

Unavailable

18

HOSE, RADIATOR (UPPER)

19501-MW4-000

Unavailable

19

HOSE, RADIATOR (LOWER)

19502-MW4-000

Unavailable

20

HOSE, RADIATOR JOINT

19503-MW4-000

Unavailable

21

TUBE, RADIATOR BREATHER

19508-MW4-000

Unavailable

22

CLAMP, HOSE (30-37MM)

19516-GAG-003

$14.40

23

SWITCH ASSY., THERMO

37760-MR7-601

Unavailable

24

RUBBER, OIL TANK

55101-GZ9-000

Unavailable

25

PROTECTOR, HOSE

64233-MR7-300

$5.67

26

COLLAR, FENDER COVER (NOT AVAILABLE)

80112-443-850

Unavailable

27

BOLT, SPECIAL (6X22)

90119-ML7-000

Unavailable

28

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

29

WASHER (6X9)

90513-323-000

$1.84

30

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

31

O-RING (13.5X1.4)

91307-PH7-660

$2.83

31

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

32

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

33

WASHER, PLAIN (6MM)

94103-06000

$1.49

34

CLIP, TUBE (B10)

95002-02100

$1.90

35

CLAMP, TUBE (D10)

95002-41000-08

$2.41

36

BULK HOSE, VACUUM (5.5X3000) (5.3X500)

95005-55003-20M

$34.09

37

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

38

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

39

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

40

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

41

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

42

BOLT, FLANGE (6X22)

96300-06022-00

$1.49
