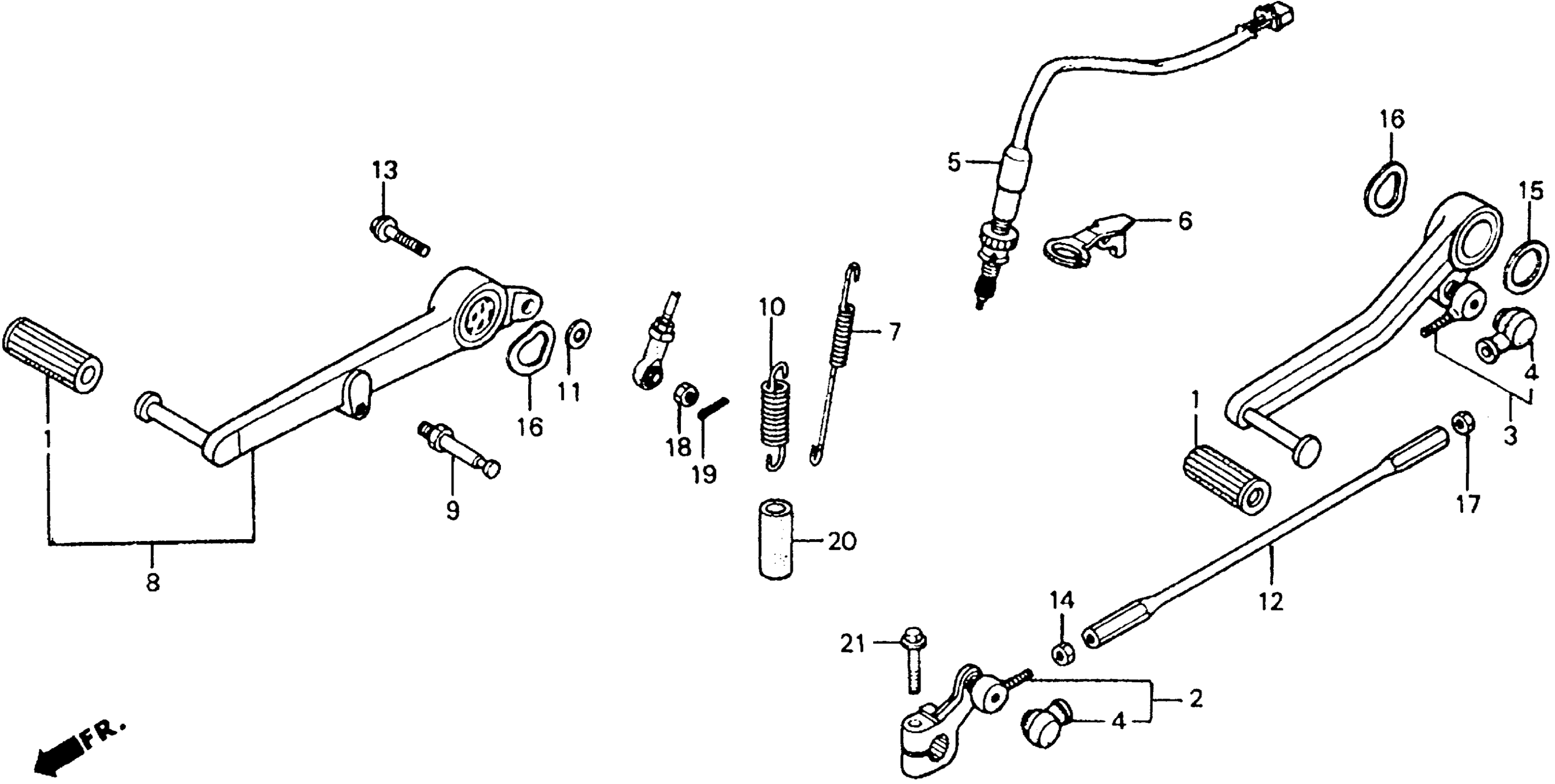

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 PEDAL Diagram

#

Description
Price

1

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

2

ARM, GEARSHIFT

24710-MR7-000

Unavailable

3

PEDAL, GEARSHIFT

24720-MW4-000

Unavailable

4

COVER, DUST

24724-422-000

$6.68

5

SWITCH ASSY., RR. STOP This part replaces 35350-MW4-000.

35350-MR5-405

$19.28

6

STAY, STOP SWITCH

35355-MR7-000

Unavailable

7

SPRING, STOP SWITCH

35357-KE7-000

Unavailable

8

PEDAL, RR. BRAKE

46501-MR7-300

Unavailable

9

PIN, BRAKE PEDAL

46502-MR7-000

Unavailable

10

SPRING ASSY., BRAKE PEDAL RETURN

46515-MR7-000

Unavailable

11

WASHER, PLAIN

66853-SA4-000

Unavailable

12

BAR, GEARSHIFT

90065-MW4-000

Unavailable

13

BOLT, FLANGE (8X32)

90118-MR7-690

Unavailable

14

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

15

WASHER, THRUST (17.2MM)

90403-KV3-830

Unavailable

16

WASHER, WAVE (17.5MM)

90505-MR7-000

$5.92

17

NUT, HEX. (6MM)

94001-06020-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

TUBE (13X15X100) This part replaces 95003-43004-10.

95003-43010-10S

Unavailable

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
