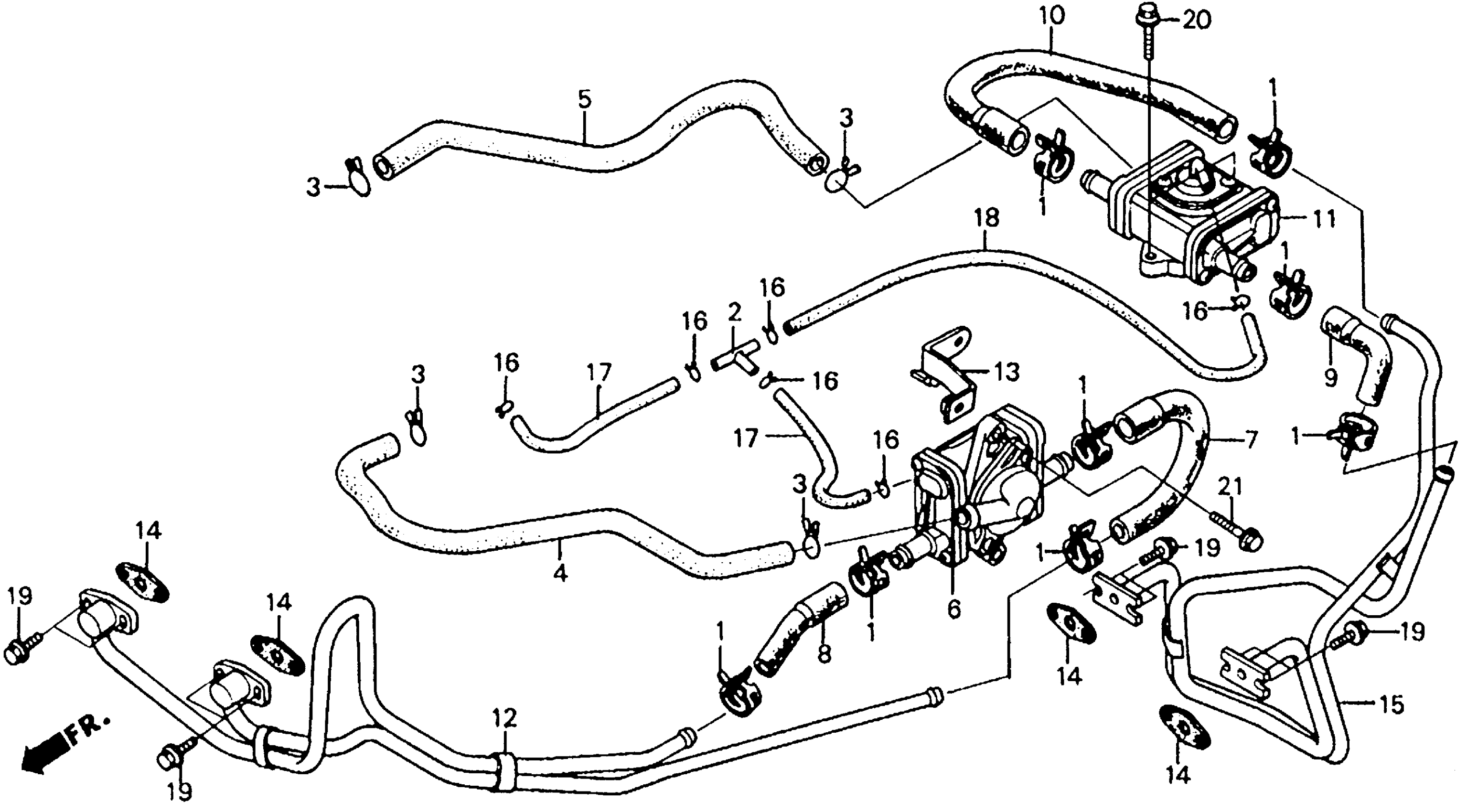

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 PAIR CONTROL VALVE Diagram

#

Description
Price

1

CLIP B, FUEL HOSE

16968-MC7-000

$6.89

2

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

3

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

4

HOSE, FR. AIR SUCTION VALVE

17460-MW4-660

Unavailable

5

HOSE, RR. AIR SUCTION VALVE

17470-MW4-660

Unavailable

6

CONTROL VALVE ASSY., PULSE SECONDARY AIR INJECTION

18610-MW4-661

Unavailable

7

HOSE A, AIR SUCTION VALVE

18611-MW4-660

Unavailable

8

HOSE B, AIR SUCTION VALVE

18612-MW4-660

Unavailable

9

HOSE C, AIR SUCTION VALVE

18613-MW4-660

Unavailable

10

HOSE D, AIR SUCTION VALVE

18614-MW4-660

Unavailable

11

CONTROL VALVE ASSY., PULSE SECONDARY AIR INJECTION

18620-MW4-661

Unavailable

12

PIPE, FR. AIR

18640-MW4-660

Unavailable

13

STAY, FR. AIR SUCTION VALVE

18645-MW4-660

Unavailable

14

GASKET, AIR FEED PIPE

18647-MW4-660

Unavailable

15

PIPE, RR. AIR

18650-MW4-660

Unavailable

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

BULK HOSE, VACUUM (3.5X8000) (3.5X180)

95005-35008-10M

$105.82

18

BULK HOSE, VACUUM (3.5X8000) (3.5X360)

95005-35008-10M

$105.82

19

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

20

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

21

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
