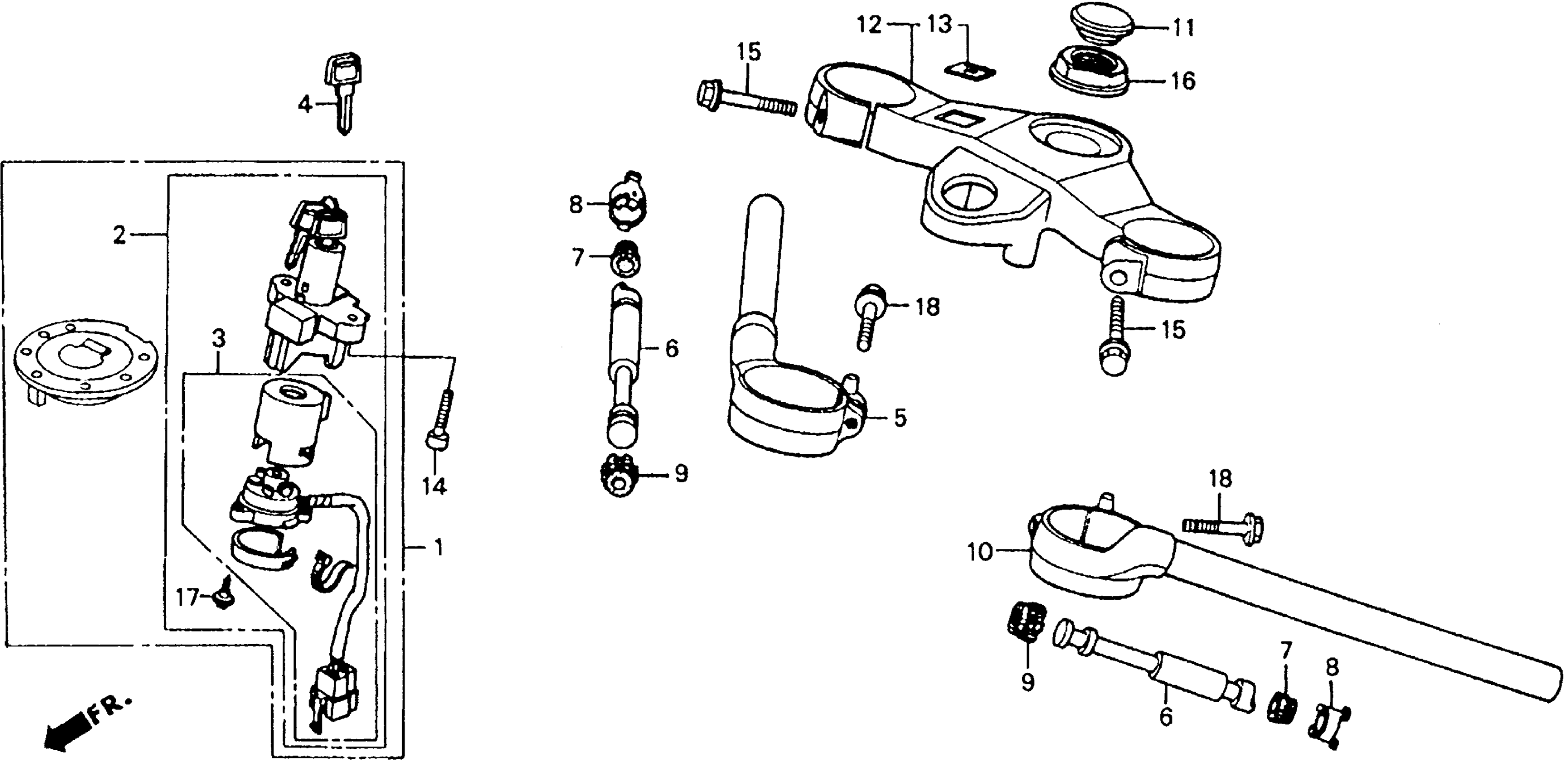

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET

35010-MW4-600

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35100-MW4-600

Unavailable

3

BASE, CONTACT

35101-MW4-000

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

5

HANDLEBAR, R.

53100-MW4-000

Unavailable

6

WEIGHT B, HANDLE This part replaces 53104-KT7-000.

53104-KT7-010

$21.27

6

WEIGHT B, HANDLE

53104-KT7-010

$21.27

7

RUBBER, HANDLE WEIGHT (B)

53107-MJ0-000

$3.77

8

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

9

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

10

HANDLEBAR, L.

53150-MW4-000

Unavailable

11

CAP, STEERING STEM NUT

53232-MW4-000

Unavailable

12

BRIDGE, FORK TOP

53300-MW4-000

Unavailable

13

EMBLEM, WING MARK

86150-MR8-300

Unavailable

14

BOLT, SOCKET (8MM)

90100-MN8-910

$5.05

15

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

16

NUT, STEERING STEM

90304-MR7-000

$29.98

17

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

18

BOLT, FLANGE (8X35)

95701-08035-07

$1.49
