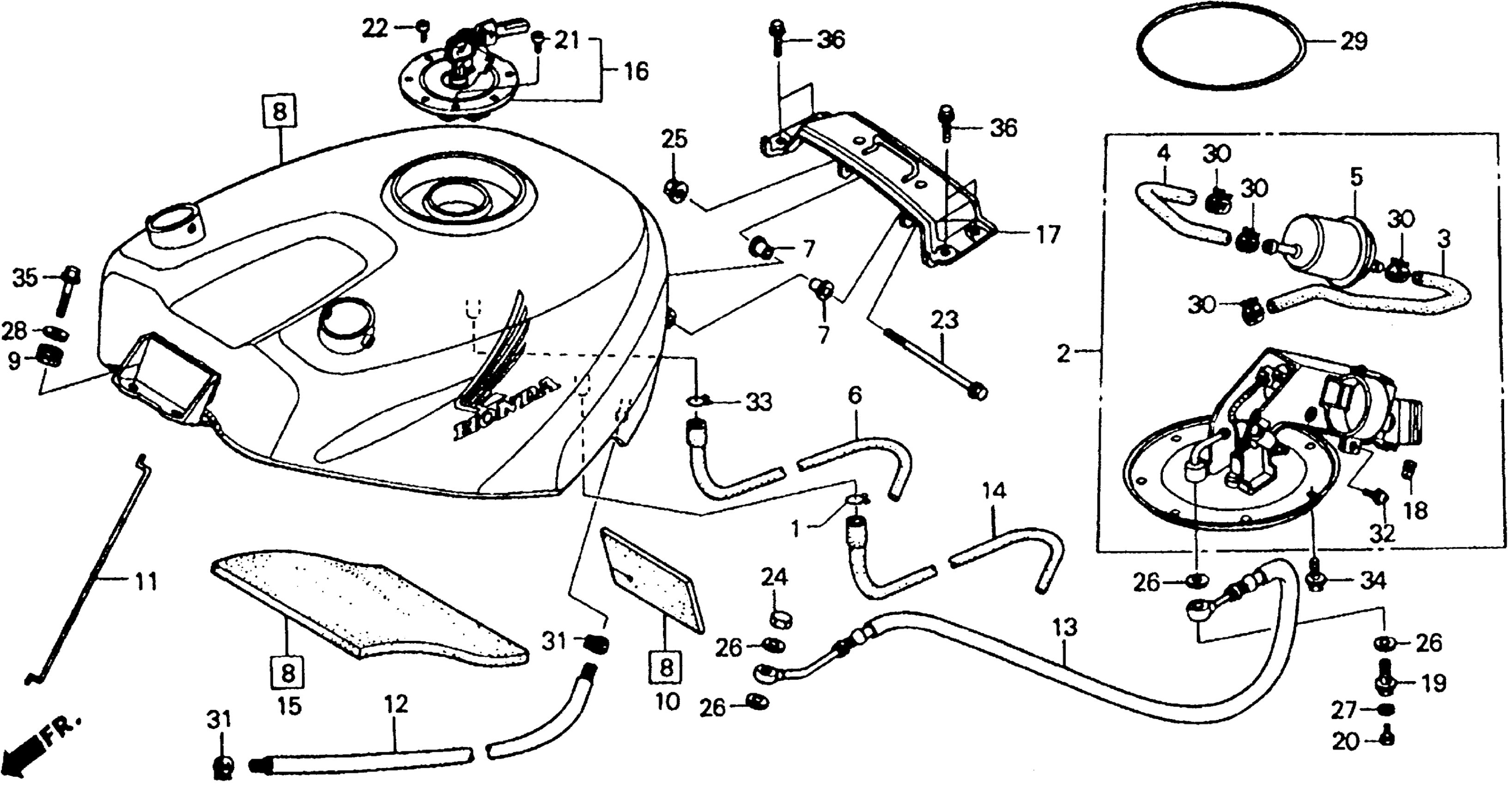

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FUEL TANK Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

PUMP UNIT ASSY., FUEL This part replaces 16700-MW4-000.

16700-MW4-850

Unavailable

2

PUMP UNIT ASSY., FUEL

16700-MW4-850

Unavailable

3

HOSE, FUEL PUMP (A)

16711-MW4-000

Unavailable

4

HOSE, FUEL PUMP (B)

16712-MW4-000

Unavailable

5

FILTER, FUEL

16900-MT7-000

Unavailable

6

TUBE, DRAIN

16956-MW4-000

Unavailable

7

CUSHION, FUEL TANK PIVOT

17506-MB1-000

$4.40

8

TANK SET, FUEL (TYPE1) (WL)

17506-MW4-000ZA

Unavailable

9

RUBBER, FUEL TANK SETTING

17512-MR7-000

Unavailable

10

RUBBER, FUEL TANK

17515-MW4-300

Unavailable

11

ROD, TANK OPEN

17518-MW4-000

Unavailable

12

HOSE, FUEL RETURN

17525-MW4-000

Unavailable

13

HOSE, FUEL FEED

17527-MW4-000

Unavailable

14

TUBE, DRAIN

17531-MW4-000

Unavailable

15

MAT, FUEL TANK

17570-MW4-300

Unavailable

16

CAP COMP.,FUEL FILL This part replaces 17620-MT4-010.

17620-MT4-040

$266.95

16

CAP COMP.,FUEL FILL This part replaces 17620-MT4-020.

17620-MT4-040

$266.95

17

PLATE, SEAT CROSS

50202-MW4-000

Unavailable

18

RUBBER C, STOPPER

50355-434-000

$4.45

19

BOLT, BANJO (12MM)

90008-PP4-E02

$16.44

20

BOLT, SEALING (6MM)

90009-PP4-E01

$6.54

21

BOLT, SOCKET (4X6)

90073-MT4-000

$3.83

22

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

23

BOLT, TANK HINGE

90135-MS2-000

$6.22

24

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

25

NUT, U (6MM)

90301-473-003

$4.07

26

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

27

WASHER, SEALING (6MM)

90430-PD6-003

$4.01

28

WASHER, FLAT (20MM) This part replaces 90506-500-000.

91412-538-000

Unavailable

28

WASHER, FLAT (20MM) This part replaces 91412-500-000.

91412-538-000

Unavailable

28

WASHER, FLAT (20MM)

91412-538-000

Unavailable

29

O-RING (109X5)

91305-MW4-000

Unavailable

30

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

31

CLAMP, FUEL HOSE (15.5) This part replaces 91406-SA7-931.

91406-SL0-931

$12.00

31

CLAMP, FUEL HOSE (15.5)

91406-SL0-931

$12.00

32

SCREW-WASHER (4X12)

93893-04012-08

$1.49

33

CLIP, TUBE (B12)

95002-02120

$2.00

34

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

35

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

36

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
