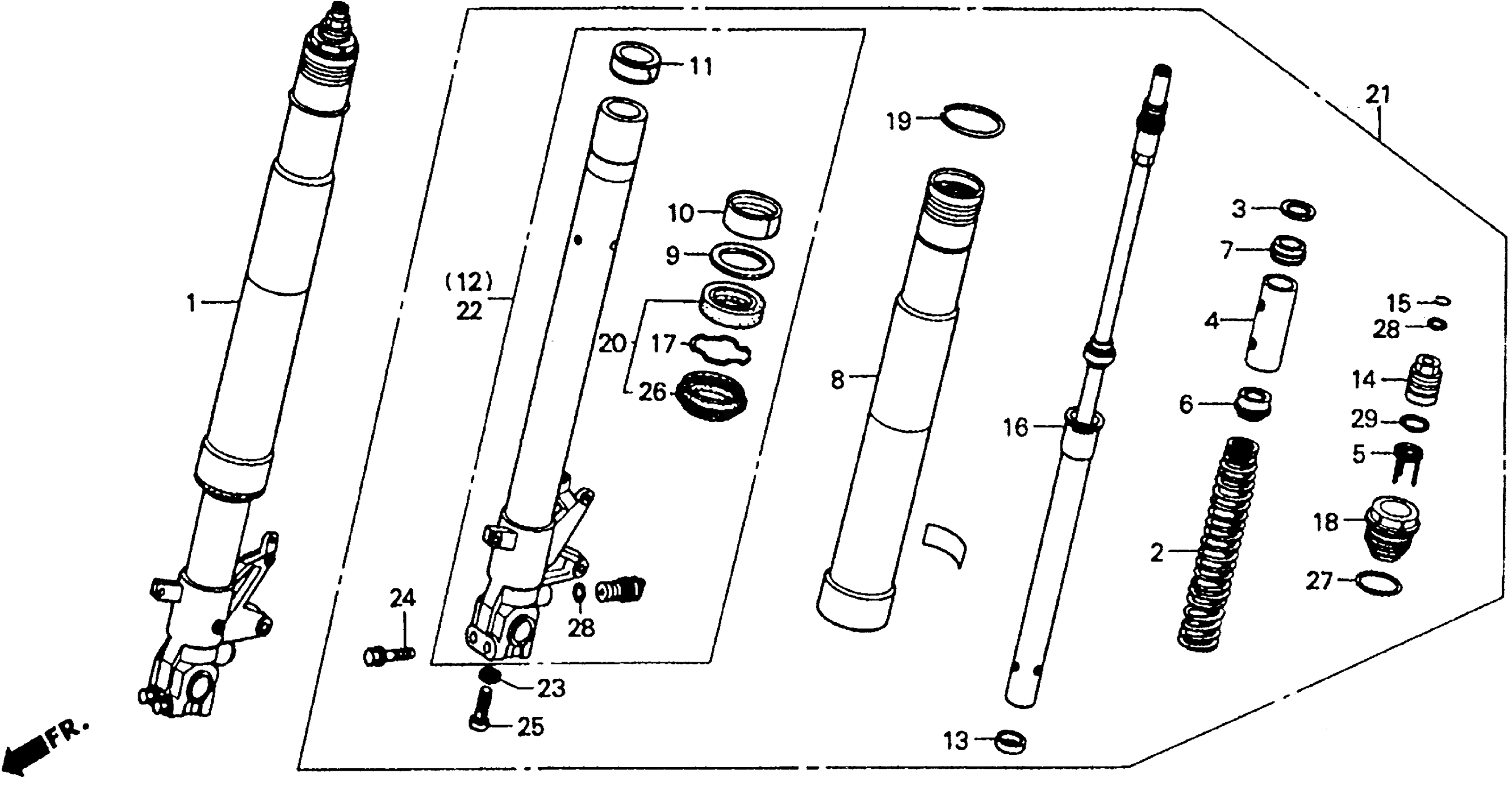

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MW4-671

Unavailable

2

SPRING, FR. FORK

51401-MW4-003

Unavailable

3

SEAT, SPRING

51403-MA0-771

$5.20

4

COLLAR, SPRING

51403-MW4-003

Unavailable

5

PLATE, SPRING ADJUSTER

51404-MT7-003

Unavailable

6

PLATE, SPRING JOINT

51404-MW4-003

Unavailable

7

STOPPER, SPRING SEAT

51406-MW4-003

$7.90

8

TUBE (OUTER)

51410-MW4-003

Unavailable

9

RING, BACK-UP

51412-MB4-003

$9.65

10

BUSH, GUIDE

51414-MW4-003

$21.64

11

BUSH, SLIDER

51415-MW4-003

Unavailable

12

CASE, R. SLIDE

51420-MW4-003

Unavailable

13

PLATE, CENTERING

51421-MW4-003

$9.21

14

ADJUSTER, SPRING

51422-MT7-003

$138.15

15

RING B, STOPPER

51423-MT7-003

Unavailable

16

DAMPER, FR.

51430-MW4-003

Unavailable

17

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

18

BOLT, FR. FORK

51454-MW4-003

Unavailable

19

RING, STOPPER

51455-MW4-003

$12.19

20

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

21

FORK ASSY., L. FR. (SHOWA)

51500-MW4-671

Unavailable

22

CASE, L. SLIDE

51520-MW4-003

Unavailable

23

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

24

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

25

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

26

DUST SEAL

91254-MM8-003

$17.88

27

O-RING (42.2X2.4)

91258-GF4-003

$5.90

28

O-RING (13.8X2.4) (NOK) This part replaces 91311-MR7-003.

91311-PH7-003

$2.28

28

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

29

O-RING (23.7X2.4)

91351-MT7-003

$7.11
