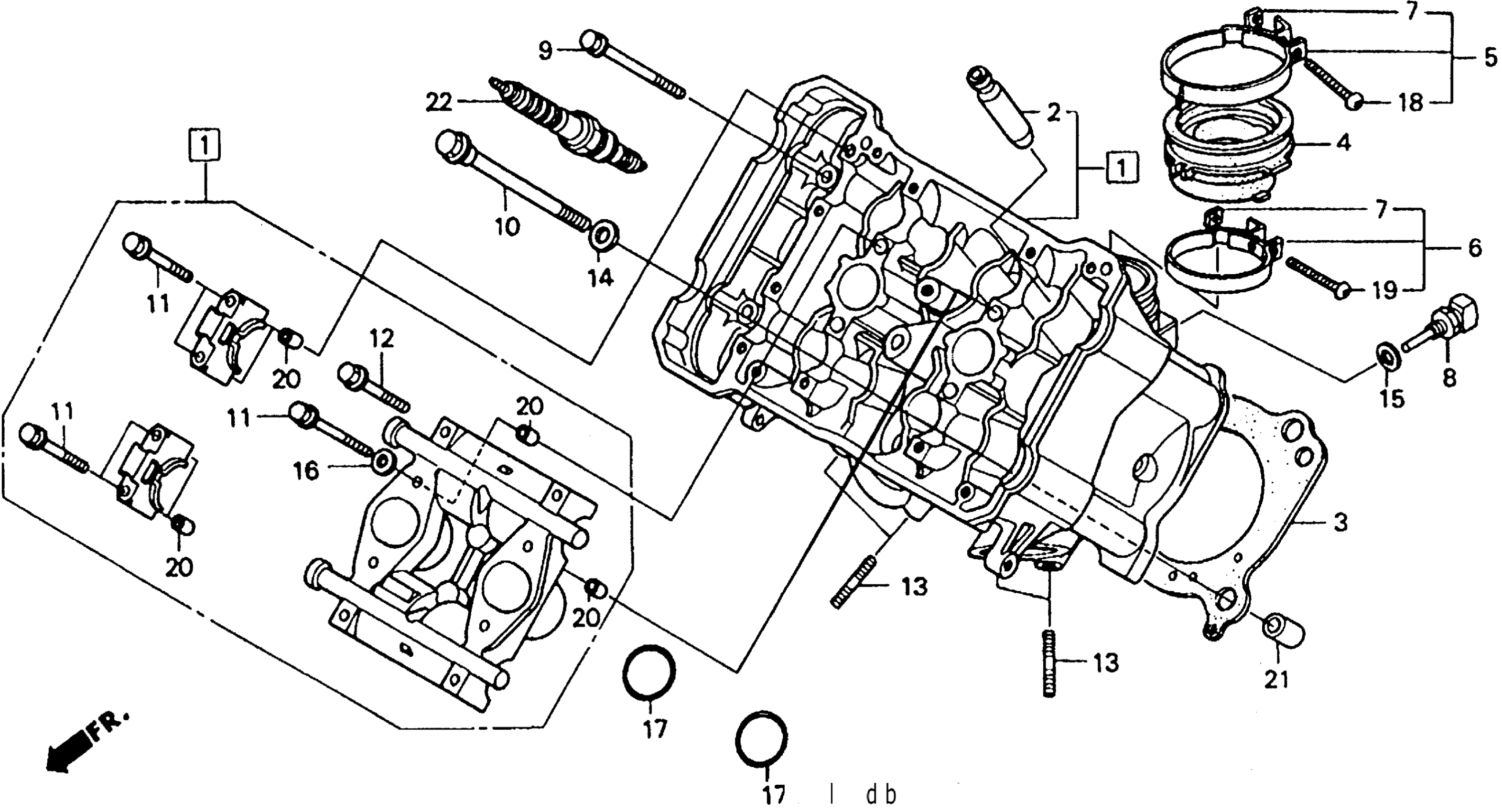

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., FR.

12010-MW4-660

Unavailable

2

GUIDE, VALVE

12204-MW4-305

Unavailable

3

GASKET, FR. CYLINDER HEAD This part replaces 12251-MW4-000.

12251-MW4-003

Unavailable

3

GASKET, FR. CYLINDER HEAD

12251-MW4-003

Unavailable

4

INSULATOR, THROTTLE BODY

16211-MW4-000

Unavailable

5

BAND A, INSULATOR

16217-MW4-000

$5.53

6

BAND B, INSULATOR

16218-MV9-670

$11.02

7

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

8

SENSOR, ENGINE COOLANT TEMPERATURE

36151-MC7-003

Unavailable

9

BOLT, FLANGE (6X77)

90004-PR0-000

$6.13

10

BOLT, FLANGE (9X98)

90008-ML7-920

Unavailable

11

BOLT, FLANGE (6X48)

90018-425-000

$3.35

12

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

13

BOLT, STUD (6X22)

90035-MW4-000

$3.34

14

WASHER (9MM)

90445-MM4-000

$4.30

15

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

17

O-RING (26.2X1.9)

91301-MW4-004

Unavailable

18

SCREW, PAN (5X25)

93500-05025-0G

$1.49

19

SCREW, PAN (5X28)

93500-05028-0G

$1.49

20

PIN, DOWEL (8X14)

94301-08140

$2.25

21

PIN, DOWEL (12X20)

94301-12200

$2.29

22

SPARK PLUG (CR9EHVX-9) (NGK)

98059-5991F

$9.67
