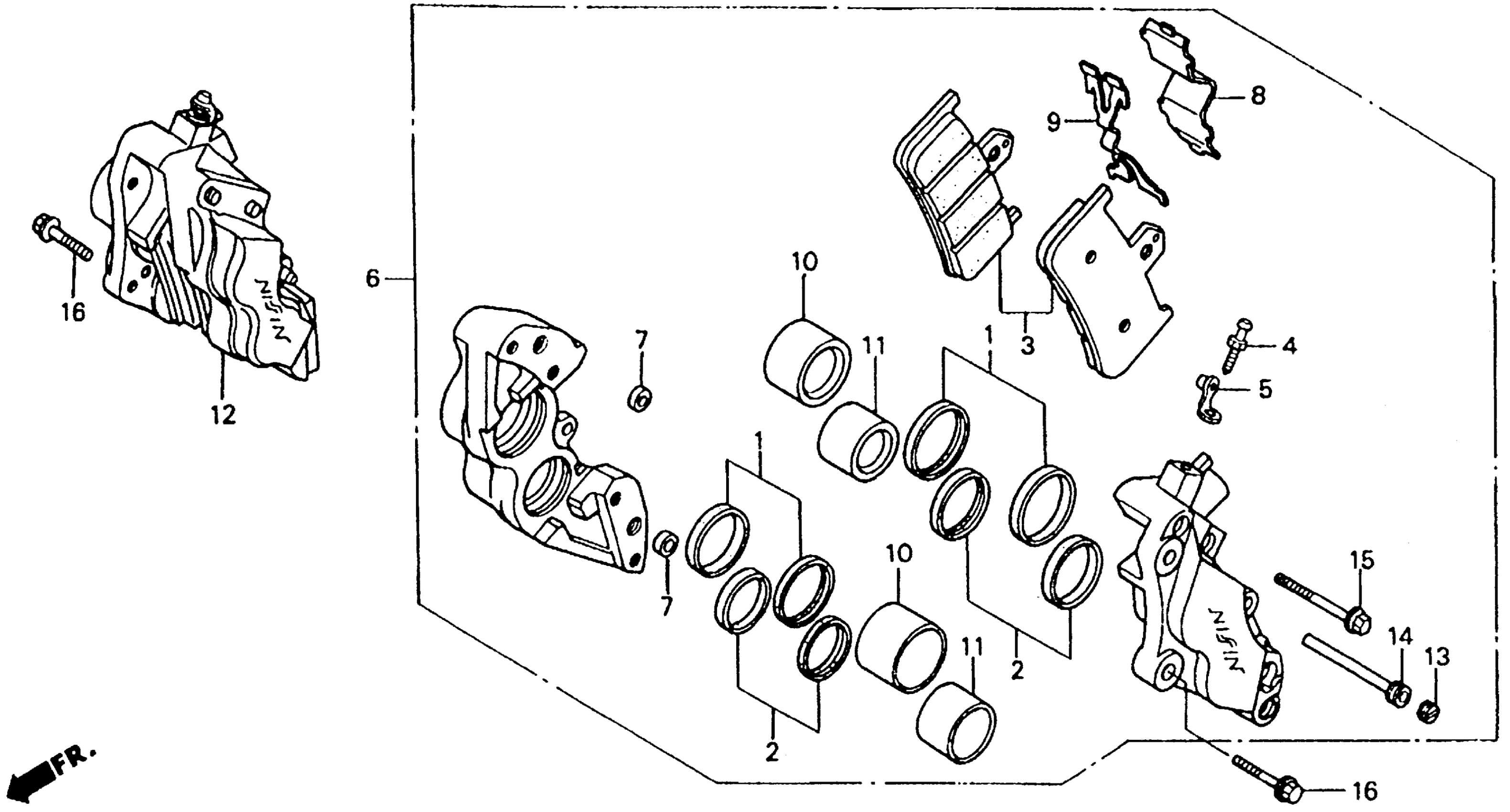

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-KV3-405

$12.11

SEAL SET, PISTON

06451-KV3-406

$12.11

PAD SET, FR.

06455-MW4-405

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CALIPER ASSY., L. FR. BRAKE (NISSIN)

45100-MW4-006

Unavailable

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

COVER

45104-MR7-006

Unavailable

SPRING, PAD (NISSIN)

45106-MW0-016

Unavailable

PISTON A (NISSIN)

45117-MR7-006

$54.33

PISTON (NISSIN)

45117-MW0-006

Unavailable

CALIPER ASSY., R. FR. BRAKE (NISSIN)

45200-MW4-006

Unavailable

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-ML7-922

$10.67

BOLT, TORX

90107-KV3-701

$6.54

BOLT, FLANGE (8X32)

90107-MT3-003

$4.49
