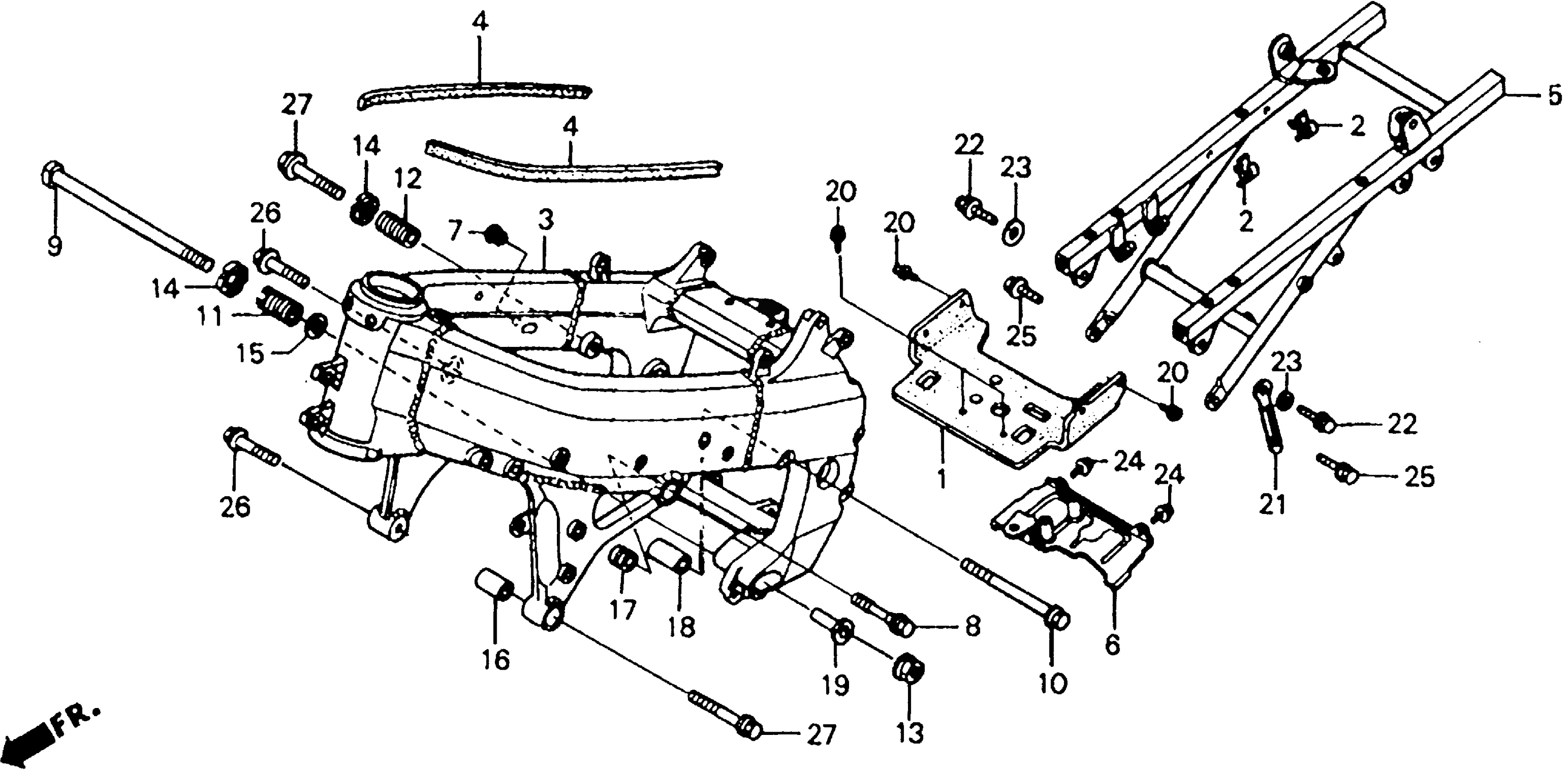

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 FRAME Diagram

#

Description
Price

1

RUBBER, RR. CYLINDER HEAD HEAT GUARD

17504-MW4-000

Unavailable

2

CLIP, THROTTLE WIRE (NOT AVAILABLE) This part replaces 17517-MW4-000.

17926-S2R-003

Unavailable

3

FRAME

50100-MW4-000

Unavailable

4

RUBBER, MAIN PIPE

50199-MW4-300

Unavailable

5

RAIL, SEAT

50240-MW4-000

Unavailable

6

GUARD, RR. HEAT

50281-MW4-660

Unavailable

7

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.84

8

BOLT, FLANGE (10X70)

90101-MW4-000

Unavailable

9

BOLT A, RR. ENGINE HANGER (LOWER)

90104-MT4-000

Unavailable

10

BOLT, FLANGE (10X110)

90117-MN1-670

$7.50

11

BOLT B, RR. ENGINE HANGER (LOWER)

90119-MW4-000

Unavailable

12

BOLT B, RR. ENGINE HANGER (UPPER)

90125-MR7-000

Unavailable

13

NUT, FLANGE (12MM)

90306-181-761

$6.08

14

NUT, LOCK (22X2.0)

90310-MR7-000

$26.75

15

WASHER, TENSION ROD

90501-KAB-000

$5.20

16

COLLAR A, ENGINE HANGER

90501-MW4-000

Unavailable

17

COLLAR B, ENGINE HANGER

90502-MW4-000

Unavailable

18

COLLAR C, ENGINE HANGER

90503-MW4-000

Unavailable

19

COLLAR D, ENGINE HANGER

90504-MW4-000

Unavailable

20

CLIP, BODY COVER

90683-GR1-003

$2.92

21

CLIP, WIRE HARNESS

91404-VM6-000

$6.25

22

BOLT, CAP (8X25)

92501-08025-0A

$3.80

23

WASHER, PLAIN (8MM)

94102-08000

$1.49

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (8X20)

96300-08020-00

$1.57

26

BOLT, FLANGE (10X40)

96400-10040-00

$2.41

27

BOLT, FLANGE (10X70)

96400-10070-00

Unavailable
