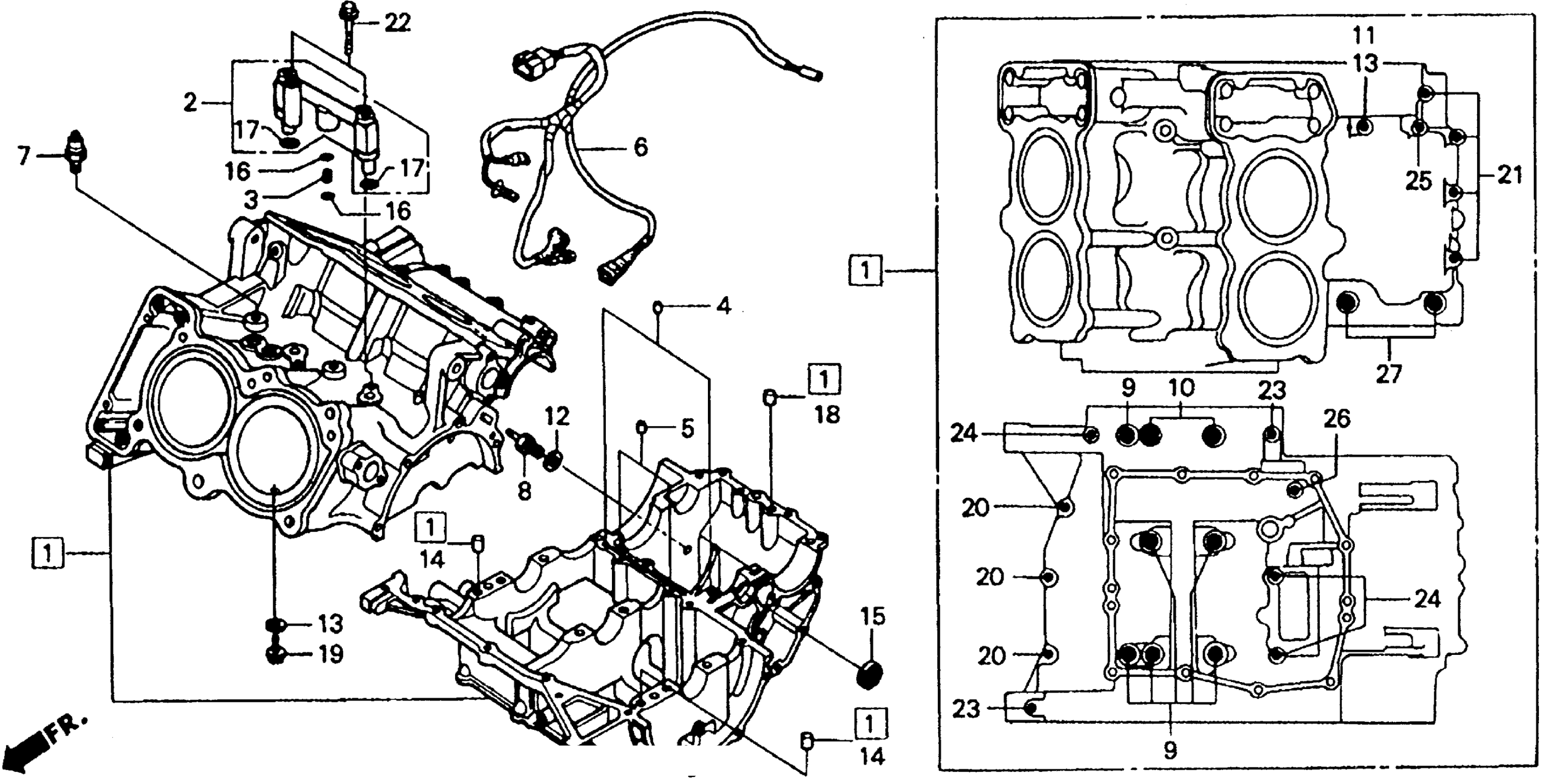

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MW4-020

Unavailable

2

JET ASSY., OIL

15510-MW4-000

Unavailable

3

COLLAR, OIL JET (10X19.3)

15513-MW4-000

Unavailable

4

ORIFICE (1.2MM)

15515-KT8-000

$7.72

5

JET, OIL (0.7MM)

15516-MW4-000

Unavailable

6

SUB-HARNESS, ENGINE

32109-MW4-000

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

9

BOLT, FLANGE (9X90)

90014-MW4-003

Unavailable

10

BOLT, FLANGE (9X105)

90016-MW4-003

Unavailable

11

BOLT, FLANGE (6X85)

90016-PF4-000

$8.66

12

WASHER, SEALING (10MM)

90443-MB0-000

$2.92

13

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

14

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

15

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

16

O-RING (7.5X1.5)

91302-HB3-004

$2.18

17

O-RING (12.5X2.4)

91305-PH7-003

$3.00

18

PIN, DOWEL (8X14)

94302-08140

$2.25

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

21

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

22

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

23

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

24

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

25

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

26

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

27

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
