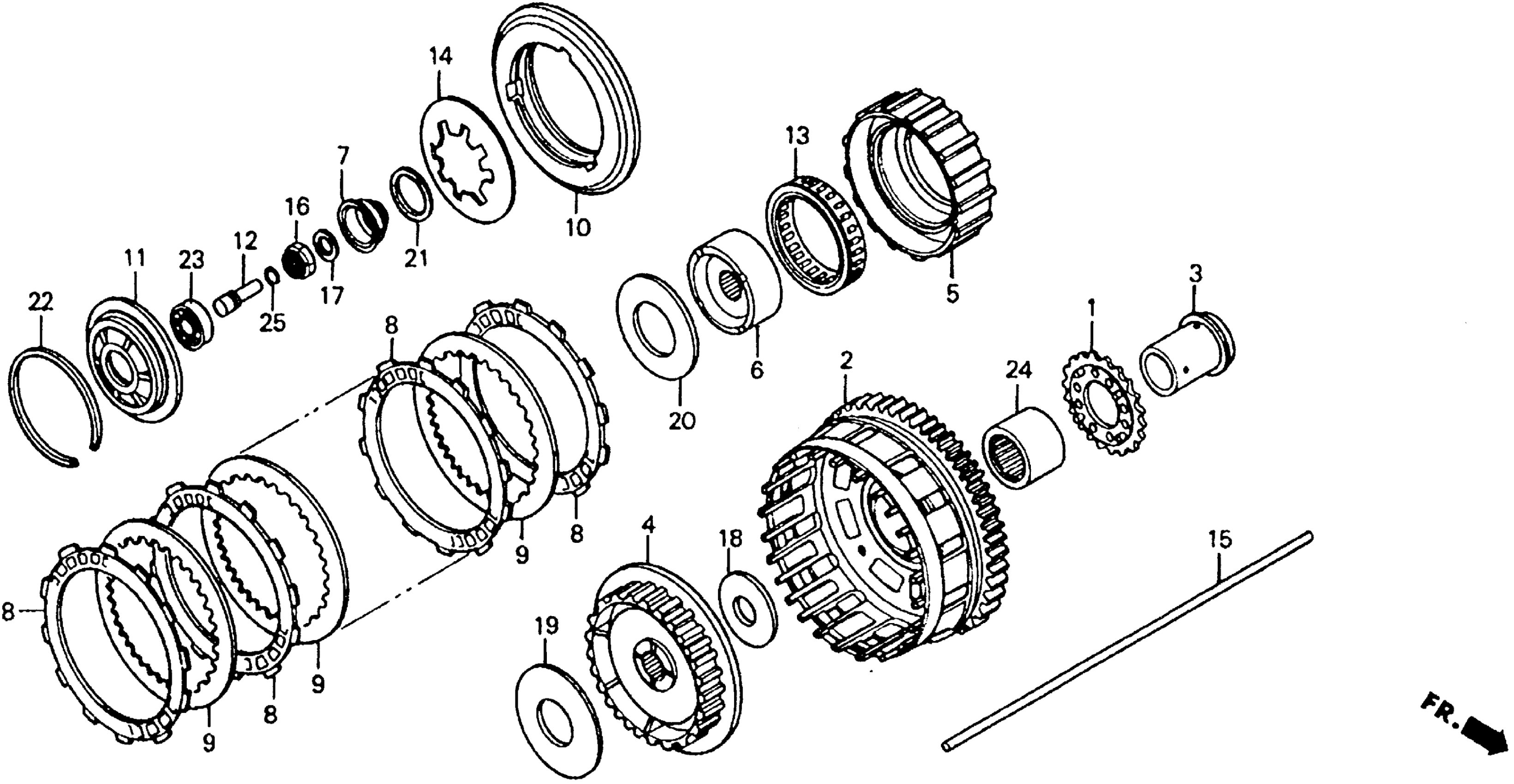

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE

15131-ML7-000

$40.05

2

CLUTCH (OUTER) (64T)

22100-MW4-000

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MT7-000

Unavailable

4

CENTER, CLUTCH

22120-MW4-000

Unavailable

5

CENTER B, CLUTCH

22131-MW4-000

Unavailable

6

INNER, ONE-WAY CLUTCH

22141-MW4-000

Unavailable

7

PLATE, SPRING SETTING

22151-MR7-000

Unavailable

8

DISK, CLUTCH FRICTION

22201-MT7-000

Unavailable

9

PLATE, CLUTCH This part replaces 22321-MB6-680.

22321-MG8-000

$15.44

9

PLATE, CLUTCH

22321-MG8-000

$15.44

10

PLATE, CLUTCH PRESSURE

22351-MW4-000

Unavailable

11

PLATE, CLUTCH LIFTER

22352-MT7-000

Unavailable

12

PIECE, CLUTCH JOINT

22366-MR8-000

Unavailable

13

CLUTCH, ONE-WAY (NIPPON SEIKO)

22425-MJ0-941

Unavailable

14

SPRING, CLUTCH

22441-MT7-000

Unavailable

15

ROD, CLUTCH LIFTER

22850-MW4-000

Unavailable

16

NUT, LOCK (22MM)

90231-MZ7-000

$11.54

17

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

18

WASHER (60X25X2)

90459-MM4-000

$10.73

19

WASHER (44X85X1.6)

90461-MJ0-000

Unavailable

20

WASHER (44X81X3)

90466-MR7-000

Unavailable

21

SHIM, PINION (45.5X51.5X1.5) (D)

90584-752-000

$11.46

22

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

23

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

24

BEARING, NEEDLE (35X42X30)

91024-MW3-671

$103.98

25

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
