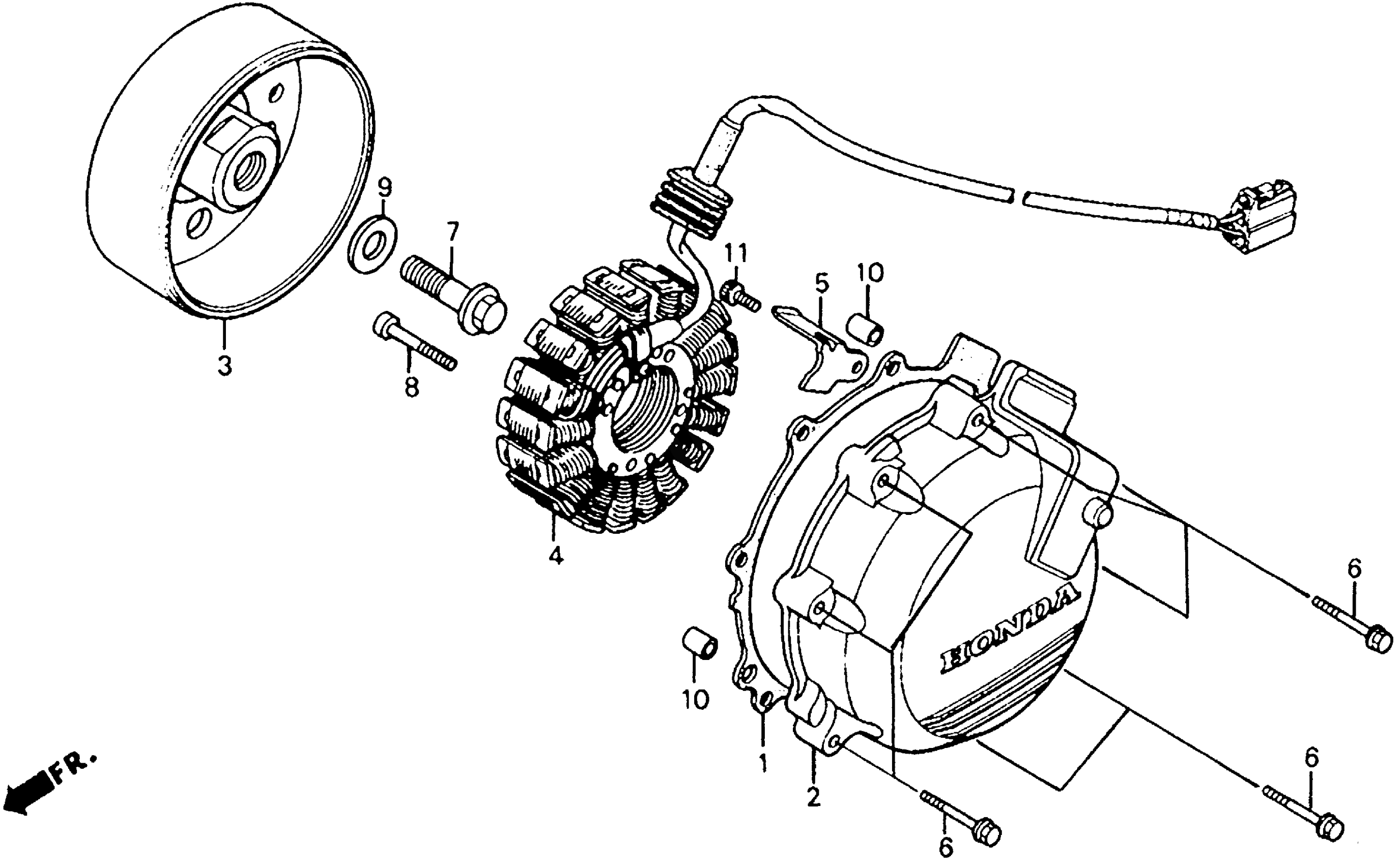

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 ALTERNATOR Diagram

#

Description

Price

1

GASKET, ALTERNATOR COVER This part replaces 11636-MW4-000.

11636-MBG-000

Unavailable

2

COVER, ALTERNATOR This part replaces 11641-MW4-000.

11641-MW4-010

Unavailable

2

COVER, ALTERNATOR

11641-MW4-010

Unavailable

3

FLYWHEEL (DENSO)

31110-MW4-004

Unavailable

4

STATOR (DENSO)

31120-MW4-004

Unavailable

5

CLAMP, ALTERNATOR WIRE This part replaces 31131-MR7-000.

31131-MR7-010

$5.08

6

BOLT, FLANGE (6X32) (NSHF) This part replaces 90001-GHB-690.

90004-GHB-690

$3.85

7

BOLT, FLANGE (10MM)

90023-MV9-670

$11.19

8

BOLT, TORX (6X38)

90085-MW4-000

$10.33

9

WASHER (10.5X27)

90405-KT7-000

$4.70

10

PIN, DOWEL (8X14)

94301-08140

$2.25

11

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.

90016-58G-A00

$2.90
