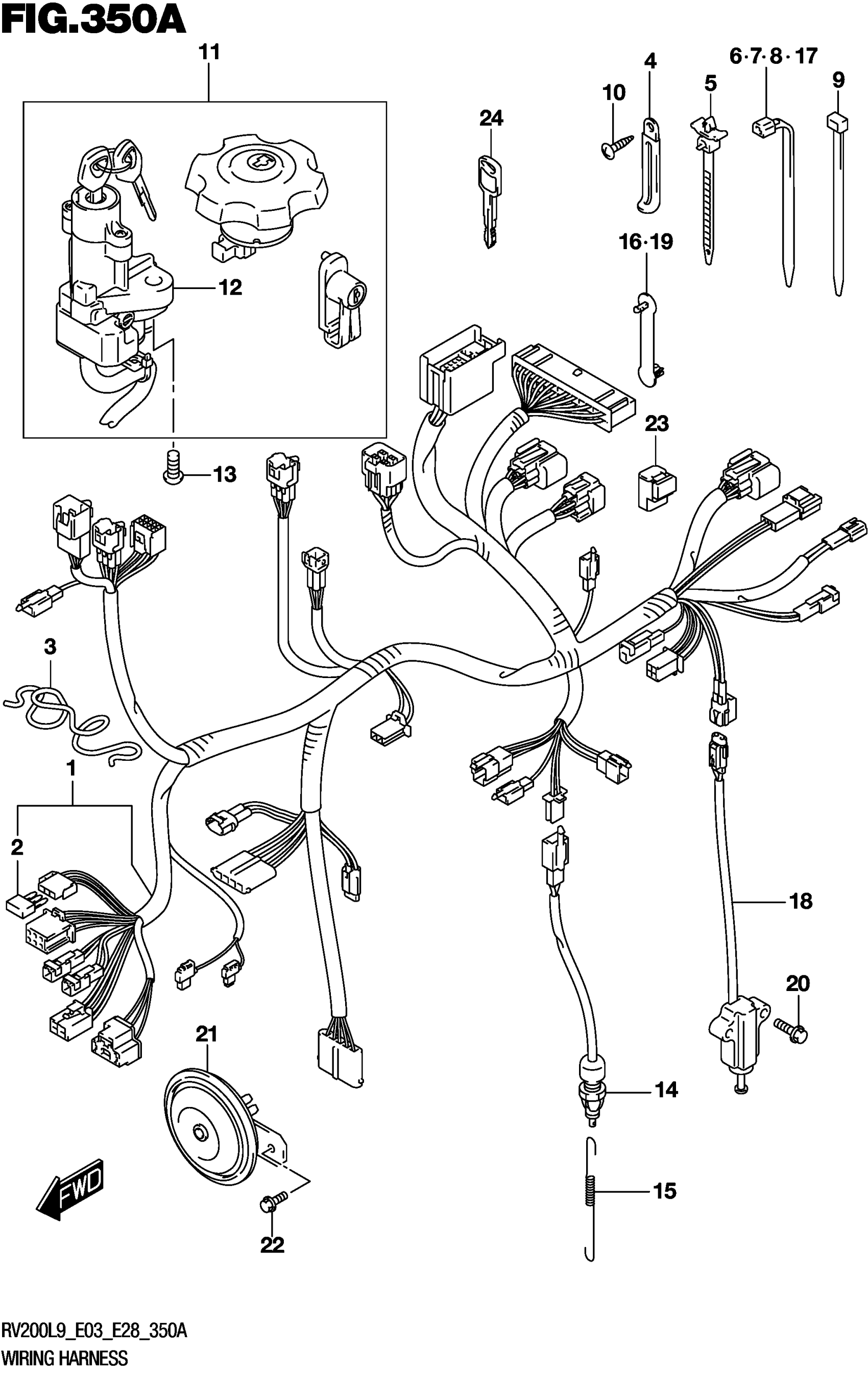

Suzuki RV200L9 (2019) WIRING HARNESS (RV200L9 E03) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-13G70

$456.55

2

.DIODE

36611-38A10

$13.16

3

GUIDE, WIRING HARNESS

36619-13G10

Unavailable

4

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

5

CLAMP (L:90)

09407-11402

$1.80

6

CLAMP (L:95)

09407-11401

$2.63

7

CLAMP (L:125)

09407-14403

$2.26

8

CLAMP (L:190)

09407-19401

$3.05

9

CLAMP (L:145)

09407-14407

$3.57

10

SCREW, CLAMP

03541-0410B

$1.98

11

LOCK SET This part replaces 37106-33880.

37106-33881

$345.48

12

LOCK ASSY,STEER This part replaces 37100-33EB0.

37100-33EB1

$208.02

13

BOLT (8X20)

09139-08016

$3.37

14

SWITCH ASSY,STOP LAMP

37740-45D00

$18.27

15

SPRING

09443-06011

$3.40

16

CLAMP (L:33)

09407-03401

$3.07

17

CLAMP (L:145)

09407-14407

$3.57

18

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$56.65

19

CLAMP (L:33)

09407-03401

$3.07

20

BOLT

01550-0616B

$2.48

21

HORN ASSY

38500-13G00

$64.50

22

BOLT

01550-0610A

$1.97

23

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

24

KEY,BLANK | OPT

37146-33E00

$21.21
