2019 Suzuki RV200L9 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

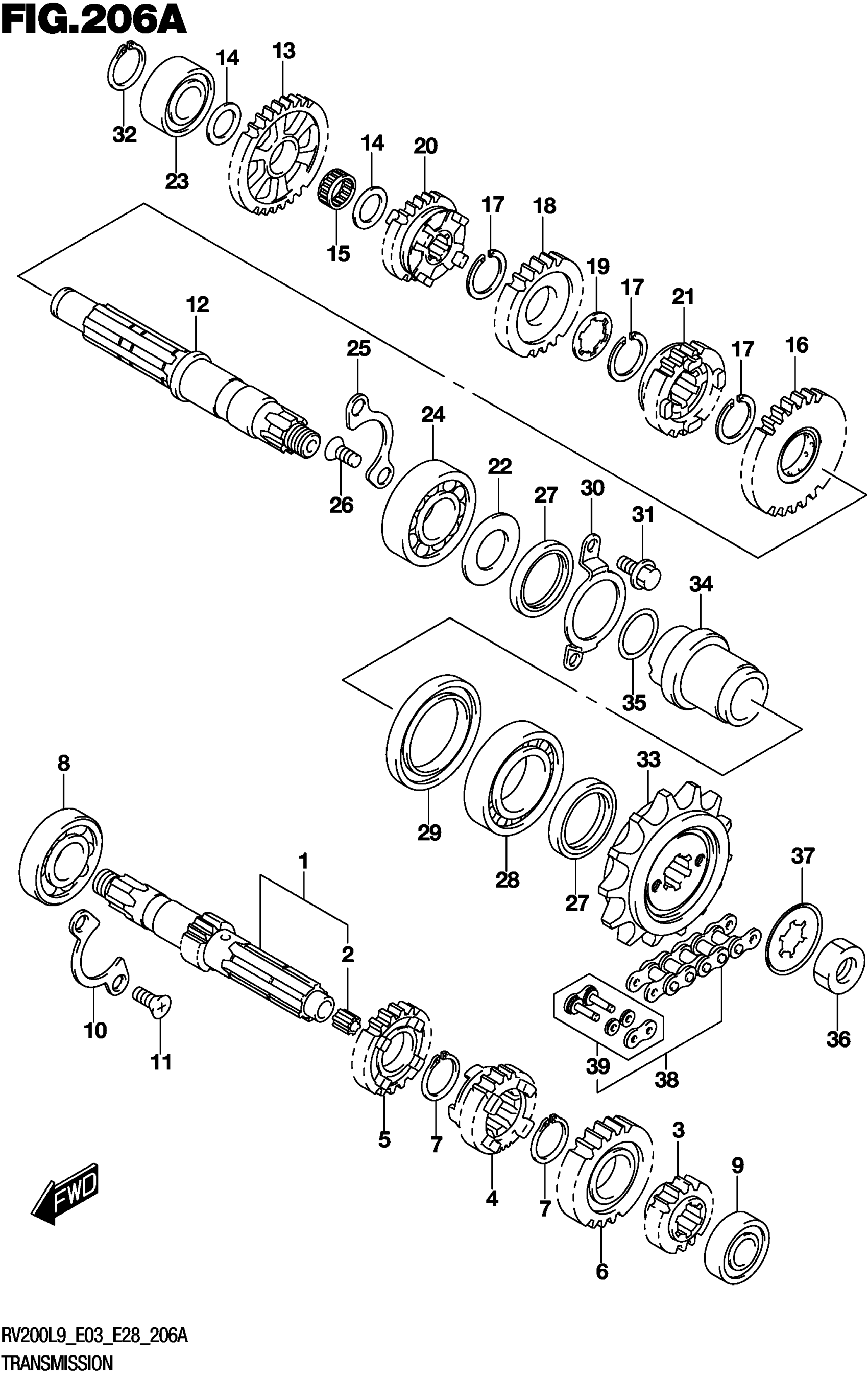

2019 Suzuki RV200L9 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT

24120-42A10

1
Out of stock

2

.BUSH

24125-38201

1
Out of stock

3

GEAR

24221-42A02

1
Out of stock

4

GEAR

24231-42A03

1
Out of stock

5

GEAR, 4TH DRIVE (NT:21)

24241-42A10

1
Out of stock

6

GEAR

24251-42A10

1
Out of stock

7

CIRCLIP

09380-20009

2
Out of stock

8

BEARING (20X47X14)

09262-20069

1
Out of stock

9

BEARING

08123-60027

1
Out of stock

10

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

11

SCREW (6X12)

09126-06011

2
Out of stock

12

SHAFT, DRIVE

24130-13G01

1
Out of stock

13

GEAR

24311-42A00

1
Out of stock

14

SHIM (17X26X1)

09181-17167

2
Out of stock

15

BEARING (17X21X9.8)

09263-17004

1
Out of stock

16

GEAR

24320-42A03

1
Out of stock

17

CIRCLIP

09380-22006

3
Out of stock

18

GEAR

24331-42A02

1
Out of stock

19

WASHER,LOCK (22.1X27X0.5)

09167-22011

1
Out of stock

20

GEAR, 4TH DRIVEN (NT:23)

24341-42A10

1
Out of stock

21

GEAR

24351-42A02

1
Out of stock

22

WASHER, OIL SEALING

24359-42A00

1
Out of stock

23

BEARING (17X36X12)

09264-17001

1
Out of stock

24

BEARING (22X50X14)

09262-22018

1
Out of stock

25

RETAINER, DRIVE SHAFT BEARING

24741-05200

1
Out of stock

26

SCREW (6X12)

09126-06011

2
Out of stock

27

OIL SEAL (30X40X6)

09283-30053

2
Out of stock

28

BEARING

08113-60067

1

$29.73

In stock

29

SEAL, DUST OUTER (40X58X6)

09283-40018

1
Out of stock

30

RETAINER, DRIVE SHAFT OIL SEA

24751-42A10

1
Out of stock

31

.BOLT

01500-0610A

2
Out of stock

32

CIRCLIP

08331-31179

1
Out of stock

33

SPROCKET,ENGINE This part replaces 27510-08D20.

27510-08D21

1
Out of stock

34

SPACER, ENGINE SPROCKET

27531-13G00

1
Out of stock

35

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock

36

NUT

09140-16032

1
Out of stock

37

LOCK WASHER

09167-20031

1
Out of stock

38

CHAIN ASSY,DRIVE | L:114->110 This part replaces 27600-43D02-114.

27600-46K00-114

1
Out of stock

39

.JOINT SET,CHAIN This part replaces 27620-43D02.

27620-46K00

1
Out of stock
