2019 Suzuki RV200L9 Clutch Diagram

← All diagrams

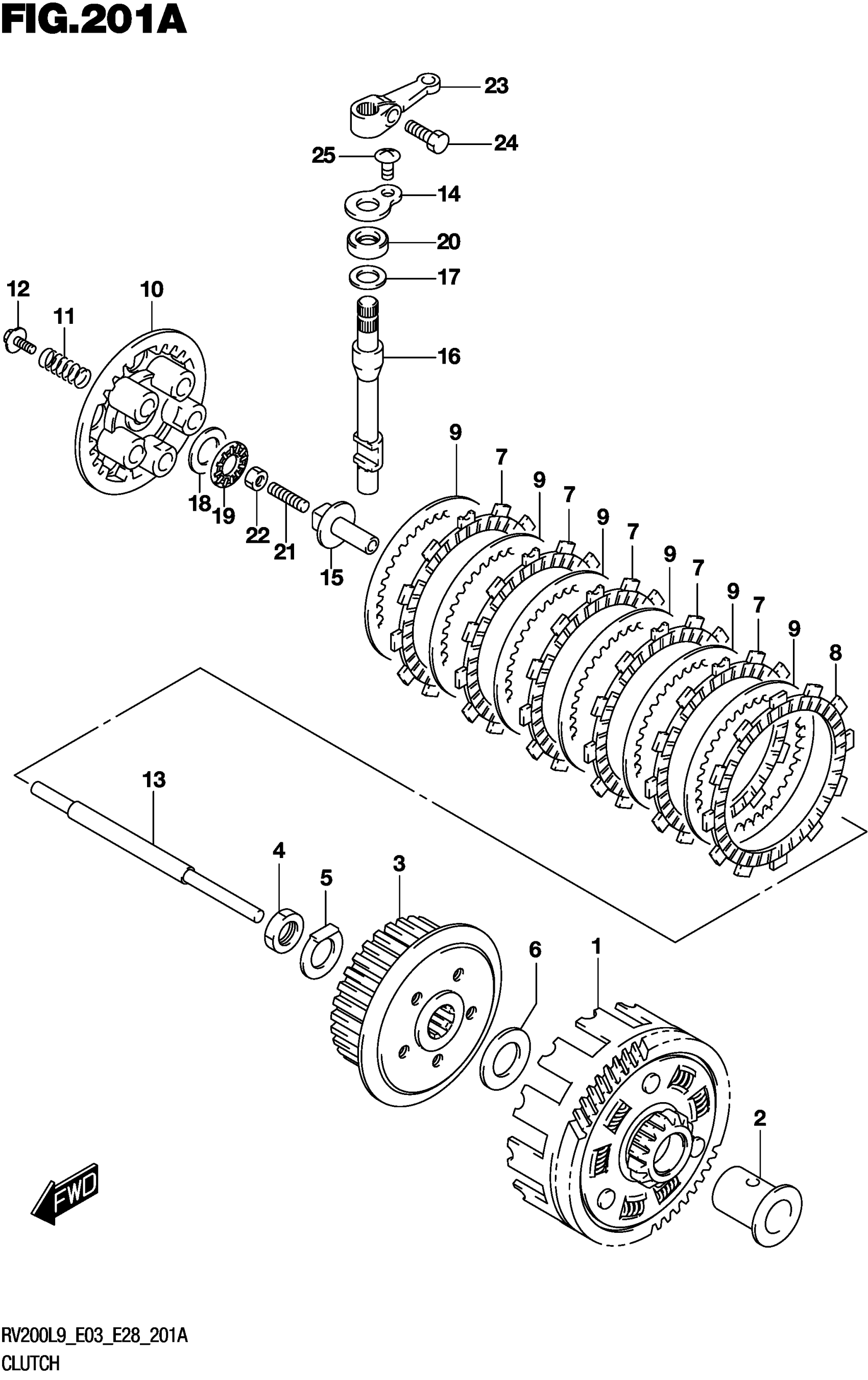

Find the part on the Clutch diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRI DRIVEN

21200-13G00

1
Out of stock

1

GEAR ASSY, PRI DRIVEN

21200-13G00

1
Out of stock

2

SPACER

21251-13E00

1
Out of stock

3

HUB

21411-42A04

1
Out of stock

4

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

5

WASHER

09169-16003

1
Out of stock

6

WASHER

08211-20355

1

$5.10

In stock

7

PLATE, CLUTCH DRIVE (T:3.0)

21441-25C01

5
Out of stock

8

PLATE,CLUTCH DRIVE (T:3.0)

21441-13A01

1
Out of stock

9

PLATE

21451-01B40

6
Out of stock

10

DISC, CL PRESSURE

21462-14130

1
Out of stock

11

SPRING

09440-15021

5
Out of stock

12

BOLT (5X16)

09116-05020

5
Out of stock

13

ROD, CLUTCH PUSH

23110-05203

1
Out of stock

14

RETAINER, CL RLSE OIL SEAL

23117-05200

1
Out of stock

15

PIECE, CLUTCH PUSH

23121-38201

1
Out of stock

16

CAMSHAFT, CLUTCH RELEASE

23122-05200

1
Out of stock

17

SHIM (10X20X1)

09181-10195

1
Out of stock

18

WASHER (15.5X28X1)

09160-15045

1
Out of stock

19

BEARING (15X28X2)

09263-15003

1
Out of stock

20

SEAL,OIL (10X20X6)

09282-10012

1
Out of stock

21

SCREW (6X25)

09134-06010

1
Out of stock

22

NUT (6X3.6)

09140-06023

1
Out of stock

23

ARM, CLUTCH RELEASE

23271-46010

1
Out of stock

24

BOLT

01500-0616A

1
Out of stock

25

SCREW

02142-0610A

1
Out of stock
