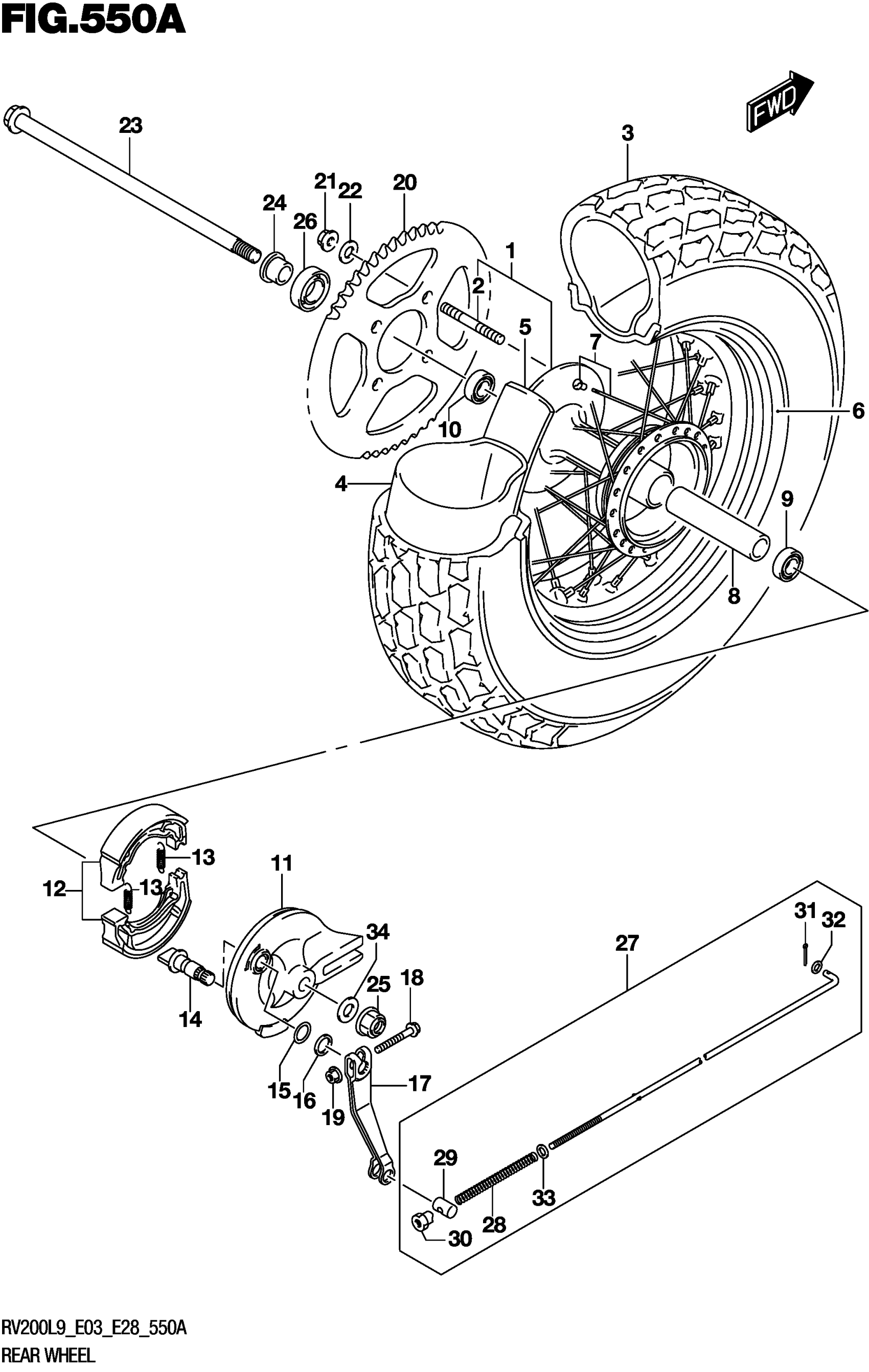

Suzuki RV200L9 (2019) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64100-13G00

$195.67

2

.STUD BOLT

09108-10061

$8.65

3

TIRE, REAR (180/80-14M/C 78P) | K180J

65110-13G10

Unavailable

3

TIRE, REAR (180/80-14M/C 78P) | DUNLOP

65110-13G10

Unavailable

4

TUBE ASSY,WHEEL This part replaces 65200-13G00.

65200-13G01

$41.30

5

PROTECTOR, WHEEL INNER TUBE

65261-13G00

$6.23

6

RIM, REAR WHEEL (14M/CXMT4.50

65311-13G00

$374.70

7

SPOKE SET, REAR WHEEL

65320-13G00

$93.77

8

SPACER, REAR HUB BEARING

64731-13G00

$21.35

9

BEARING | RH

08143-62027

$16.01

10

BEARING | LH This part replaces 08123-63027.

08123-6302B

$22.74

11

PANEL, REAR BRAKE ANCHOR

64210-13G10

$135.37

12

SHOE SET, BRAKE

54402-35820

$34.32

13

.SPRING (L:37.8)

09443-07044

$3.04

14

CAM

54441-29305

$20.02

15

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

16

WASHER (14.5X22X1.6)

09160-14055

$2.39

17

LEVER, REAR BRAKE CAM

64451-13G10

Unavailable

18

BOLT

01550-0635B

$2.73

19

NUT

08316-1006B

$2.50

20

SPROCKET, REAR (NT:46)

64511-13G00

$66.77

21

NUT

08319-3110A

$2.73

22

WASHER

08322-01107

$2.15

23

AXLE, REAR

64711-13G00

$43.73

24

SPACER, REAR AXLE

64751-13G10

Unavailable

25

NUT

08319-3114A

$9.66

26

OIL SEAL (24X43X6) | LH

09284-24001

$8.03

27

ROD ASSY, RR BRAKE

43300-13G30

$16.03

28

.SPRING

09440-09004

$2.20

29

.PIN (11X18)

09209-11002

$2.19

30

.NUT

09150-06010

$3.10

31

PIN

04111-2020A

$1.49

32

WASHER | FRONT

08322-0105B

$2.26

33

WASHER | REAR

08322-0106B

$2.26

34

WASHER (15.5X30X3.2)

09160-15039

$2.23
