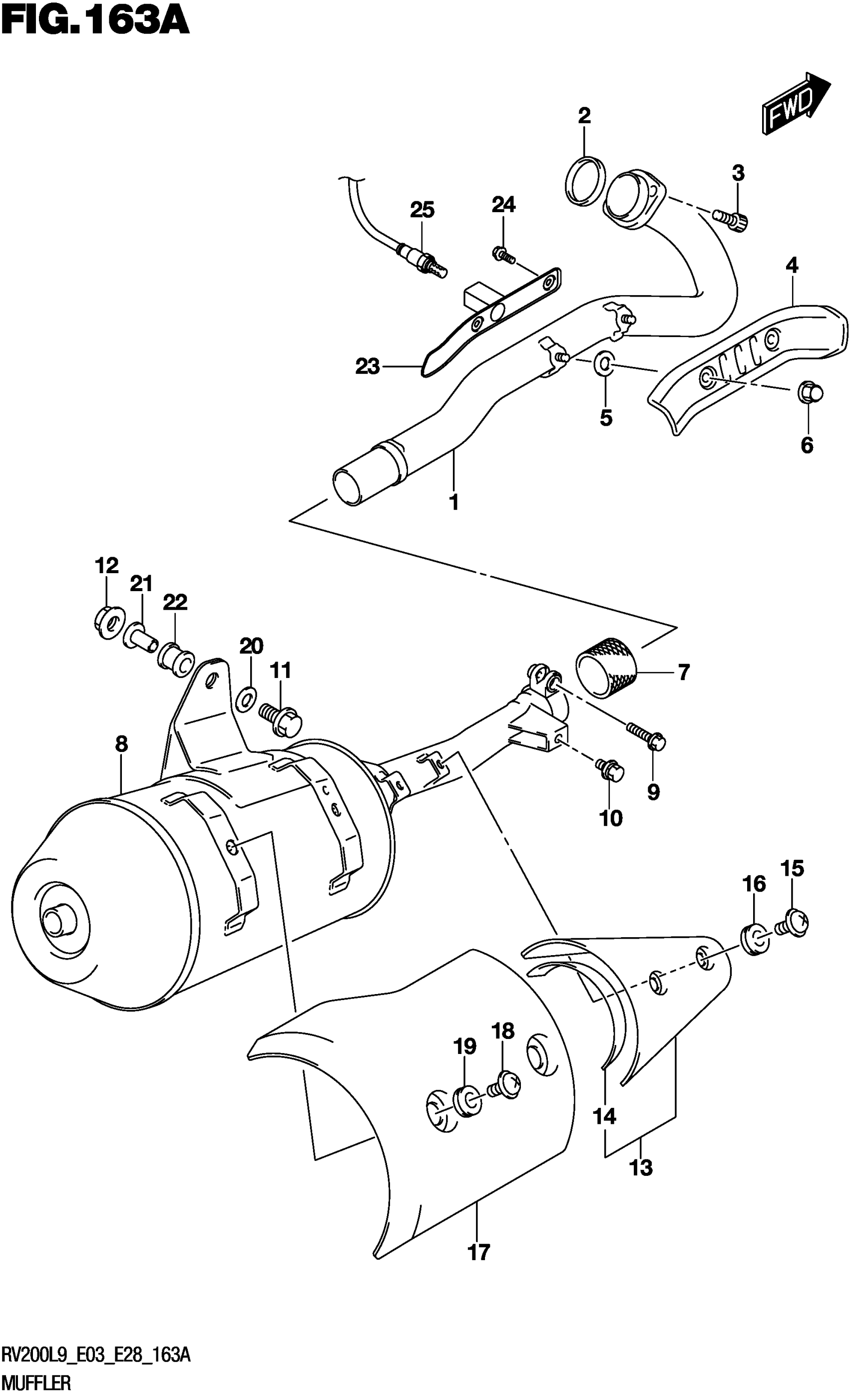

Suzuki RV200L9 (2019) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-13G40

$159.42

2

.GASKET

14181-42A00

$10.93

3

BOLT

07130-0825A

$3.04

4-1

COVER, EXHAUST PIPE

14186-13GA0

$28.15

4-2

COVER, EXHAUST PIPE | OPT

14186-13G60

$37.03

5-1

GASKET (6X16X1.4)

09168-06122

$2.73

5-2

GASKET (6X16X1.4) | OPT

09168-06122

$2.73

6-1

NUT

09145-06006

$2.64

6-2

NUT | OPT

09159-06038

$5.60

7

CONNECTOR,MUFFLER

14771-38F00

$23.13

8

BODY, MUFFLER

14310-13GD0-H01

$501.20

9

BOLT (8X35)

01550-0835A

$3.04

10

BOLT

01550-0845A

$3.14

11

BOLT

01550-0845A

$3.14

12

NUT

08319-3108A

$2.32

13

COVER, MUFFLER FR

14781-13G00

$30.62

14

.SHIELD, MUFFLER COVER HEAT

14784-13G00

$6.80

15

SCREW (6X12)

09139-06128

$5.67

16

CUSHION (8.4X18X6)

09320-08066

$8.24

17

COVER, MUFFLER RR

14791-13G00

$30.03

18

SCREW (6X12)

09139-06128

$5.67

19

CUSHION (8.4X18X6)

09320-08066

$8.24

20

WASHER (8.5X30X2.3)

09160-08159

$2.45

21

SPACER (8.6X12X24.2)

09180-08152

$5.83

22

CUSHION (12X30X24)

09320-12048

$5.11

23

GUARD, HEAT

14770-13G30

Unavailable

24

BOLT

01560-0610A

Unavailable

25

SENSOR

18213-16H01

$357.65
