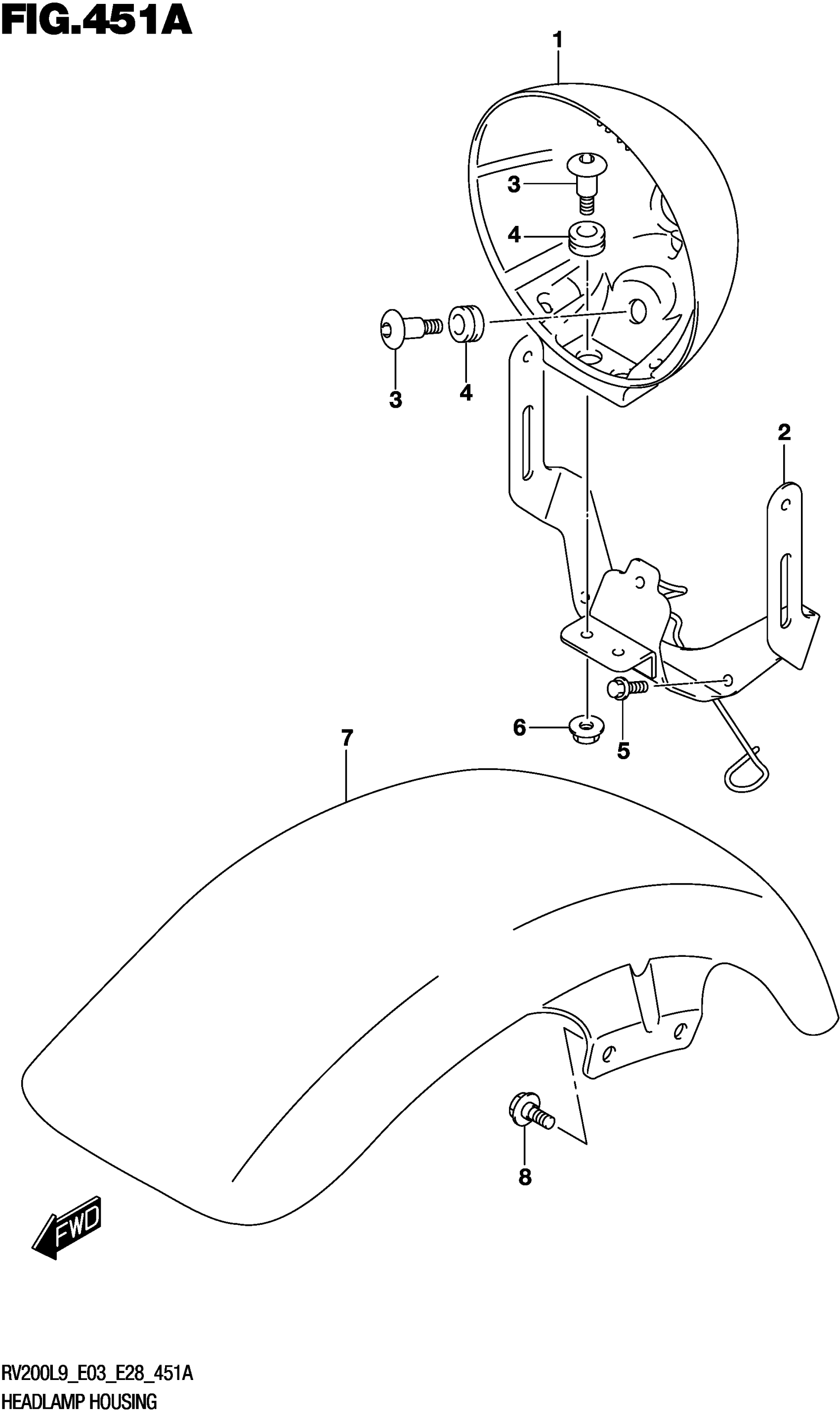

Suzuki RV200L9 (2019) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING ASSY, HEADLAMP

51811-13G00

$77.07

2

PLATE, HEADLAMP HOUSING

51850-13G40

$57.53

3

SCREW (6X20)

09139-06190

$4.17

4

CUSHION (9X18X10)

09320-09501

$2.03

5

BOLT

01550-0616B

$2.48

6

NUT (6X12)

08316-1006A

$2.19

7-1

FENDER, FR (BLACK) | FOR YUD,YUK

53111-13G10-019

$79.68

7-2

FENDER, FR (WHITE) | FOR YSF

53111-13G10-30H

$82.72

8

SCREW (6X16)

09122-86005

$4.26
