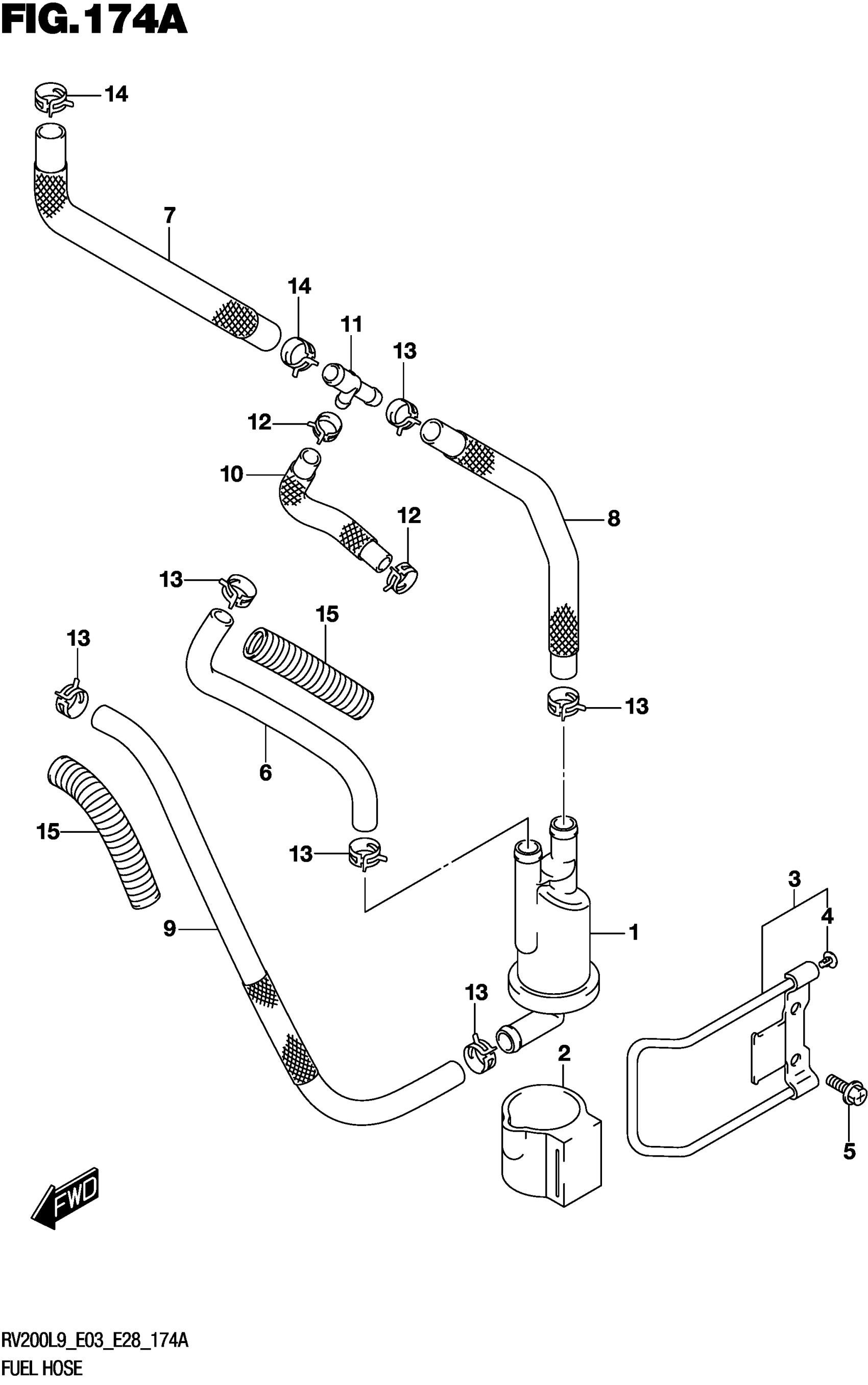

Suzuki RV200L9 (2019) FUEL HOSE Diagram

#

Description
Price

1

FILTER, FUEL

15411-13GA0

$26.52

2

HOLDER, FUEL FILTER

15418-13GA0

$14.43

3

PLATE, SET

15042-13GA0

$59.88

4

.CAP (OD:6)

09250-02001

Unavailable

5

BOLT

01550-0612A

$1.97

6

HOSE, FUEL TANK & FILTER

15811-13GA1

Unavailable

7

HOSE, FUEL 3 WAY & TANK

15812-13GA2

$26.15

8

HOSE, FILTER & 3 WAY

15813-13GA1

$48.50

9

HOSE, FUEL FILTER & INJECTOR

15814-13GA1

$40.92

10

HOSE, FUEL INJECTOR & 3 WAY

15815-13GA1

Unavailable

11

UNION, FUEL HOSE 3 WAY

15831-32G10

Unavailable

12

CLIP This part replaces 09401-11407.

09401-11415

$2.23

13

CLIP (ID:13.8)

09401-13414

$2.62

14

CLIP

09401-18406

Unavailable

15

PROTECTOR, HOSE HEAT

15824-13GA0

$9.97
