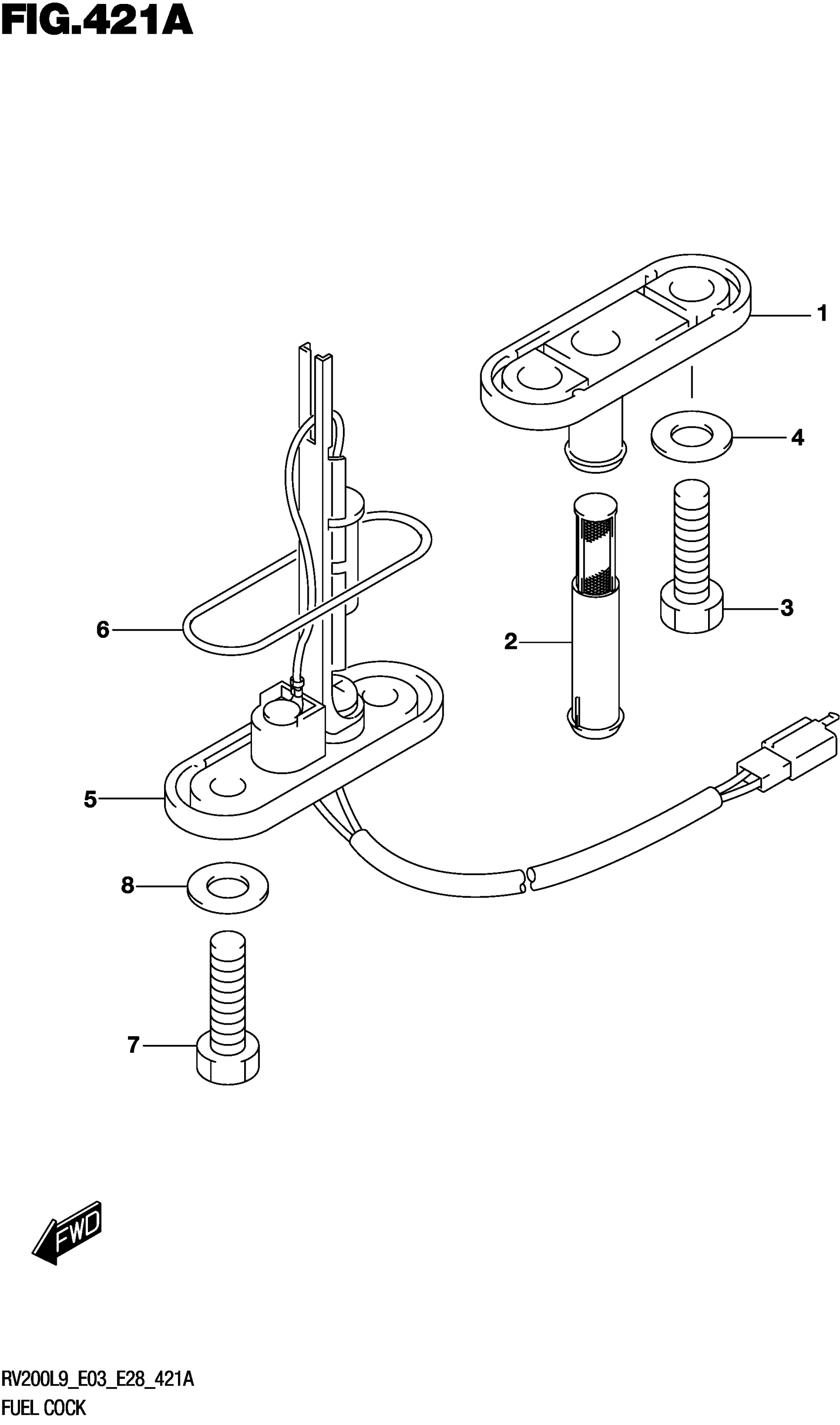

Suzuki RV200L9 (2019) FUEL COCK Diagram

#

Description

Price

1

JOINT ASSY, FUEL TANK

44400-13G10

Unavailable

2

FILTER, FUEL

44322-13G00

$13.47

3

BOLT This part replaces 09128-06006.

09128-06057

$1.65

4

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

5

SWITCH ASSY, FUEL LEVEL

34810-13G00

Unavailable

6

GASKET,FUEL LEV This part replaces 34825-13F00.

34825-13F01

$4.10

7

BOLT This part replaces 09128-06006.

09128-06057

$1.65

8

GASKET (6.4X11.5X0.84)

09168-06026

$3.10
