2019 Suzuki RV200L9 Front Fork Damper Diagram

← All diagrams

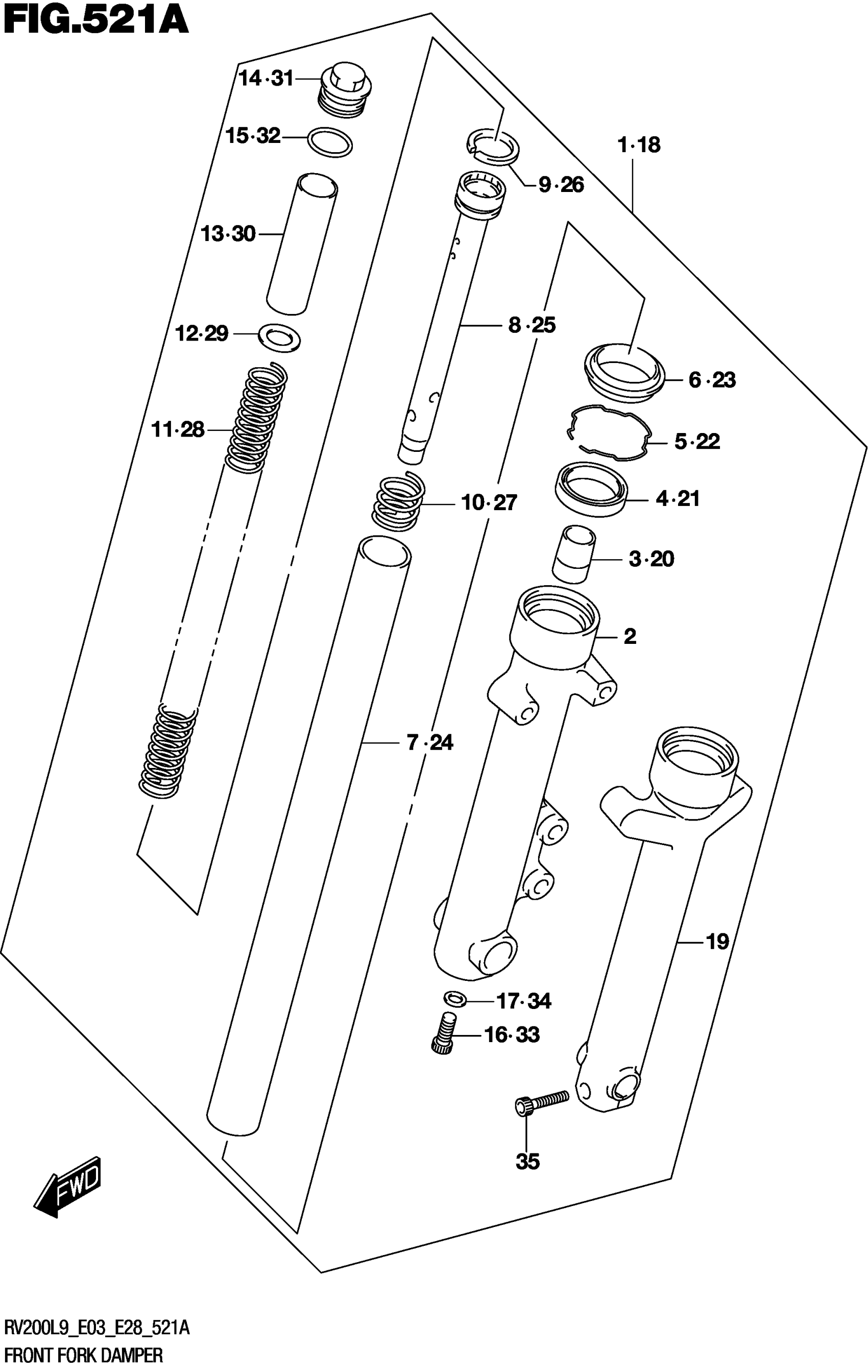

Find the part on the Front Fork Damper diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FR FORK RH

51103-13G20-019

1
Out of stock

1

DAMPER ASSY, FR FORK RH

51103-13G20-019

1
Out of stock

2

.TUBE, OUTER RH (BLACK)

51130-13G00-019

1
Out of stock

3

.PIECE, OIL LOCK

51195-13G00

1
Out of stock

4

.OIL SEAL

51153-05F10

1
Out of stock

5

.RING, STOPPER

51156-29420

1
Out of stock

6

.SEAL, DUST

51173-05F10

1
Out of stock

7

.TUBE, INNER

51110-13G00

1
Out of stock

8

.CYLINDER

51146-13G00

1
Out of stock

9

.RING, PISTON

51196-00A00

1
Out of stock

10

.SPRING

51177-37446

1
Out of stock

11

.SPRING, FR

51171-13G00

1
Out of stock

12

.WASHER

51172-05F00

1
Out of stock

13

.SPACER

51176-13G00

1
Out of stock

14

.CAP

51351-13G00

1
Out of stock

15

O RING This part replaces 51117-05F00.

51117-05F01

1
Out of stock

16

.BOLT,FORK CYLINDER (10X25)

51147-16510

1
Out of stock

17

.GASKET

51148-41310

1
Out of stock

18

DAMPER ASSY, FR FORK LH

51104-13G20-019

1
Out of stock

18

DAMPER ASSY, FR FORK LH

51104-13G20-019

1
Out of stock

19

.TUBE, OUTER LH (BLACK)

51140-13G00-019

1
Out of stock

20

.PIECE, OIL LOCK

51195-13G00

1
Out of stock

21

.OIL SEAL

51153-05F10

1
Out of stock

22

.RING, STOPPER

51156-29420

1
Out of stock

23

.SEAL, DUST

51173-05F10

1
Out of stock

24

.TUBE, INNER

51110-13G00

1
Out of stock

25

.CYLINDER

51146-13G00

1
Out of stock

26

.RING, PISTON

51196-00A00

1
Out of stock

27

.SPRING

51177-37446

1
Out of stock

28

.SPRING, FR

51171-13G00

1
Out of stock

29

.WASHER

51172-05F00

1
Out of stock

30

.SPACER

51176-13G00

1
Out of stock

31

.CAP

51351-13G00

1
Out of stock

32

O RING This part replaces 51117-05F00.

51117-05F01

1
Out of stock

33

.BOLT,FORK CYLINDER (10X25)

51147-16510

1
Out of stock

34

.GASKET

51148-41310

1
Out of stock

35

.BOLT

07130-08308

1
Out of stock
