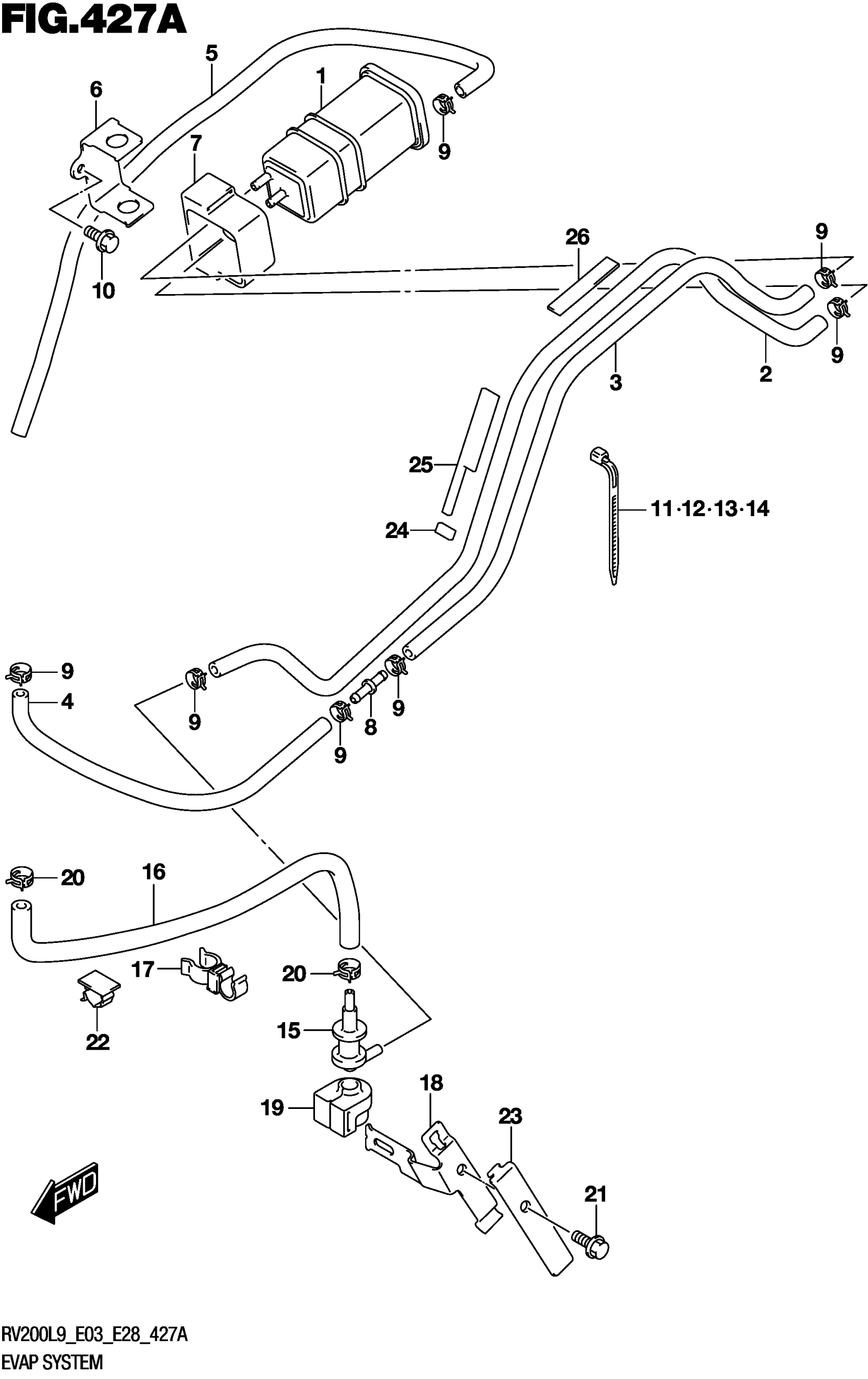

Suzuki RV200L9 (2019) EVAP SYSTEM (RV200L9 E33) Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL

17210-14A00

$156.07

2

HOSE, SURGE

18561-13G00

Unavailable

3

HOSE, EVAP

18562-13G00

Unavailable

4

HOSE, PURGE

18563-13G00

Unavailable

5

HOSE, CANISTER AIR

18564-13G00

$19.97

6

BRACKET, CANISTER

18571-13G00

Unavailable

7

CUSHION, CANISTER

18572-13G00

Unavailable

8

JOINT

09367-06009

Unavailable

9

CLIP (ID:10.5,H:8)

09401-10409

$2.26

10

BOLT

01550-0612A

$1.97

11

CLAMP (L:95)

09407-11401

$2.63

12

CLAMP (L:125)

09407-14403

$2.26

13

CLAMP (L:145)

09407-14407

$3.57

14

CLAMP (L:165)

09407-18402

$2.19

15

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

16

HOSE, TANK & BRTHR VALVE

44434-13G00

Unavailable

17

CLAMP, FUEL TANK BRTHR HOSE

44486-13G00

Unavailable

18

PLATE, BRTHR VALVE

44890-13G10

Unavailable

19

CUSHION, FUEL TANK BRTHR VALV

44894-13G00

Unavailable

20

CLIP (ID:11,H:8)

09401-11413

$2.26

21

BOLT

01550-0610B

$2.42

22

.CLAMP

09403-14311

$5.33

23

PLATE, BRTHR VALVE NO.1

44895-13G10

Unavailable

24

TAPE, FRAME NO.1

18573-13G00

Unavailable

25

TAPE, FRAME NO.2

18574-13G00

Unavailable

26

TAPE, FRAME NO.3

18575-13G00

Unavailable
