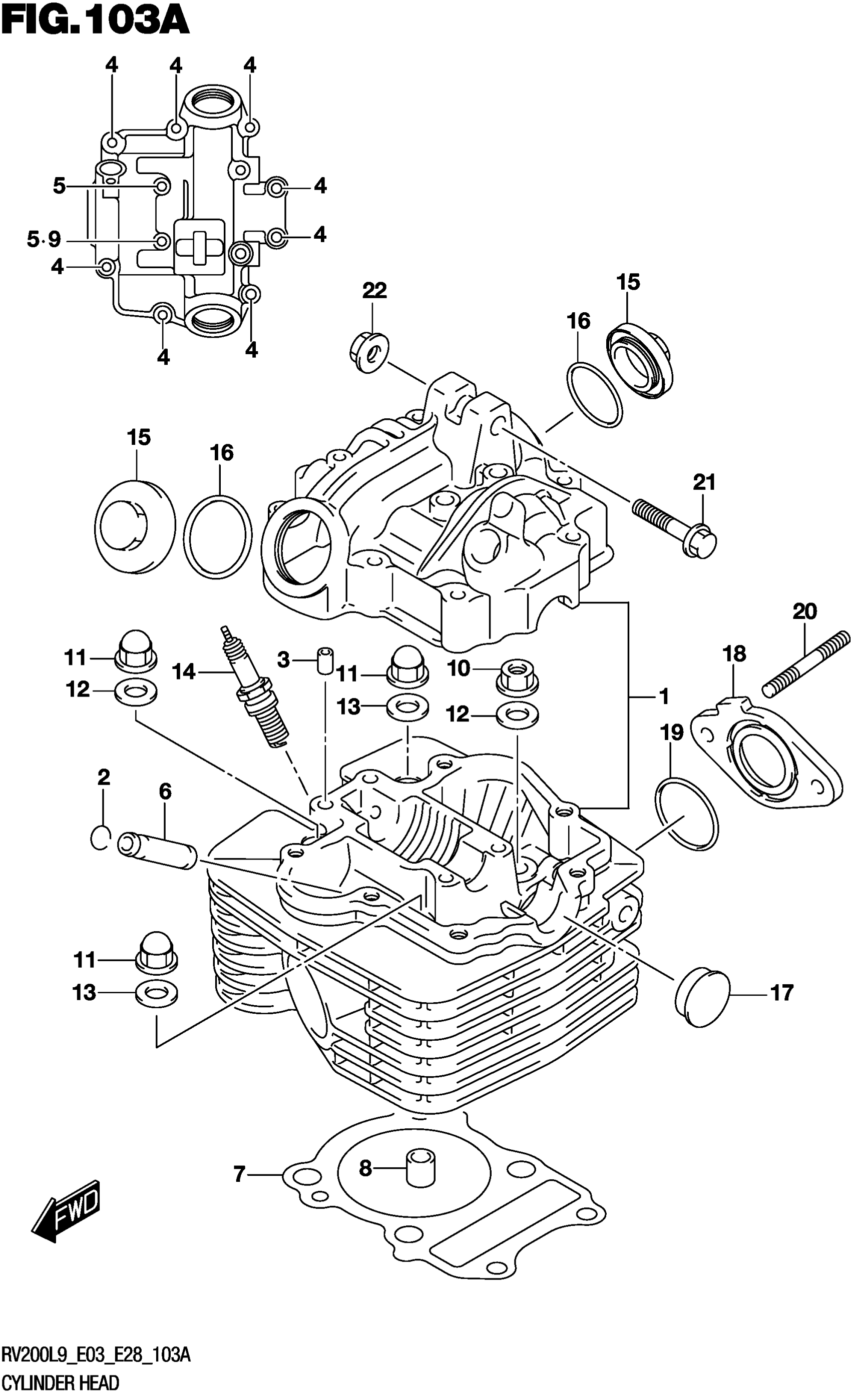

Suzuki RV200L9 (2019) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-42A70

$617.62

2

.RING (10X85)

09381-10004

$1.50

3

.PIN (8X11)

09206-08001

$1.78

4

BOLT

01550-0635A

$2.32

5

.BOLT

01550-0660A

$3.05

6

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

7

.GASKET, CYLINDER HEAD

11141-42A00

$25.05

8

PIN

04211-11169

$1.78

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

NUT

08316-1008A

$2.45

11

NUT

09159-08049

$4.71

12

WASHER (8.5X19X2.3)

09160-08039

$2.03

13

.GASKET (8.5X17X2.3)

09168-08021

$2.61

14-1

SPARK PLUG (X24ESR-U) | DENSO

09482-00223

$5.18

14-2

SPARK PLUG (DR8EA) | NGK

09482-00399

$3.32

15

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG (OD:22.5)

09241-22002

$5.24

18

INSULATOR, THROTTLE BODY

13128-13GA0

Unavailable

19

.O RING (D:1.9

09280-35001

$1.78

20

BOLT,STUD

01421-0620A

$1.91

21

BOLT (8X55)

09103-08519

Unavailable

22

NUT

08319-3108A

$2.32
