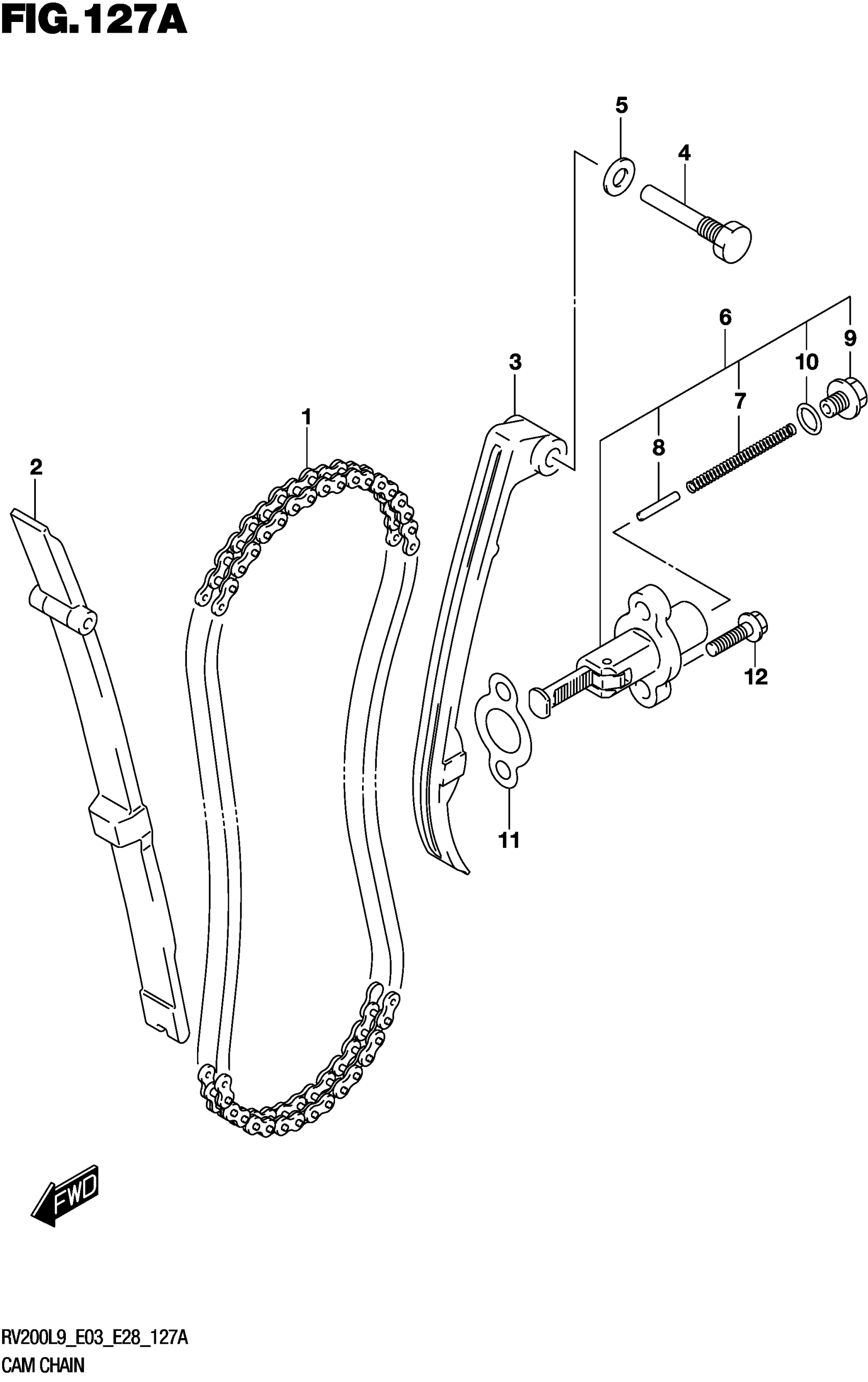

Suzuki RV200L9 (2019) CAM CHAIN Diagram

#

Description
Price

1

CHAIN

12760-42A00

$100.02

2

GUIDE,CAM CHAIN This part replaces 12771-18A00.

12771-18A01

$28.30

3

TENSIONER, CAM CHAIN

12811-18A10

Unavailable

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY,TENSIONER

12830-19B02

$96.45

7

.SPRING

12833-19B00

$3.25

8

.BAR

12835-19B00

$3.25

9

.PLUG

12834-19B00

$17.37

10

.O-RING

12832-02A00

$2.82

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

12

BOLT

01547-0620A

$2.03
