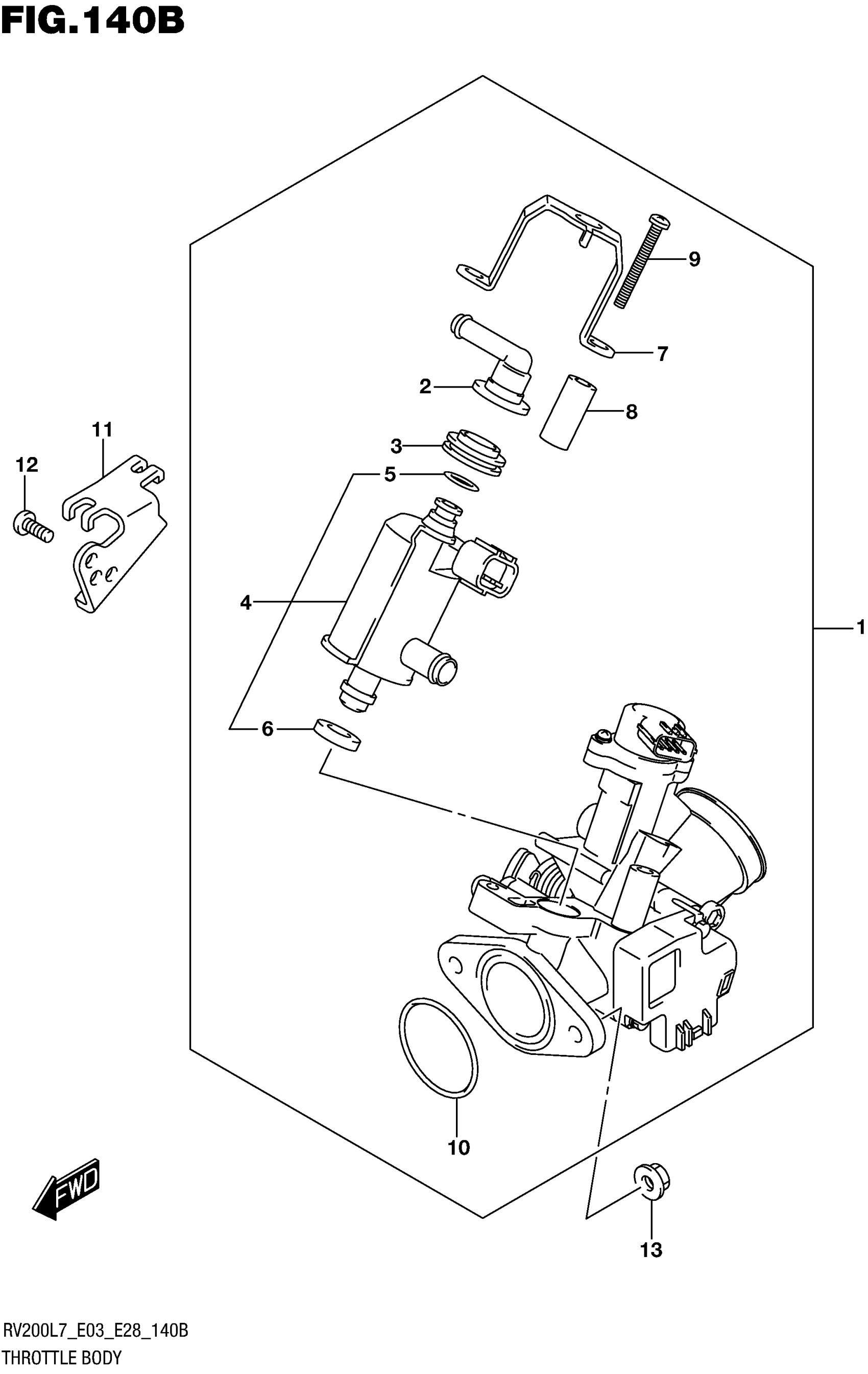

Suzuki RV200L7 (2017) THROTTLE BODY (RV200L7 E28) Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13400-13GA1.

13400-13GA3

$603.63

2

.NIPPLE

15721-13G00

$11.60

3

.CUSHION, FUEL INJECTOR UPR

15713-32G00

Unavailable

4

.INJECTOR ASSY, FUEL

15710-13GA1

$267.97

5

O-RING

13374-32G00

$7.22

6

..CUSHION, FUEL INJECTOR LWR

15712-32G00

$5.33

7

.BRACKET

15714-13G00

Unavailable

8

.PIPE

13511-13G00

$10.48

9

.SCREW

13602-42E00

Unavailable

10

.O RING

13251-13G00

Unavailable

11

BRACKET, THROTTLE CABLE

13565-13GA0

Unavailable

12

BOLT (5X10)

09106-05030

$3.03

13

NUT

08316-1006A

$2.19
