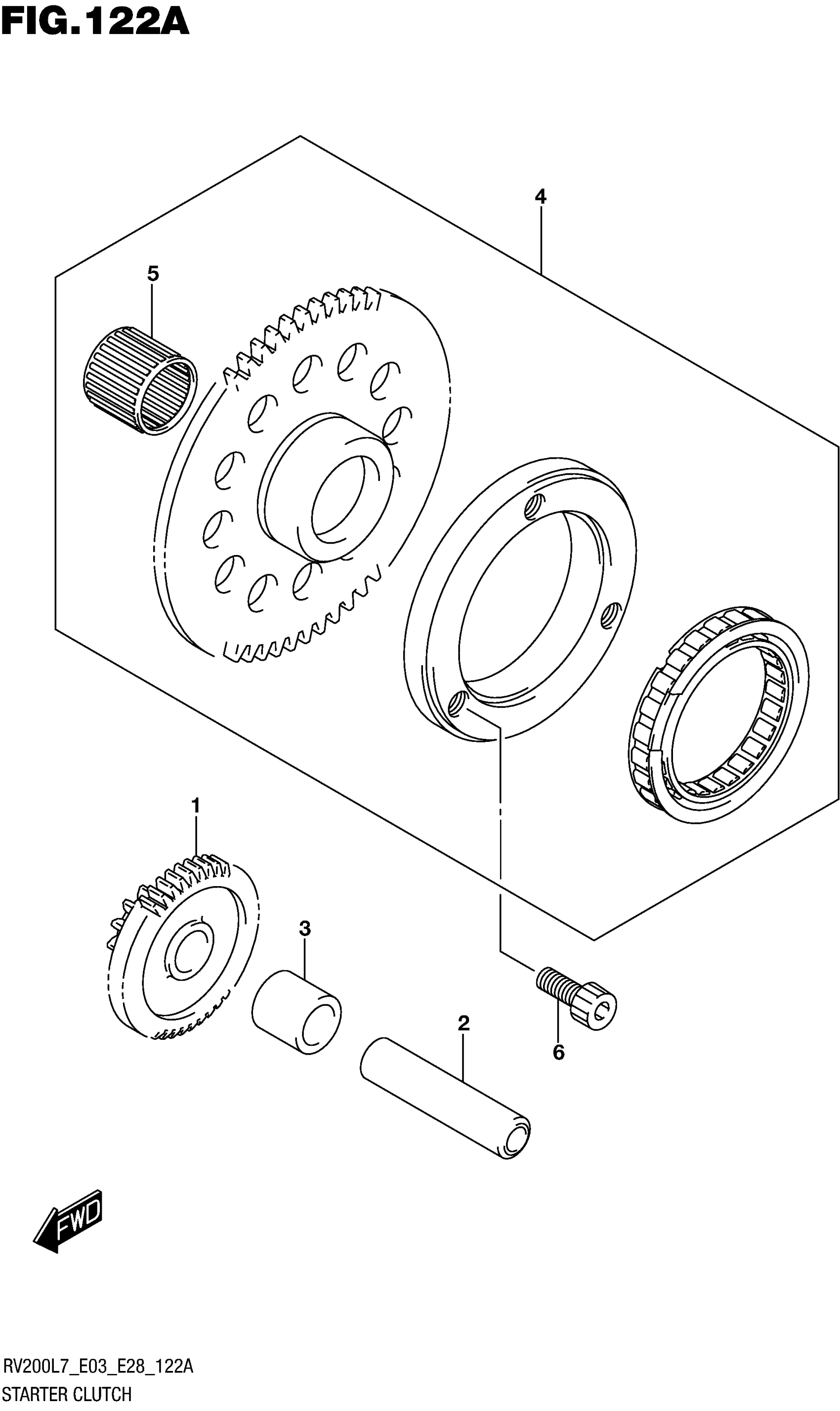

Suzuki RV200L7 (2017) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE (NT:15/44)

12611-42A03

$73.80

2

PIN (7.4X13X56)

09206-13003

$15.70

3

SPACER (13X19X19)

09180-13006

$4.92

4

CLUTCH SET This part replaces 12600-35843.

12600-35880

$347.67

5

.BEARING (22X28X16)

09263-22031

Unavailable

6

.BOLT (8X16)

09106-08190

$2.65
