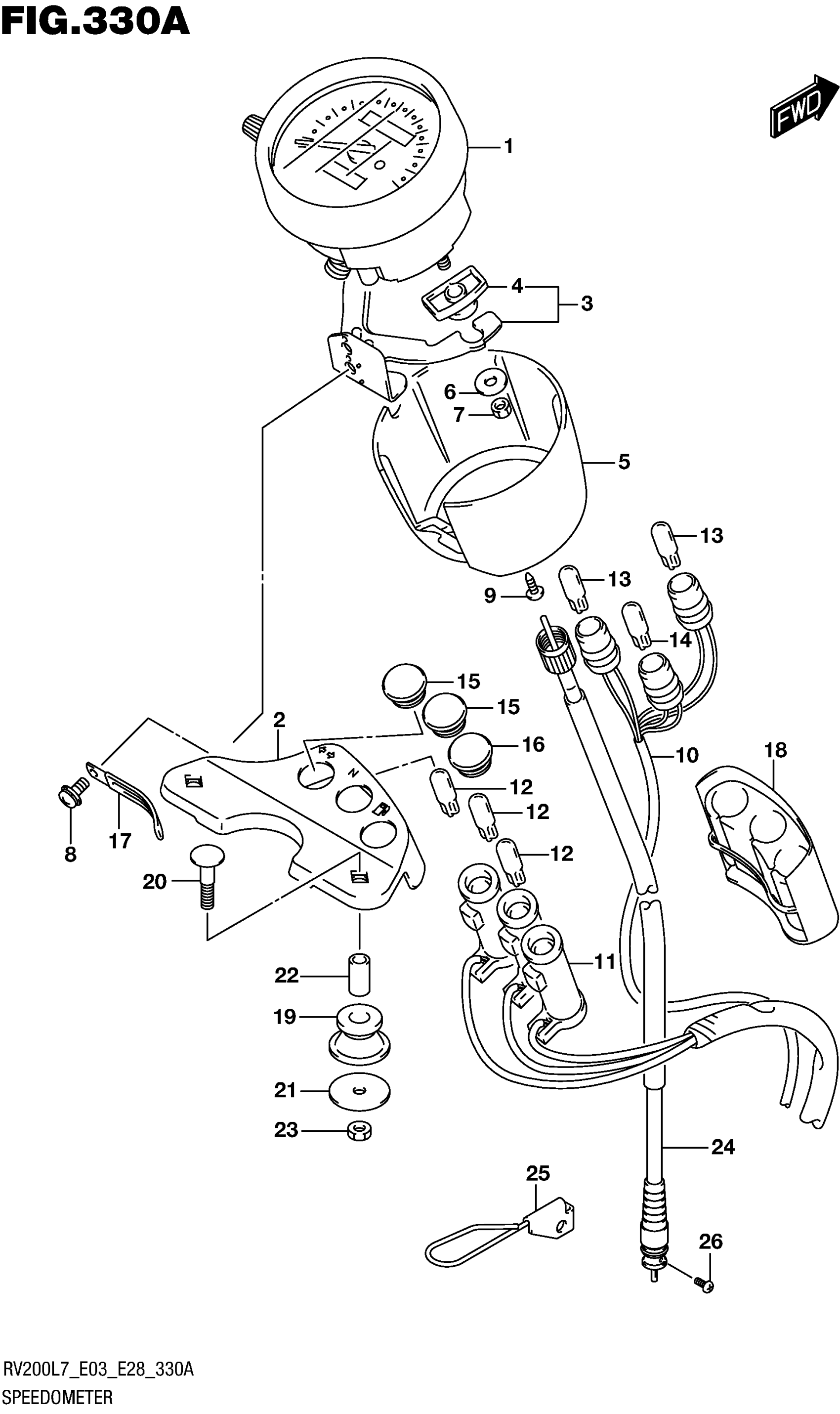

Suzuki RV200L7 (2017) SPEEDOMETER (RV200L7 E03) Diagram

#

Description
Price

1

SPEEDOMETER (MILE)

34110-13GB0

$278.45

2

BRACKET ASSY

34950-13GD0

Unavailable

3

BRACKET, SPEEDOMETER

34952-13G10

$25.78

4

.DAMPER

34191-13G10

$9.55

5

COVER

34111-13G10

$45.05

6

WASHER (5.2X16X1)

09160-05013

$1.49

7

NUT

08310-00057

$1.84

8

SCREW

02112-1612B

$3.03

9

SCREW

03541-1412A

$2.13

10

CORD ASSY

34173-13GA0

$37.03

11

CORD ASSY

34170-13GA0

Unavailable

12

BULB (12V,3.4W) | FOR TURN/NEUTRAL/

09471-12028

$1.99

12

.BULB (12V3.4W,T10) | FUEL

09471-12028

$1.99

13

.BULB (12V1.7W) | FOR HIGH BEAM/

09471-12108

$3.42

13

.BULB (12V1.7W) | METER

09471-12108

$3.42

14

BULB (12V,3W) | FOR FI INDICATOR

09471-12103

$3.83

15

LENS (GREEN) | FOR TURN/NEUTRAL

36321-13G00

$8.92

16

LENS (AMBER) | FOR HIGH BEAM

36331-13GA0

Unavailable

17

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

18

COVER

36383-13G00

$11.07

19

CUSHION, SPEEDOMETER

34956-31001

$4.37

20

BOLT (6X30)

09107-06003

$3.03

21

WASHER (6.5X28X1.6)

09160-06136

$1.84

22

SPACER (6.5X10X15.7)

09180-06294

$3.35

23

NUT

08310-0006B

$2.34

24

CABLE ASSY,SPEE This part replaces 34910-13G10.

34910-13G11

$40.15

25

GUIDE, SPEEDOMETER CABLE

34939-13G00

Unavailable

26

SCREW

02112-0516B

$1.93
