Description

Price

1-1

FENDER, RR (BLACK) | FOR 019,PGZ

63111-13G40-019

$114.48

1-2

FENDER, RR (WHITE) | FOR YSF

63111-13G40-30H

$114.48

2

BOLT (6X12)

09111-06107

$2.60

3

PLUG This part replaces 09251-09005.

09251-09009

$3.93

4

EXTENSION, RR FENDER (BLACK)

63311-13G10-291

$31.15

5

SCREW (6X16)

09139-06030

$3.70

6

SCREW (6X20)

09139-06028

$3.70

7

WASHER (6.5X16X1.2)

09160-06153

$1.65

8

NUT

08319-3106B

$2.45

9

BAG ASSY, SEAT TAIL

94900-13G10

$106.67

10

BOLT

01550-0620A

$1.97

11

WASHER

09169-06063

$3.37

12

WASHER (6.5X20X1.6)

09160-06066

$1.89

13

NUT

08319-3106A

$2.03

14

CUSHION, REAR BAG

94915-44E00

$12.65

15

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

16

SPANNER, HEXAGON

09816-00102

$3.30

17

BAND

09462-00008

$4.77

18

GROMMET

09308-07002

$2.12

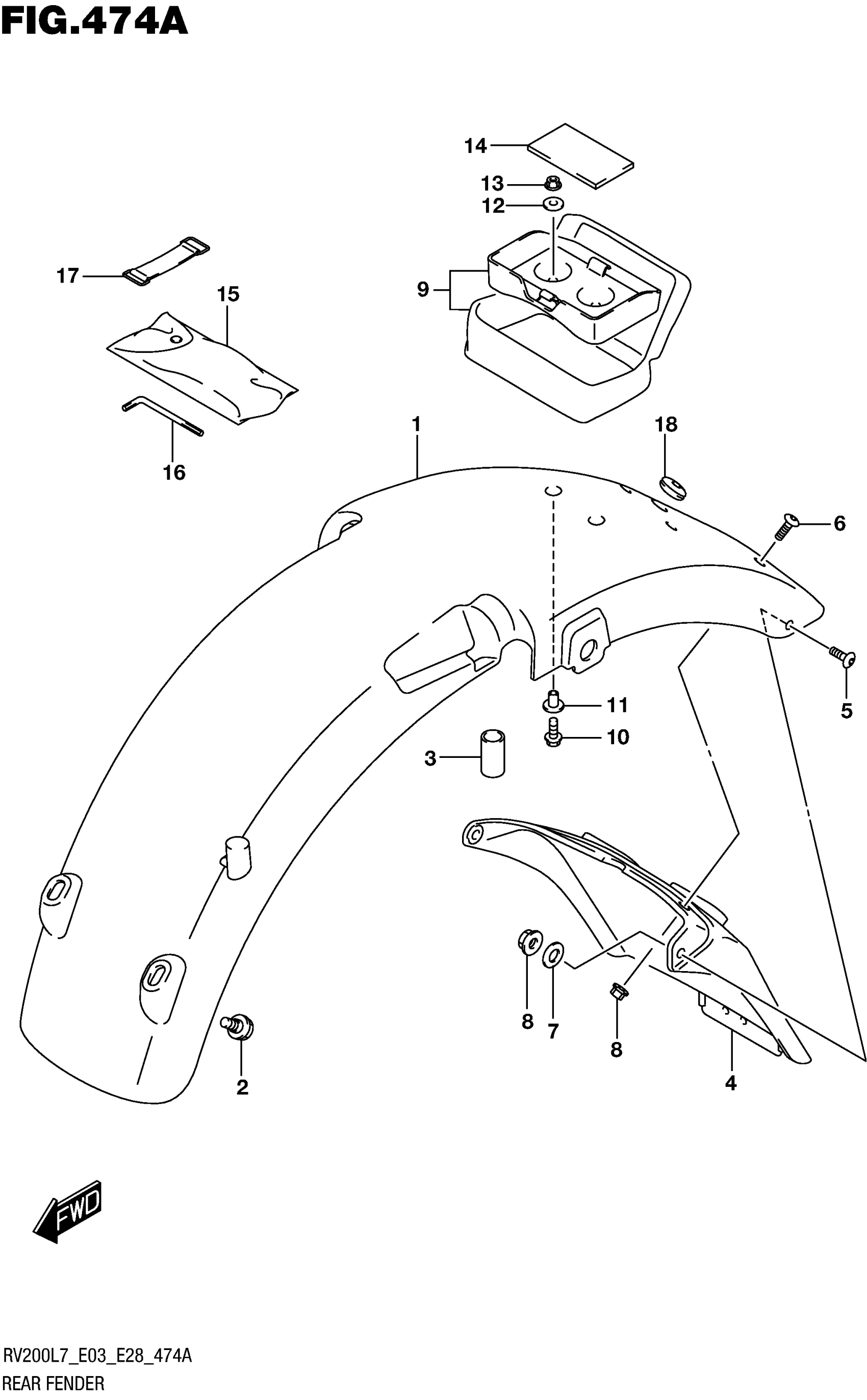

Suzuki RV200L7 (2017) REAR FENDER Diagram
