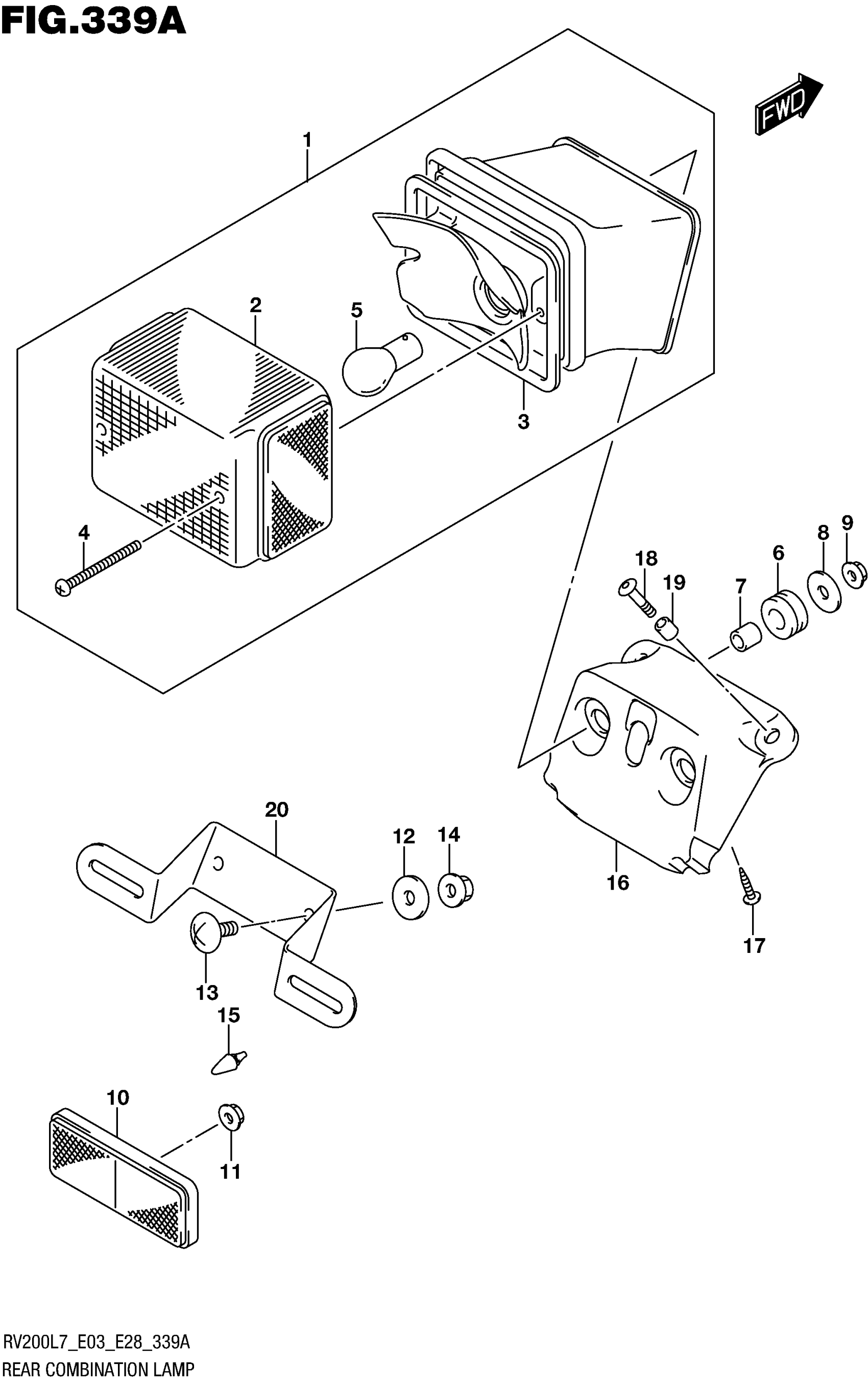

Suzuki RV200L7 (2017) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-29F30

$117.49

2

.LENS

35712-42A30

$51.24

3

.GASKET LENS

35713-14D30

$7.88

4

.SCREW (4X45)

09125-04501

$3.16

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

CUSHION

09320-10501

$6.23

7

SPACER (6.5X10X10)

09180-06310

$1.91

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

NUT

08316-1006A

$2.19

10

REFLEX REFLECTOR ASSY, REAR

35970-07F01

$20.88

11

NUT

08316-1005B

$2.50

12

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06079.

09160-06052

$1.49

13

SCREW

02142-0616A

$1.49

14

NUT

08316-1006A

$2.19

15

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

16

COVER, REAR COMB LAMP

63251-13G00

$14.18

17

SCREW

03541-0620B

Unavailable

18

SCREW (6X20)

09139-06028

$3.70

19

SPACER (6.5X9X8)

09180-06261

$1.91

20

BRACKET, LICENSE PLATE

35927-13G00

$26.53
