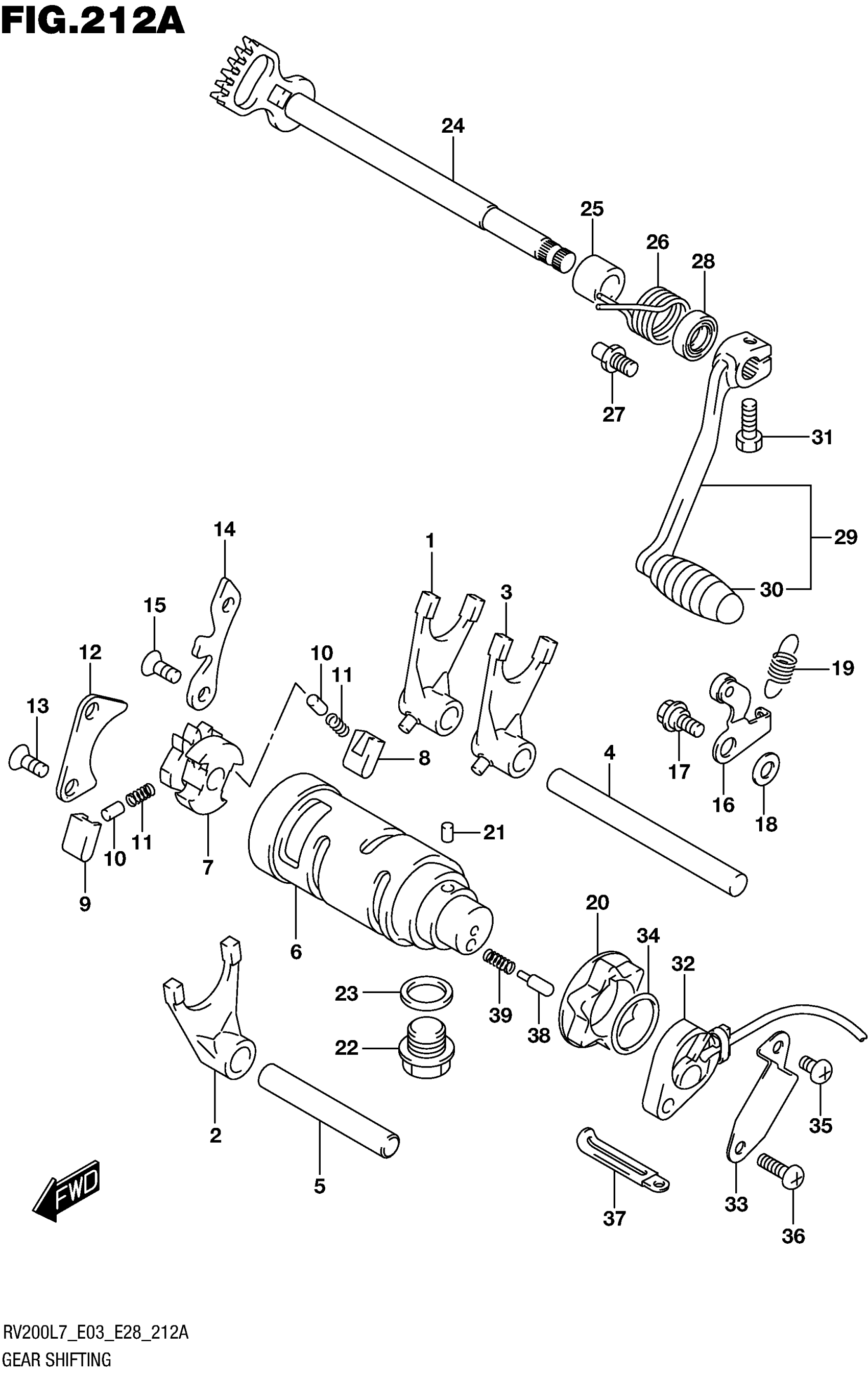

Suzuki RV200L7 (2017) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-42A02

Unavailable

2

FORK, GEAR SHIFT NO.2

25221-42A02

Unavailable

3

FORK, GEAR SHIFT NO.3

25231-42A02

Unavailable

4

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$18.02

5

SHAFT, GEAR SHIFT FORK NO.2

25421-35420

Unavailable

6

CAM, GEAR SHIFT

25310-42A00

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN (5X8)

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW (6X12)

09126-06011

$2.03

16

STOPPER, GEAR SHIFT CAM

25350-42A01

Unavailable

17

BOLT (6X14.6)

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09443-10036

$4.60

20

PLATE, GEAR SHIFT CAM STOPPER

25381-04700

Unavailable

21

PIN

04221-04069

$2.12

22

PLUG (14X12)

09247-14026

$3.76

23

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

24

SHAFT, GEAR SHIFT

25510-05400

Unavailable

25

SPACER (12X20X15.3)

09180-12068

$3.16

26

SPRING

09444-26023

$4.83

27

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

28

OIL SEAL (12X22X9)

09285-12006

$6.32

29

LEVER ASSY,GEAR This part replaces 25600-13G00.

25600-13G01

$32.18

30

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

31

BOLT

01500-0620A

$1.78

32

BASE ASSY, NEUTRAL SW TERMINA

37720-42A30

$41.22

33

PROTECTOR, GEAR SHIFT SW

37721-42A00

$3.37

34

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

35

SCREW

02112-0508A

$1.49

36

.SCREW

02112-0516A

$1.49

37

CLAMP (L:45)

09404-06429

$1.83

38

PIN (5X15.5)

09209-05011

$2.20

39

SPRING

09440-04010

$1.54
