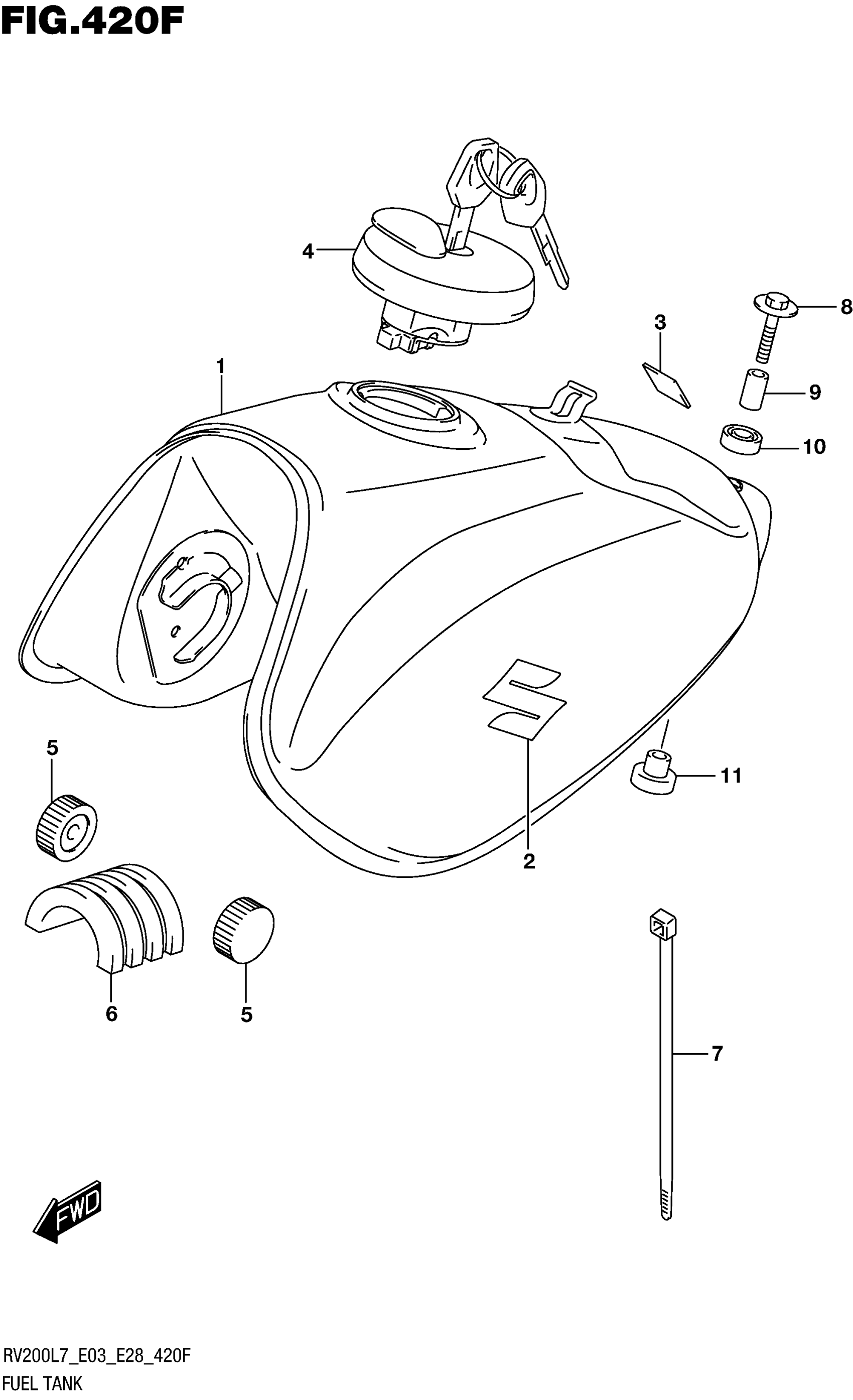

Suzuki RV200L7 (2017) FUEL TANK (FOR PGZ) (RV200L7 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (GRAY)

44100-13GN0-PGZ

Unavailable

2

EMBLEM, "S"

68111-47HA0

$38.68

3

FASTENER, TANK

44572-13G00

$10.59

4

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$124.15

5

CUSHION

09329-10016

$2.88

6

CUSHION, TANK LOWER

44541-04F00

Unavailable

7

CLAMP (L:300)

09407-30402

$3.90

8

BOLT (6X30)

09116-06214

$2.57

9

SPACER (6.5X9X18)

09180-06271

$2.17

10

CUSHION

09320-14022

$3.37

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.71
