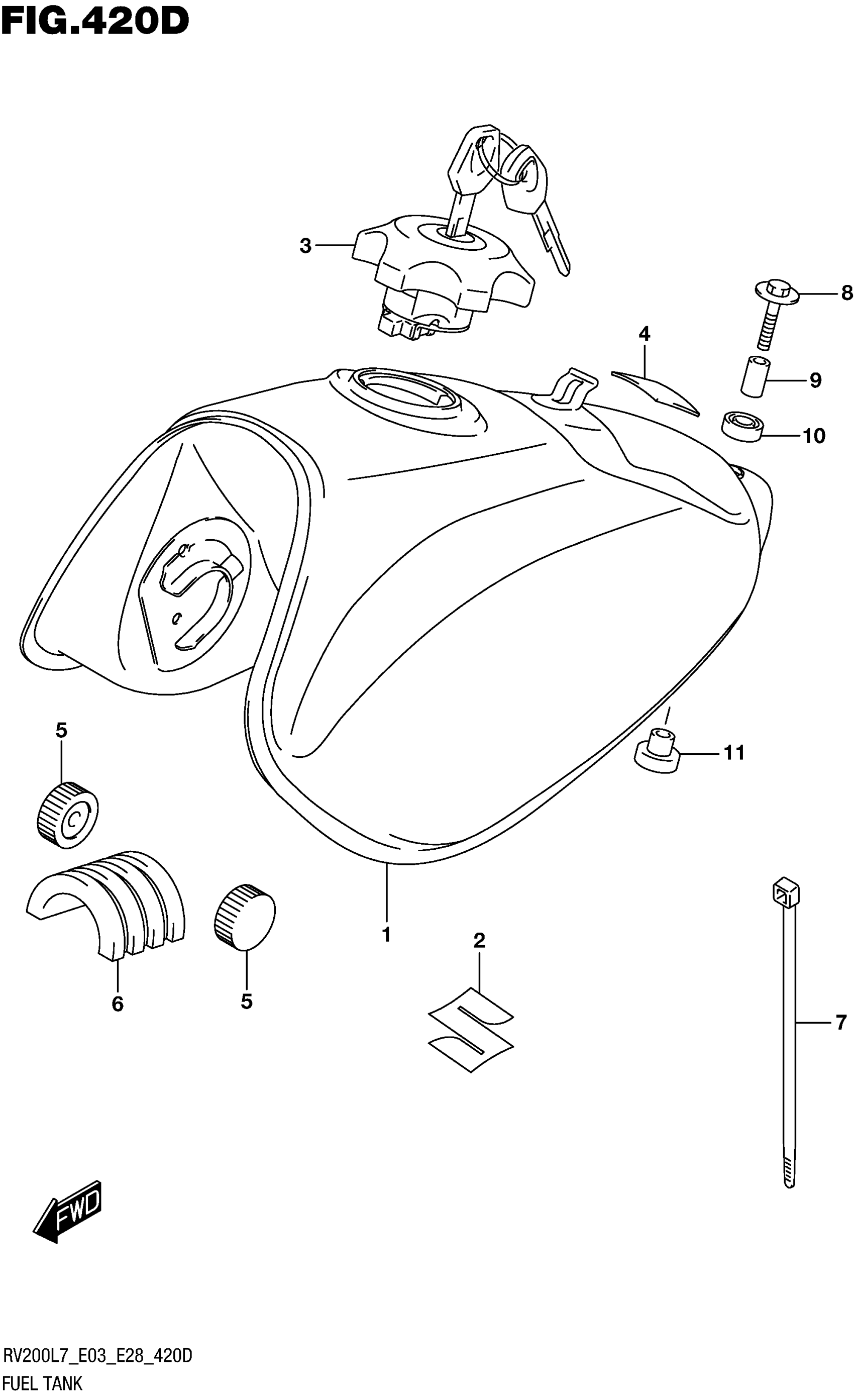

Suzuki RV200L7 (2017) FUEL TANK (FOR PGZ) (RV200L7 E03) Diagram

TANK ASSY,FUEL This part replaces 44100-13GM1-PGZ.

44100-13GM2-PGZ

Unavailable

EMBLEM, "S"

68111-47HA0

$40.44

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$140.27

FASTENER

44572-13G00

$11.07

CUSHION

09329-10016

$3.10

CUSHION, FUEL TANK LWR

44541-04F00

Unavailable

CLAMP (L:300)

09407-30402

$4.11

BOLT (6X30)

09116-06214

$2.50

SPACER (6.5X9X18)

09180-06271

$2.35

CUSHION

09320-14022

$3.63

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
