2017 Suzuki RV200L7 Fuel Hose Diagram

← All diagrams

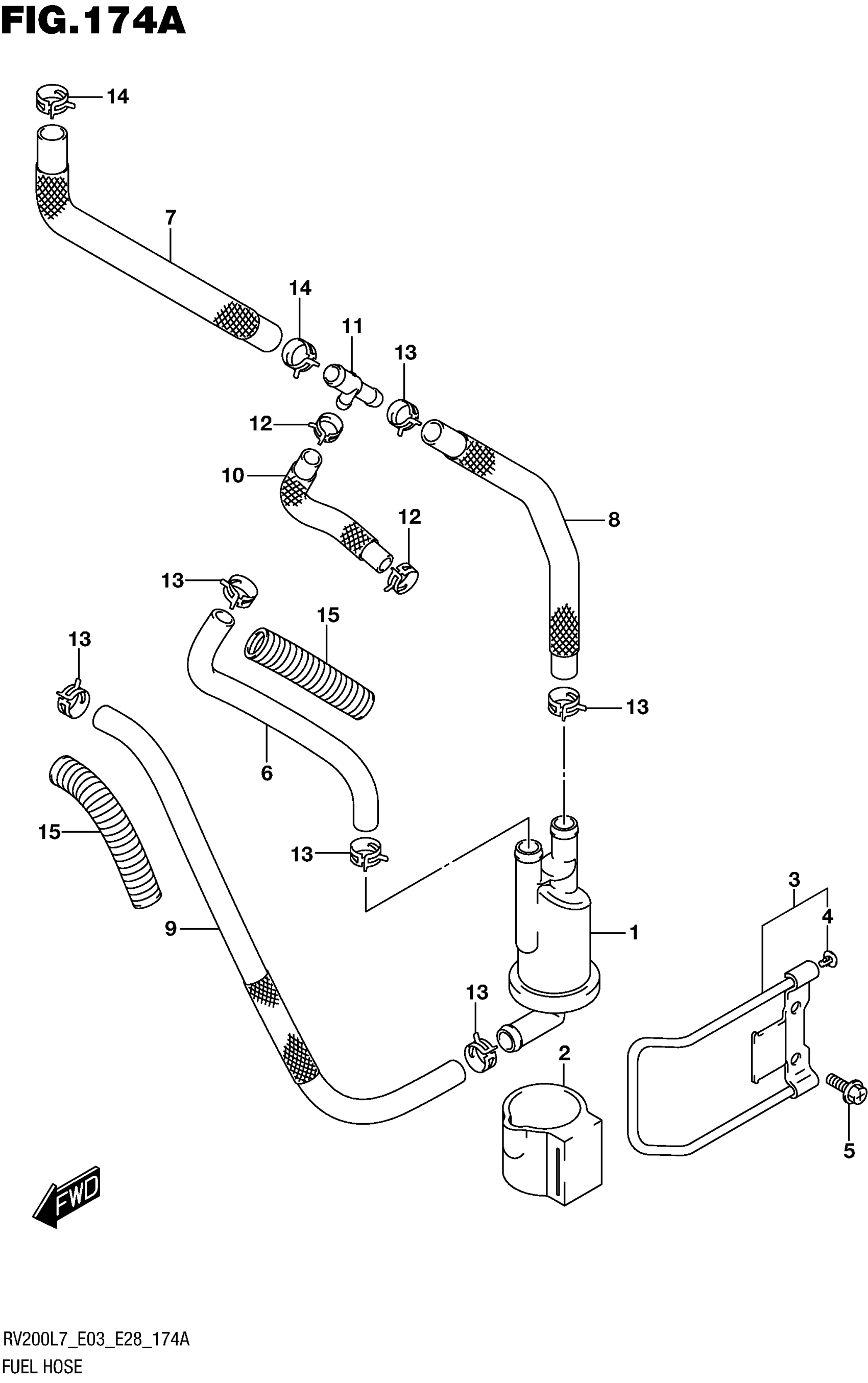

Find the part on the Fuel Hose diagram for your 2017 Suzuki RV200L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RV200L7 Fuel Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER, FUEL

15411-13GA0

1

$28.92

In stock

2

HOLDER, FUEL FILTER

15418-13GA0

1
Out of stock

3

PLATE, SET

15042-13GA0

1

$67.58

In stock

4

.CAP (OD:6)

09250-02001

—
Out of stock

5

BOLT

01550-0612A

2
Out of stock

6

HOSE, FUEL TANK & FILTER

15811-13GA0

—
Out of stock

7

HOSE, FUEL 3 WAY & TANK

15812-13GA1

—
Out of stock

8

HOSE, FILTER & 3 WAY

15813-13GA0

—
Out of stock

9

HOSE, FUEL FILTER & INJECTOR

15814-13GA0

—
Out of stock

10

HOSE, FUEL INJECTOR & 3 WAY

15815-13GA0

—
Out of stock

11

UNION, FUEL HOSE 3 WAY

15831-32G10

—
Out of stock

12

2

$2.36

In stock

13

CLIP

09401-13414

6
Out of stock

14

CLIP

09401-18406

2
Out of stock

15

PROTECTOR, HOSE HEAT

15824-13GA0

2

$11.27

In stock
