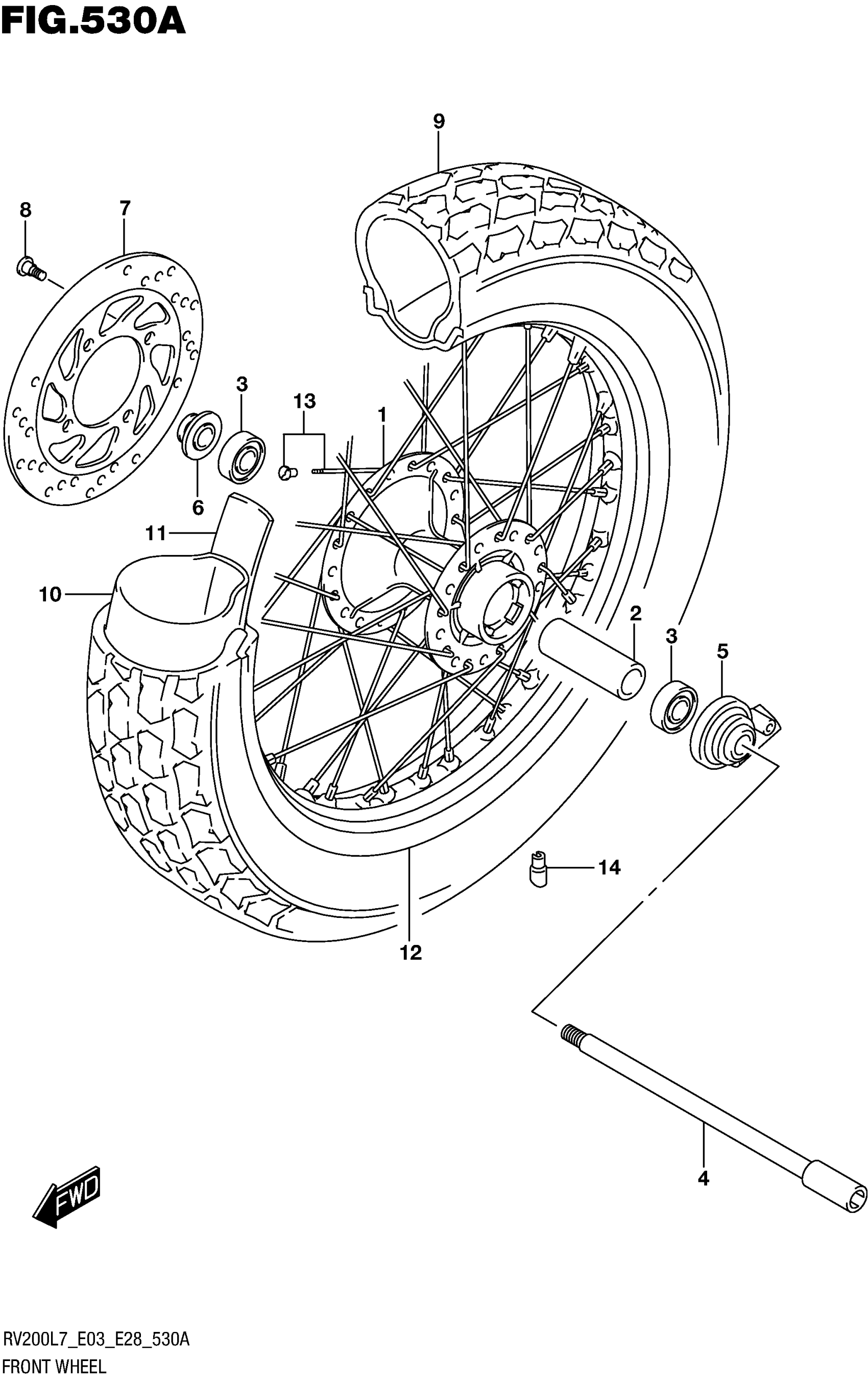

Suzuki RV200L7 (2017) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-13G00

$272.28

2

SPACER, FR HUB BEARING

54731-13G00

Unavailable

3

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

4

AXLE, FR

54711-13G00

$86.32

5

BOX ASSY, SPEEDOMETER GEAR

54600-13G00

$109.87

6

SPACER, FR AXLE

54740-13G10

Unavailable

7

DISC, FR BRAKE RH

59211-13G00

$194.02

8

BOLT (8X21)

09106-08160

$3.57

9

TIRE, FR (130/80-18M/C 66P) | K180J

55110-13G10

Unavailable

9

TIRE, FR (130/80-18M/C 66P) | DUNLOP

55110-13G10

Unavailable

10

TUBE ASSY, WHEEL INNER

55200-13G00

$39.99

11

PROTECTOR, WHL INR TUBE

55261-13G00

$5.28

12

RIM, FR WHEEL (18M/CXMT2.50)

55311-13G00

Unavailable

13

SPOKE SET, FR

55320-13G00

Unavailable

14-1

BALANCER WHEEL (15G)

55411-26G00

$7.73

14-2

BALANCER WHEEL (30G)

55413-41F00

$7.50
