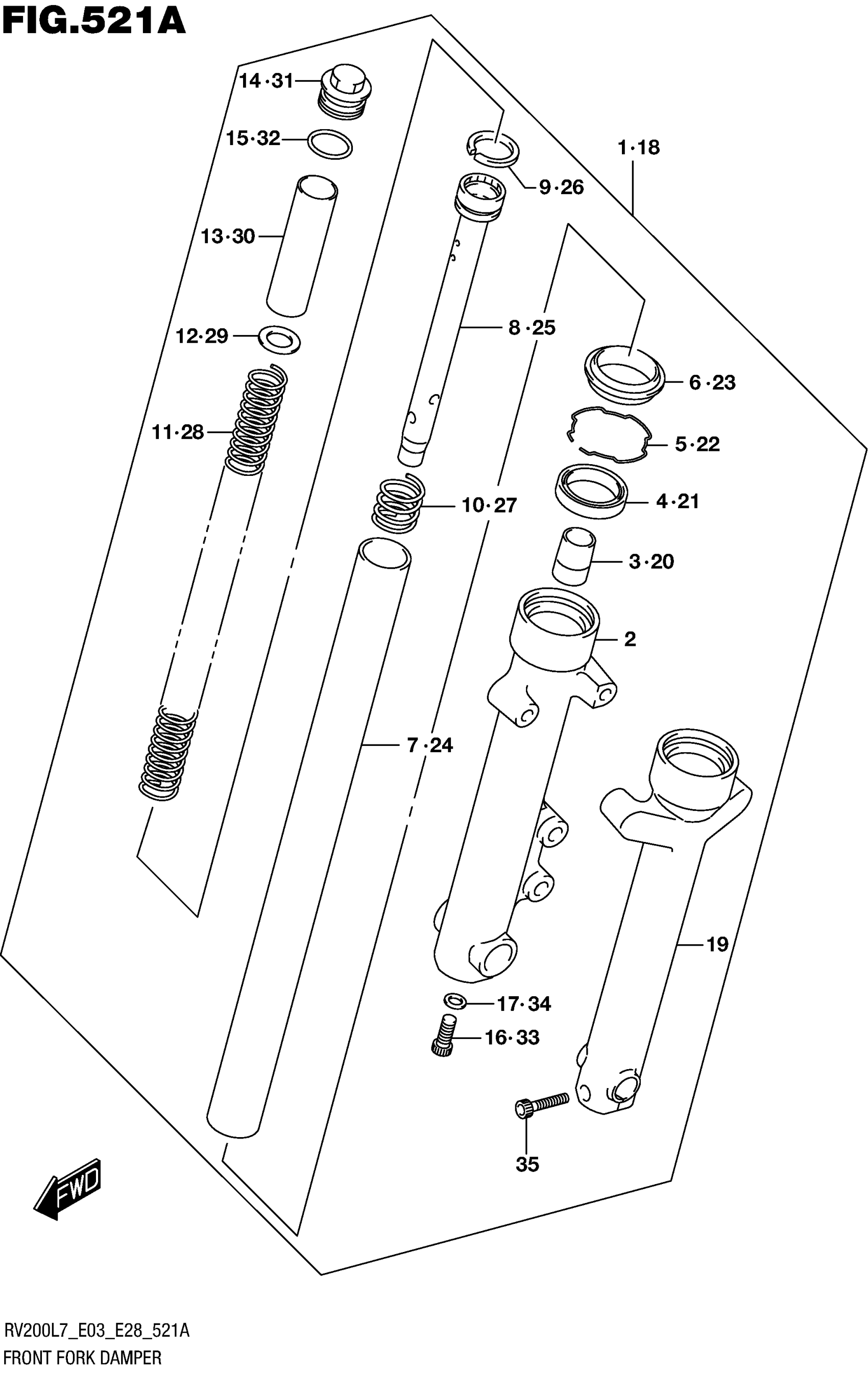

Suzuki RV200L7 (2017) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FR FORK RH

51103-13G20-019

$596.45

1

(BLACK)

51103-13G20-019

$596.45

2

.TUBE, OUTER RH (BLACK)

51130-13G00-019

Unavailable

3

.PIECE, OIL LOCK

51195-13G00

$17.72

4

.OIL SEAL

51153-05F10

$19.73

5

.RING, STOPPER

51156-29420

Unavailable

6

.SEAL, DUST

51173-05F10

$18.38

7

.TUBE, INNER

51110-13G00

$275.05

8

.CYLINDER

51146-13G00

Unavailable

9

.RING, PISTON

51196-00A00

Unavailable

10

.SPRING

51177-37446

Unavailable

11

.SPRING, FR

51171-13G00

Unavailable

12

.WASHER

51172-05F00

$4.55

13

.SPACER

51176-13G00

Unavailable

14

.CAP

51351-13G00

$29.35

15

O RING This part replaces 51117-05F00.

51117-05F01

$3.68

16

.BOLT, FORK CYLINDER (10X25)

51147-16510

$4.34

17

.GASKET

51148-41310

$2.26

18

DAMPER ASSY, FR FORK LH

51104-13G20-019

Unavailable

18

(BLACK)

51104-13G20-019

Unavailable

19

.TUBE, OUTER LH (BLACK)

51140-13G00-019

Unavailable

20

.PIECE, OIL LOCK

51195-13G00

$17.72

21

.OIL SEAL

51153-05F10

$19.73

22

.RING, STOPPER

51156-29420

Unavailable

23

.SEAL, DUST

51173-05F10

$18.38

24

.TUBE, INNER

51110-13G00

$275.05

25

.CYLINDER

51146-13G00

Unavailable

26

.RING, PISTON

51196-00A00

Unavailable

27

.SPRING

51177-37446

Unavailable

28

.SPRING, FR

51171-13G00

Unavailable

29

.WASHER

51172-05F00

$4.55

30

.SPACER

51176-13G00

Unavailable

31

.CAP

51351-13G00

$29.35

32

O RING This part replaces 51117-05F00.

51117-05F01

$3.68

33

.BOLT, FORK CYLINDER (10X25)

51147-16510

$4.34

34

.GASKET

51148-41310

$2.26

35

.BOLT

07130-08308

Unavailable
