Description

Price

1

CALIPER ASSY, FR RH

59100-33D81-999

$583.83

2

PISTON SET This part replaces 59300-33831.

59301-20820

$37.59

3

..SEAL SET, PISTON

59300-33841

$15.45

4

.SPRING, PAD RH

59115-33D00

$14.90

5

.BOOT, AXLE

59112-44B00

$8.91

6

.PIN, PAD

59141-44B01

$9.09

7

.INSULATOR, AXLE

59313-36500

$5.99

8

.CLIP, PAD PIN

69142-45000

$4.34

9

.GUIDE, PAD

59116-33D00

$7.97

10

.BLEEDER

59121-18410

$8.73

11

.CAP, BLEEDER PLUG

55156-66310

$5.17

12

.CARRIER, CALIPER RH

59150-33D01

$109.85

13

PAD SET

59102-33840

$55.57

14

BOLT

01550-1025B

$4.10

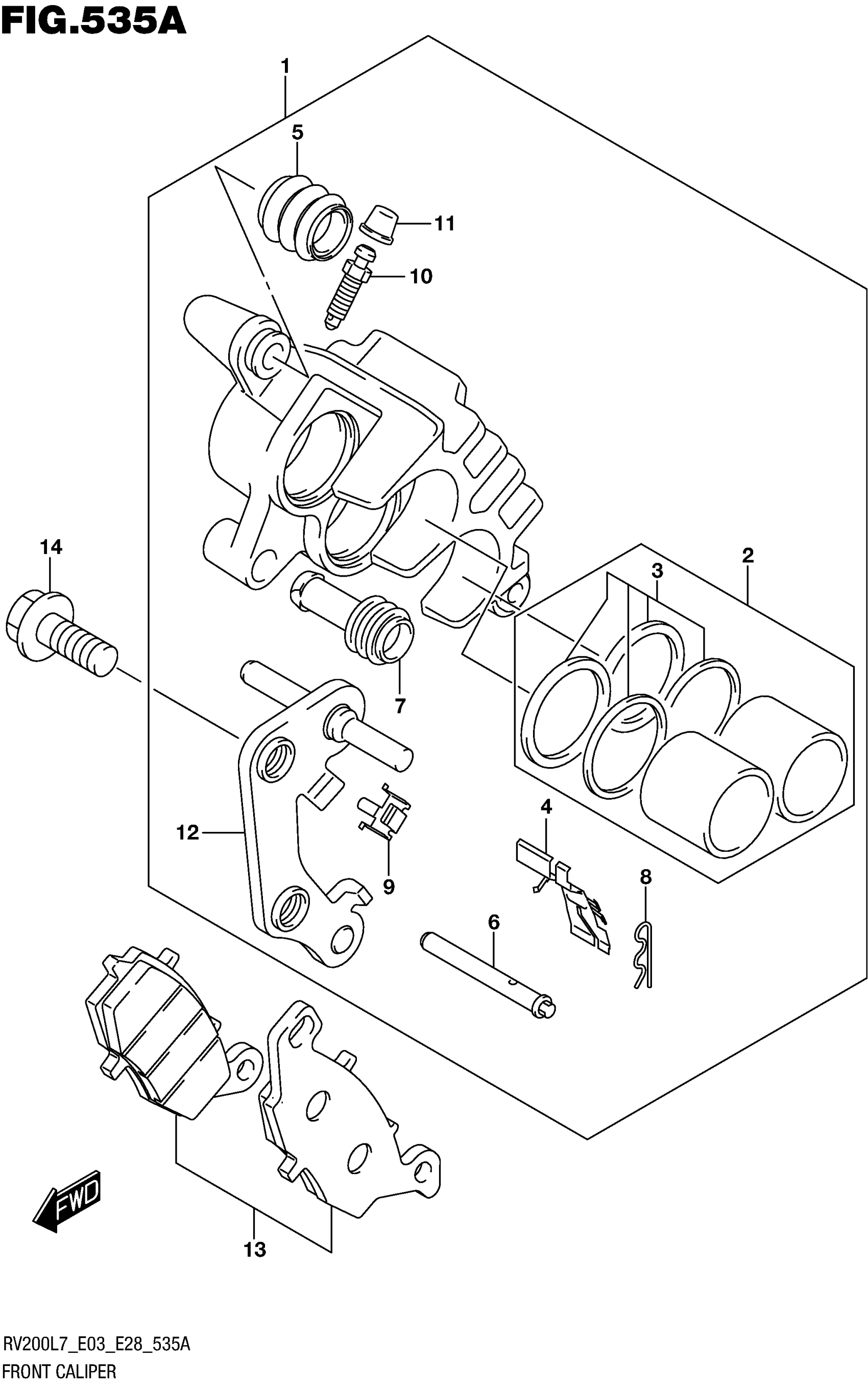

Suzuki RV200L7 (2017) FRONT CALIPER Diagram
