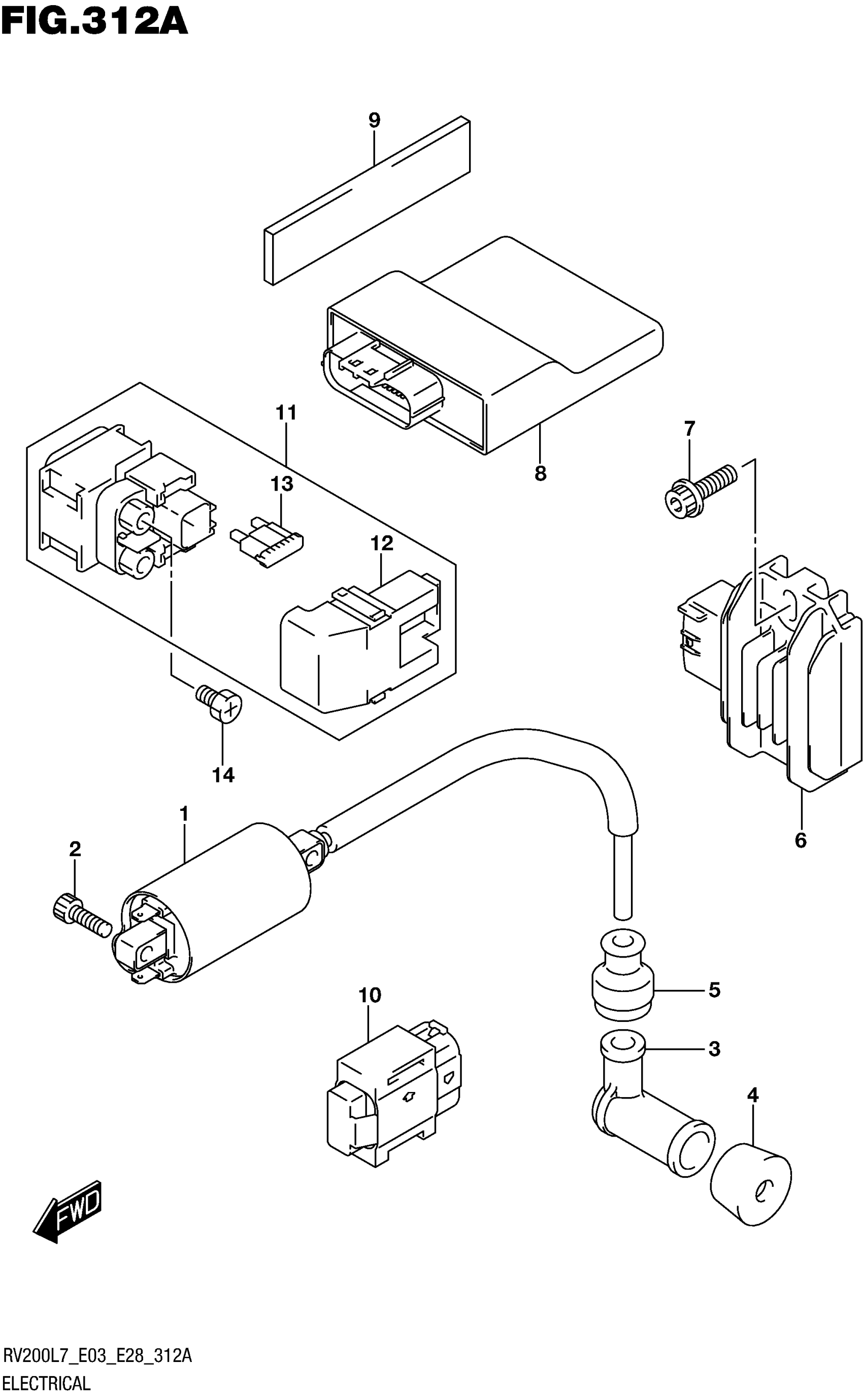

Suzuki RV200L7 (2017) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION

33410-13G00

Unavailable

2

BOLT

07130-0516B

$2.45

3

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.73

4

SEAL, SPARK PLUG

33541-38210

$4.68

5

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

6

RECTIFIER ASSY

32800-05F20

$223.65

7

BOLT

07120-0620B

$3.04

8

CONTROL UNIT, FI

32920-13G40

Unavailable

9

CUSHION, FI CONTROL UNIT

33652-49000

$3.58

10

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

11

RELAY ASSY,STAR This part replaces 31800-47E00.

31800-47E01

$80.01

12

.COVER

31861-47E00

$16.15

13

.FUSE (20A)

09481-20102

$2.98

14

SCREW (6X8)

09128-06013

$1.49
