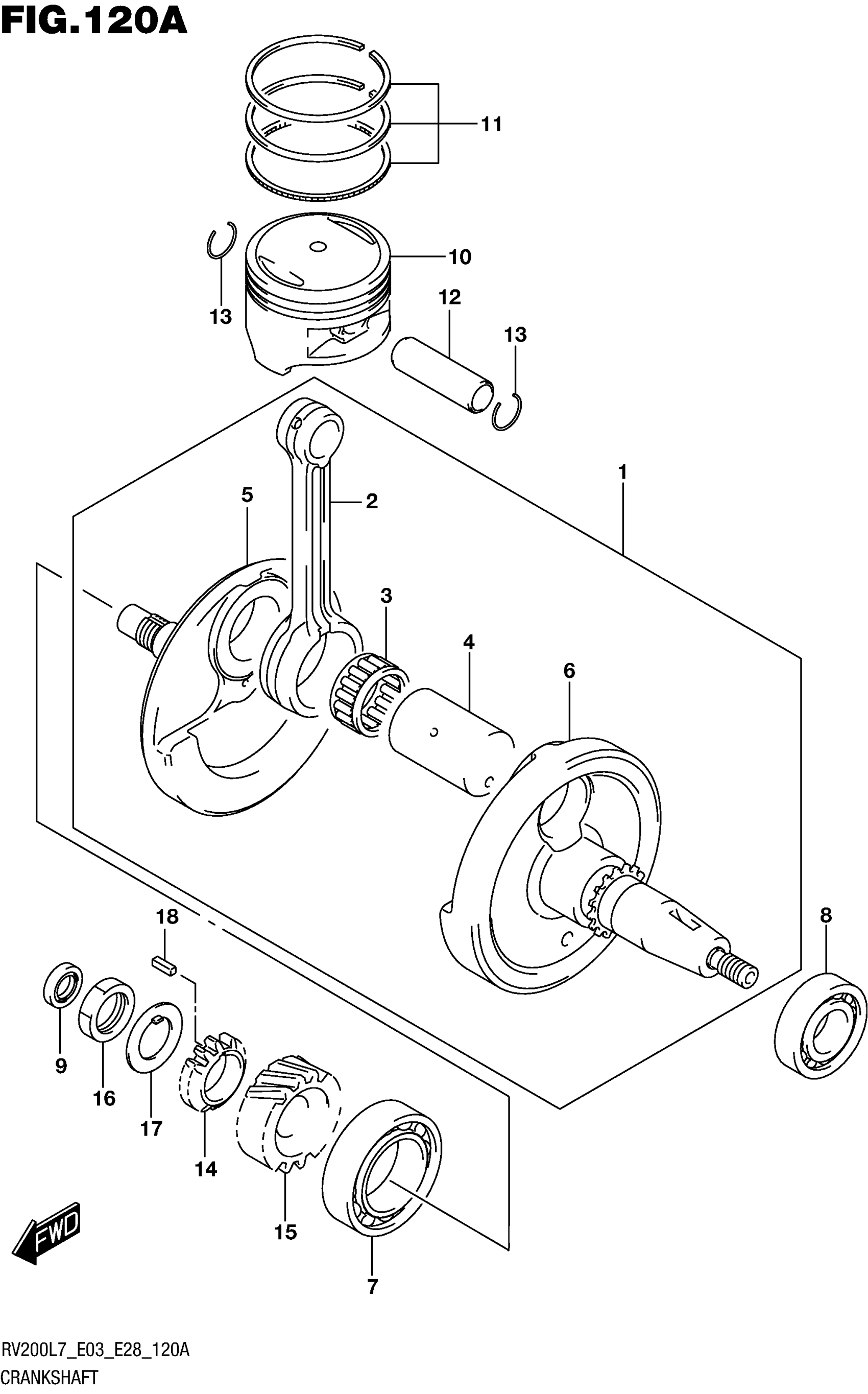

Suzuki RV200L7 (2017) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-42A21

$615.05

2

.ROD, CONNECTING

12161-42A01

$116.47

3

.BEARING (31X38X18)

09263-31008-0B0

$49.53

4

.PIN, CRANK

12210-42A01

$40.02

5

.CRANKSHAFT RH

12221-42A02

Unavailable

6

.CRANKSHAFT LH

12261-42A20

Unavailable

7

BEARING (28X68X18) | RH

09262-28014

$57.95

8

BEARING (35X72X17) | LH

09262-35038

$46.10

9

OIL SEAL (12X21X7)

09282-12009

$13.11

10

PISTON

12111-42A20-0F0

$92.68

11

RING SET, PISTON

12140-42A01

$80.83

12

PIN, PISTON

12151-22A02

$12.15

13

SNAP RING

09381-16001

$1.67

14

GEAR, OIL PUMP DRIVE (NT:15)

16321-42A00

Unavailable

15

GEAR, PRIMARY DRIVE (NT:19)

21111-42A01

Unavailable

16

NUT

09140-18004

$3.23

17

WASHER

09166-18003

$2.38

18

KEY

09421-04007

$7.37
