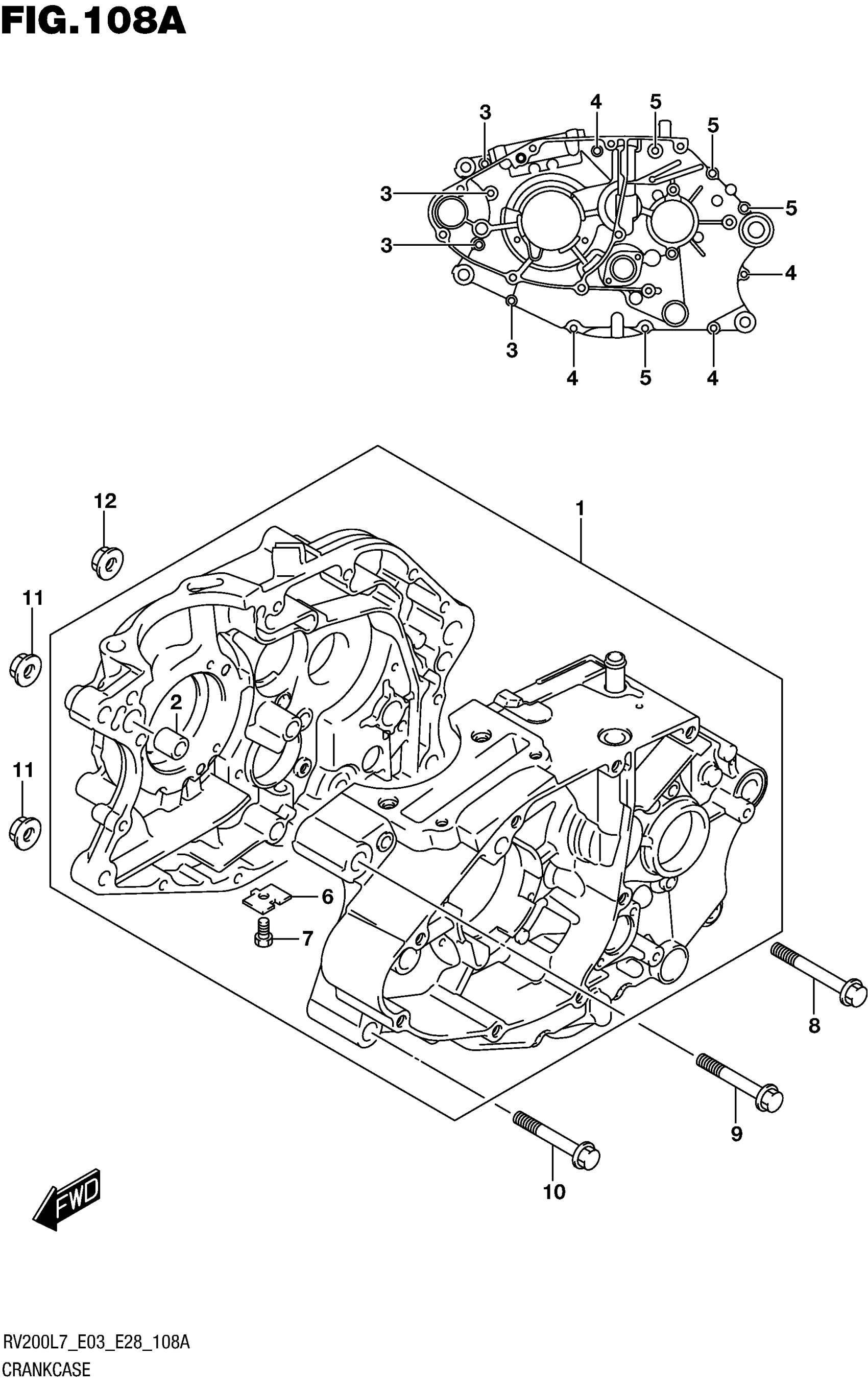

Suzuki RV200L7 (2017) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-42A60

Unavailable

2

.PIN

04211-13189

$2.19

3

.BOLT

01547-0655A

$2.42

4

.BOLT

01547-0660A

$2.82

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.37

7

.BOLT

01500-0610A

$2.23

8

BOLT (8X90)

09103-08112

$8.43

9

BOLT (10X80)

09103-10370

$7.30

10

BOLT (10X80)

09103-10370

$7.30

11

NUT

09159-10115

$3.55

12

NUT

08319-3108A

$2.32
