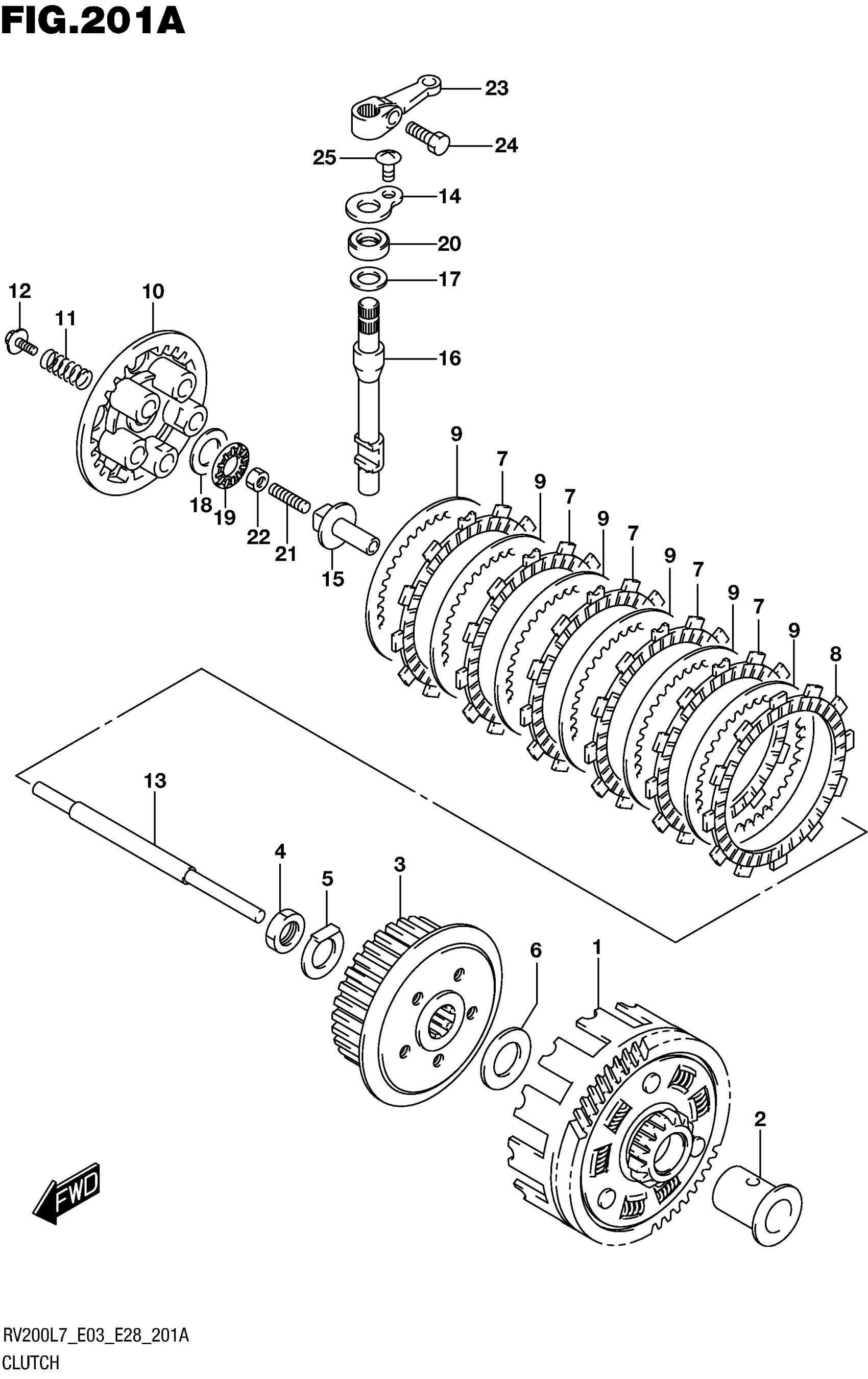

Suzuki RV200L7 (2017) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRI DRIVEN

21200-13G00

Unavailable

1

(NT:20/60)

21200-13G00

Unavailable

2

SPACER, PRIMARY DRIVEN GEAR

21251-13E00

$23.38

3

HUB, CLUTCH SLEEVE

21411-42A04

$66.47

4

NUT This part replaces 09140-16001.

09140-16005

$3.75

5

WASHER

09169-16003

$2.45

6

WASHER

08211-20355

$4.68

7

PLATE, CLUTCH DRIVE (T:3.0)

21441-25C01

$20.77

8

PLATE, CLUTCH DRIVE (T:3.0)

21441-13A01

$14.73

9

PLATE, DRIVEN (T:1.4)

21451-01B40

$8.40

10

DISC, CL PRESSURE

21462-14130

$24.87

11

SPRING

09440-15021

$3.89

12

BOLT (5X16)

09116-05020

$2.03

13

ROD, CLUTCH PUSH

23110-05203

$18.02

14

RETAINER, CL RLSE OIL SEAL

23117-05200

$5.13

15

PIECE, CLUTCH PUSH

23121-38201

$26.73

16

CAMSHAFT, CLUTCH RELEASE

23122-05200

$50.10

17

SHIM (10X20X1)

09181-10195

$1.99

18

WASHER (15.5X28X1)

09160-15045

$3.89

19

BEARING (15X28X2)

09263-15003

$8.29

20

OIL SEAL (10X20X6)

09282-10012

$7.98

21

SCREW (6X25)

09134-06010

$3.12

22

NUT

09140-06023

$2.06

23

ARM, CLUTCH RELEASE

23271-46010

$28.97

24

BOLT

01500-0616A

$1.78

25

SCREW

02142-0610A

$1.49
