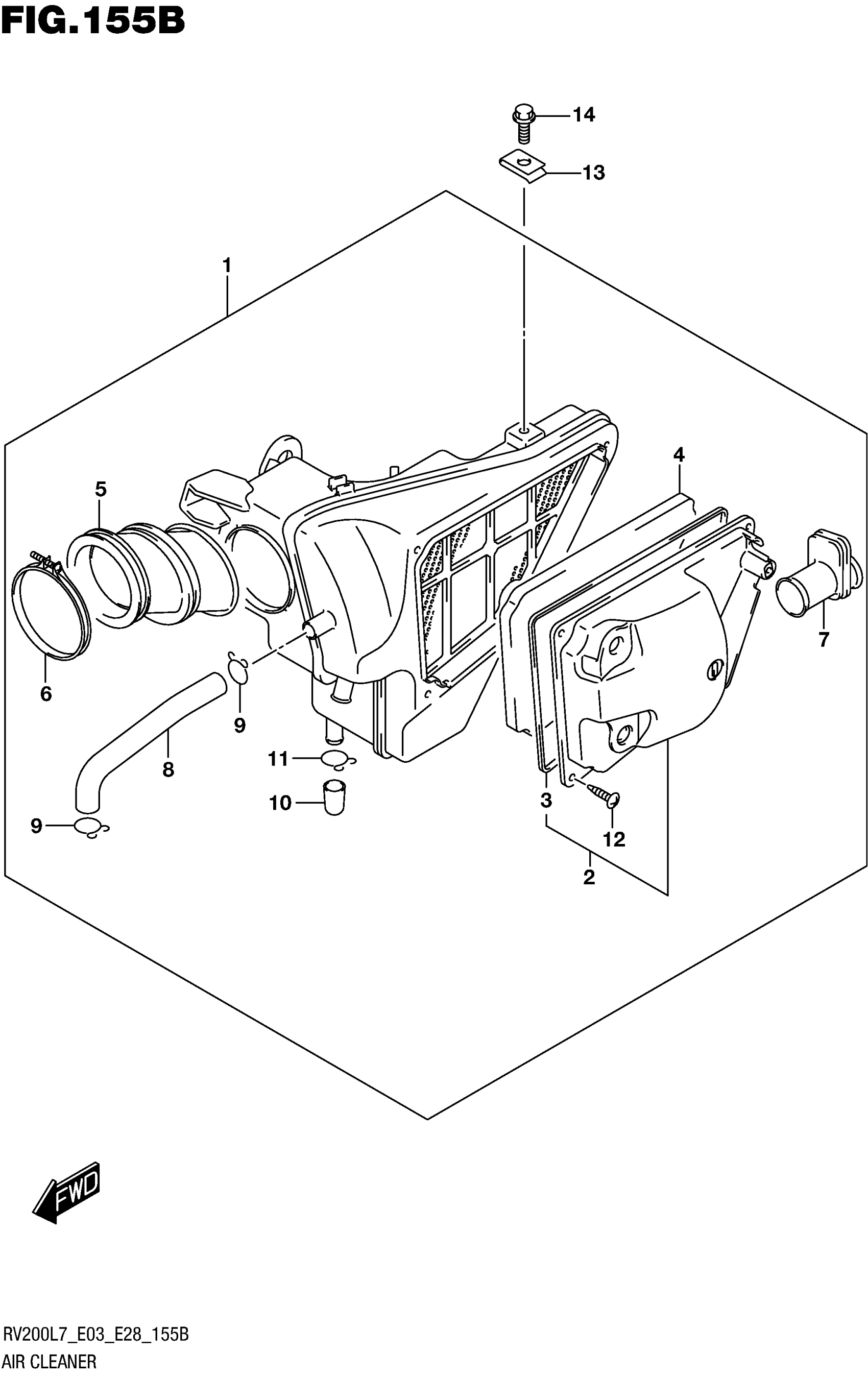

Suzuki RV200L7 (2017) AIR CLEANER (RV200L7 E28) Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-13GC0.

13700-13GC1

$171.28

2

CAP,AIR CLEANER This part replaces 13740-13G01.

13740-13G02

$30.92

3

..GASKET, AIR CLEANER CAP

13746-13G00

$4.25

4

.FILTER ASSY

13780-13G02

$12.67

5

.TUBE, OUTLET

13881-13GC0

Unavailable

6

.CLAMP

09402-52208

$5.36

7

TUBE,INLET This part replaces 13891-13GC0.

13891-13GC1

$24.42

8

.TUBE, BREATHER

13853-13G00

$12.45

9

.CLIP

09401-14301

$2.35

10

.PLUG

13859-41B10

$7.38

11

.CLIP

09401-14301

$2.35

12

SCREW

03541-0520A

$1.80

13

NUT

09148-06021

$3.56

14

BOLT

01550-0616A

$1.97
