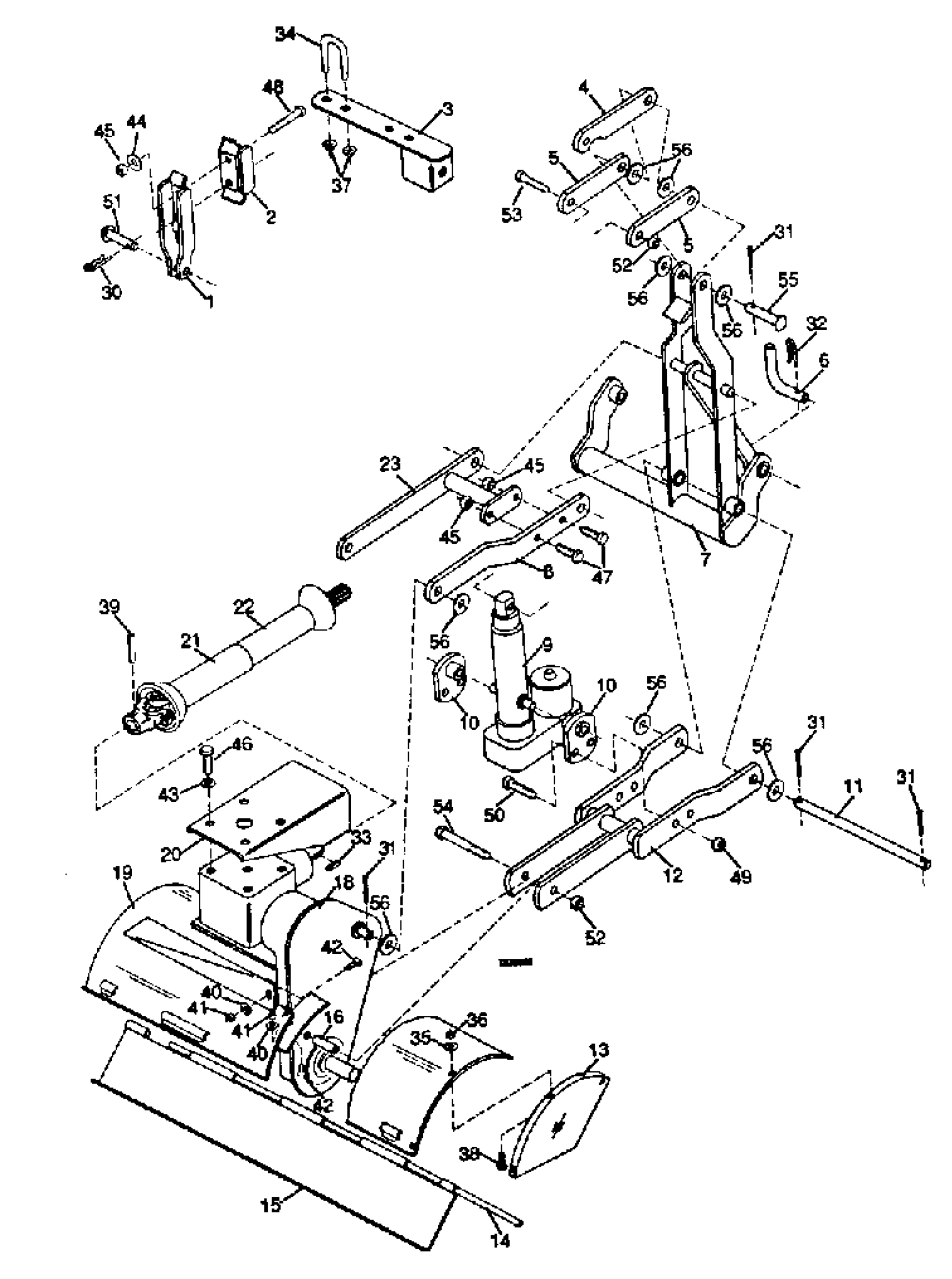

Yamaha RT38 (YFP350U ATTACHMENTS) 1989 TILLER ASSEMBLY Diagram
#
1
ATTITUDE RACK ASSY
BA8-66003-00-00
Unavailable
2
ATTITUDE RACK ASSY
BA8-66003-00-00
Unavailable
3
SWITCH BRACKET WA ASSEMBLY
BA8-66055-00-00
Unavailable
4
LINK
BA8-66045-00-00
Unavailable
5
LINK
BA8-66046-00-00
Unavailable
6
HITCH PIN
BA2-65937-00-00
Unavailable
7
TILLER MOUNT WA.
BA8-66048-00-00
Unavailable
8
RT. ATTITUDE LINK
BA8-66040-00-00
Unavailable
9
12V ELECTRIC CYLINDER, ACTUATOR
BA8-66058-00-00
Unavailable
10
ACTUATOR MOUNT ASSEMBLY
BA8-66037-00-00
Unavailable
11
. CLEVIS PIN
BA8-66047-00-00
Unavailable
12
DRAFT LINK
BA8-66034-00-00
Unavailable
13
END CAP
BA8-63694-00-00
Unavailable
14
1/4 ROUND X 39 BLK
BA8-63499-00-00
Unavailable
15
UNAVAILABLE IN PRICE BOOK
BA8-83321-00-00
Unavailable
16
PIVOT BUSHING
BA8-63497-00-00
Unavailable
18
UNAVAILABLE IN PRICE BOOK (SEE SEPARATE CHAINCASE A)
SEE-GRIDS-D9-11
Unavailable
19
SHIELD ASSEMBLY W/DECAL
BA8-66072-00-00
Unavailable
20
PTO SHIELD
BA8-66032-00-00
Unavailable
21
REAR PTO DRVE SHAFT TRIANGULAR DRIVE W/DECALS
BA8-66012-00-00
Unavailable
22
FRONT PTO DRIVE SHAFT TRIANGULAR DRIVE, 9.38" LONG
BA8-66011-00-00
Unavailable
23
ATT. LINK WELDMENT
BA8-66041-00-00
Unavailable
24
DECAL SET, COMPLETE (NOT SHOWN)
BA8-66068-00-00
Unavailable
25
. WARNING DECAL (NOT SHOWN)
BA8-62949-00-00
Unavailable
26
. PTO DECAL (NOT SHOWN)
BA8-29029-00-00
Unavailable
27
. DRIVELINE DECAL (NOT SHOWN)
BA8-33347-00-00
Unavailable
28
. GEARBOX DECAL (NOT SHOWN)
BA8-66060-00-00
Unavailable
29
. RT38 DECAL (NOT SHOWN)
BA8-66067-00-00
Unavailable
30
NUT (6MM X 1.0), HEX
O/L---
Unavailable
31
NUT (6MM X 1.0), HEX
O/L---
Unavailable
32
NUT (6MM X 1.0), HEX
O/L---
Unavailable
33
KEY
BA2-03886-00-00
Unavailable
34
1/4 U-BOLT
(BA8-66010-00-00)
Unavailable
35
NUT (6MM X 1.0), HEX
O/L---
Unavailable
36
NUT (6MM X 1.0), HEX
O/L---
Unavailable
37
1/4 HEX LOCK NUT
BA8-62521-00-00
Unavailable
38
1/4X1/2 CARRIAGE BOLT
BA8-64812-00-00
Unavailable
39
ROLL PIN
BA2-11880-00-00
Unavailable
40
NUT (6MM X 1.0), HEX
O/L---
Unavailable
41
NUT (6MM X 1.0), HEX
O/L---
Unavailable
42
NUT (6MM X 1.0), HEX
O/L---
Unavailable
43
NUT (6MM X 1.0), HEX
O/L---
Unavailable
44
NUT (6MM X 1.0), HEX
O/L---
Unavailable
45
NUT (6MM X 1.0), HEX
O/L---
Unavailable
46
NUT (6MM X 1.0), HEX
O/L---
Unavailable
47
NUT (6MM X 1.0), HEX
O/L---
Unavailable
48
NUT (6MM X 1.0), HEX
O/L---
Unavailable
49
NUT (6MM X 1.0), HEX
O/L---
Unavailable
50
NUT (6MM X 1.0), HEX
O/L---
Unavailable
51
CLEVIS PIN
BA8-63528-00-00
Unavailable
52
NUT (6MM X 1.0), HEX
O/L---
Unavailable
53
NUT (6MM X 1.0), HEX
O/L---
Unavailable
54
NUT (6MM X 1.0), HEX
O/L---
Unavailable
55
CLEVIS PIN HT
BA8-08098-00-00
Unavailable
56
NUT (6MM X 1.0), HEX
O/L---
Unavailable
