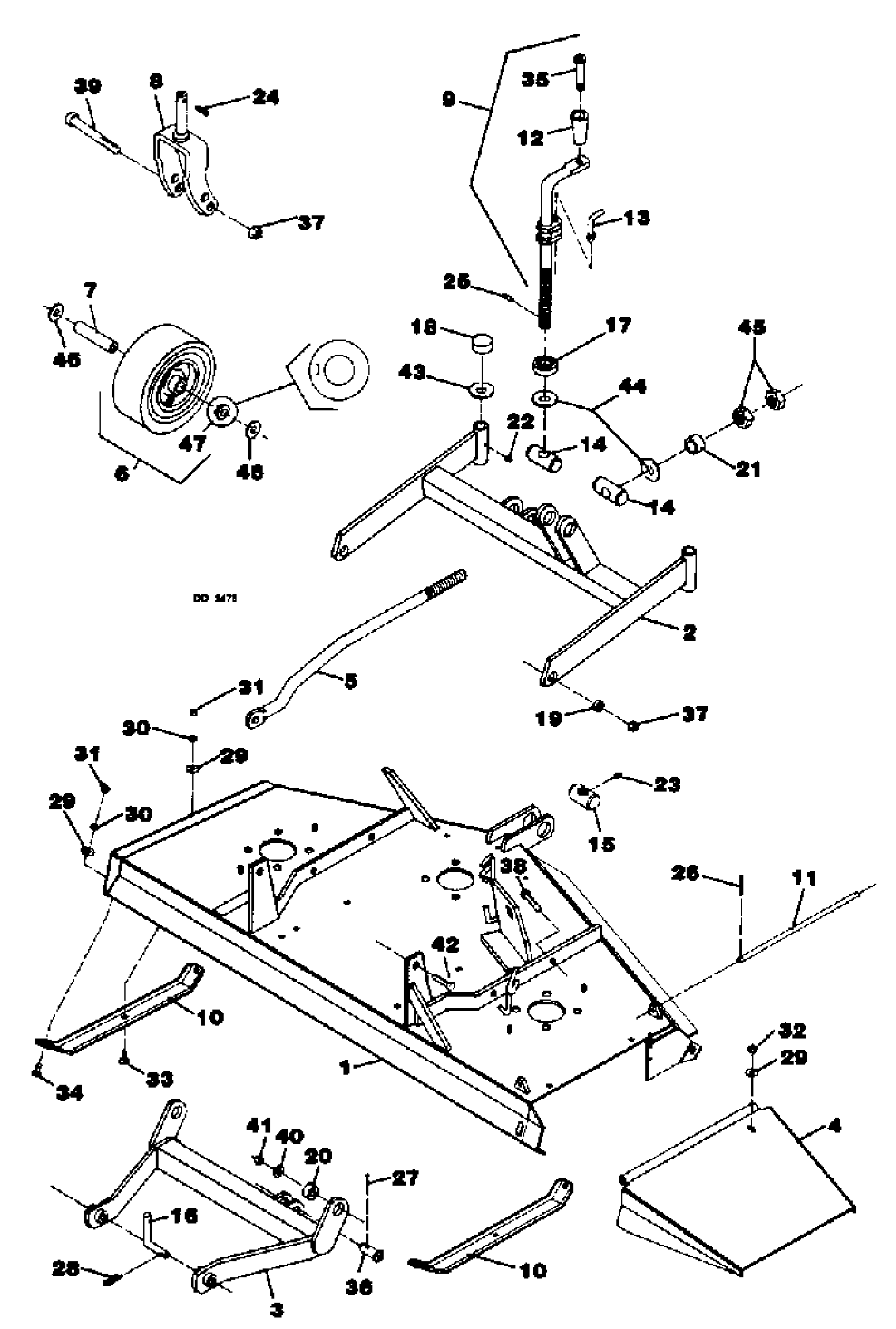

Yamaha RT38 (YFP350U ATTACHMENTS) 1989 MAIN FRAME ASSEMBLY Diagram
#
1
DECK FRAME, RM42
BA2-65902-00-00
Unavailable
2
CASTER ARM ASSEMBLY
BA2-65942-00-00
Unavailable
3
FRONT MOUNTING FRAME
BA2-65930-00-00
Unavailable
4
DISCHARGE CHUTE
BA2-65925-00-00
Unavailable
5
ATTITUDE ROD
BA2-65951-00-00
Unavailable
6
TIRE & WHEEL ASSEMBLY
(BA2-65550-00-00)
Unavailable
6
TIRE & WHEEL ASSY PNEUMATIC TIRE & WHEEL, SMOOTH TRE
BA2-65952-00-00
Unavailable
7
SLEEVE
BA2-65953-00-00
Unavailable
8
CASTER YOKE ASSEMBLY
BA2-31380-00-00
Unavailable
9
LIFT CRANK ASSEMBLY
BA2-65950-00-00
Unavailable
10
SIDE SKID
BA2-31665-00-00
Unavailable
11
SIDE SKID, RH
BA2-65924-00-00
Unavailable
12
PIN, DISCHGE CHUTE
BA2-65926-00-00
Unavailable
13
ACCESS HOLE COVER ASSEMBLY
BA2-03444-00-00
Unavailable
14
LIFT CRANK KNOB
BA2-65948-00-00
Unavailable
15
PIN, CRANK LOCK
BA2-65940-00-00
Unavailable
16
LIFT SCREW, THREADED ROD
BA2-65941-00-00
Unavailable
17
PIN, HEIGHT & ATTITUDE ADJUSTMENT
BA2-65939-00-00
Unavailable
18
HITCH PIN
BA2-65937-00-00
Unavailable
19
THRUST BEARING, TIMKEN
BA2-05620-00-00
Unavailable
20
TUBE CAP
BA2-31361-00-00
Unavailable
21
SLEEVE, HEAT-TREATED
BA2-00484-00-00
Unavailable
22
SLEEVE
BA2-25806-00-00
Unavailable
23
SLEEVE
BA2-65936-00-00
Unavailable
24
GREASE FITTING THREAD
BA2-01972-00-00
Unavailable
25
GREASE FITTING, 15/32" LONG
BA2-12296-00-00
Unavailable
26
ROLL PIN
BA2-21020-00-00
Unavailable
27
ROLL PIN
BA2-21019-00-00
Unavailable
28
COTTER PIN
BA2-03597-00-00
Unavailable
29
COTTER PIN
BA2-01256-00-00
Unavailable
30
SAFETY PIN
(BA2-18270-00-00)
Unavailable
31
WASHER, FLAT WASHER
BA2-00565-00-00
Unavailable
32
LOCK WASHER
BA2-00838-00-00
Unavailable
33
NUT, HEX PLATED
BA2-00835-00-00
Unavailable
34
LOCK NUT, HEX
BA2-06698-00-00
Unavailable
35
PLOW BOLT
BA2-65927-00-00
Unavailable
36
CARRIAGE BOLT
(BA2-24890-00-00)
Unavailable
37
SHOULDER SCREW
BA2-65949-00-00
Unavailable
38
NUT, WING
BA2-01287-00-00
Unavailable
39
CLEVIS PIN
BA2-00409-00-00
Unavailable
40
WASHER, FLAT
BA2-00854-00-00
Unavailable
41
LOCK NUT, HEX
BA2-11900-00-00
Unavailable
42
SCREW, HEX HEAD
BA2-24576-00-00
Unavailable
46
HEX HEAD CAP SCREW HT
BA2-04548-00-00
Unavailable
47
WASHER, FLAT
BA2-65938-00-00
Unavailable
48
WASHER, FLAT
BA2-05609-00-00
Unavailable
49
NUT, HEX
(BA2-01450-00-00)
Unavailable
51
. BEARING (75X1415)
BA2-65577-00-00
Unavailable
51
. BEARING (75X1385)
BA2-65578-00-00
Unavailable
