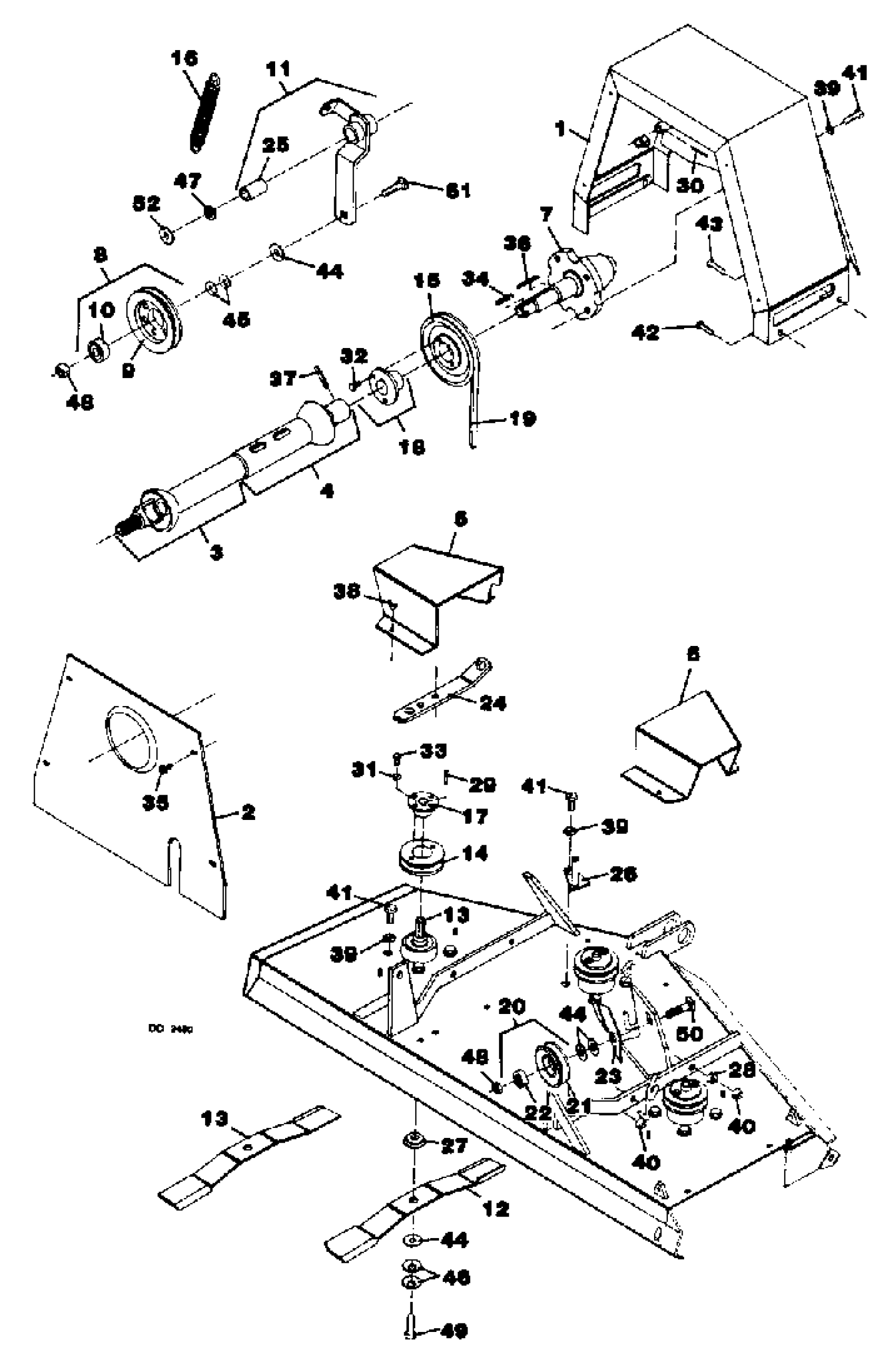

Yamaha RT38 (YFP350U ATTACHMENTS) 1989 DRIVE ASSEMBLY Diagram
#
1
SPINDLE SUPPORT FRAME
BA1-65975-00-00
Unavailable
2
FRONT SHIELD
BA1-65992-00-00
Unavailable
3
FRONT PTO SHAFT ASSY
BA2-33115-00-00
Unavailable
4
REAR PTO SHAFT SHIELD ASSEMBLY
BA2-33116-00-00
Unavailable
5
SHEAVE
BA1-03493-00-00
Unavailable
5
RT BELT SHIELD
BA1-65988-00-00
Unavailable
6
LT BELT SHIELD
BA1-65989-00-00
Unavailable
7
DRIVE SPINDLE ASSEMBLY
BA1-65976-00-00
Unavailable
8
FLAT IDLER W/BRGS
BA1-33042-00-00
Unavailable
9
FLAT IDLER W/BRGS
BA1-33042-00-00
Unavailable
10
. BEARING
BA1-24259-00-00
Unavailable
11
IDLER ARM ASSEMBLY
BA1-65980-00-00
Unavailable
12
LOW SUCTION BLADE
BA1-26875-00-00
Unavailable
12
STD. SUCTION BLADE
BA1-31348-00-00
Unavailable
13
BLADE SPINDLE ASSEMBLY (FOR LEFT HAND ROTATION)
BA1-03761-00-00
Unavailable
14
SHEAVE
BA2-04226-00-00
Unavailable
16
. SPRING, BELT TENS EXTENSION
BA1-31360-00-00
Unavailable
17
BUSHING, STRAIGHT BORE
BA1-29039-00-00
Unavailable
18
BUSHING, STRAIGHT (INCLUDES ITEMS 32 & 36)
BA2-24031-00-00
Unavailable
19
V-BELT, KEVLAR
BA1-65999-00-00
Unavailable
20
IDLER W/BEARING
BA2-04336-00-00
Unavailable
21
IDLER W/BEARING
BA2-04336-00-00
Unavailable
22
. BEARING, BALL
BA2-06095-00-00
Unavailable
23
GUIDE, V-BELT
BA1-29718-00-00
Unavailable
24
BLADE WRENCHWRENCH
BA1-31307-00-00
Unavailable
25
BUSHING, BRONZEBRONZE BUSHING
BA1-28996-00-00
Unavailable
26
GUIDE, BELT SPINDLEBELT GUIDE
BA1-31793-00-00
Unavailable
27
WASHER, SHOULDER
BA1-04110-00-00
Unavailable
28
SLEEVE
BA2-65936-00-00
Unavailable
29
KEYKEY
BA1-03885-00-00
Unavailable
30
COTTER PINPIN
BA1-01266-00-00
Unavailable
31
LOCKWASHERLOCKWASHER
BA1-01985-00-00
Unavailable
32
SCREW, HEX HEAD CAP SCREW GR5
BA2-02457-00-00
Unavailable
33
HEX HEAD CAP SCREW
(BA1-10378-00-00)
Unavailable
34
KEY
BA2-03886-00-00
Unavailable
35
. SCREWMETAL SCREW
BA1-27610-00-00
Unavailable
37
ROLL PIN
BA2-11880-00-00
Unavailable
38
NUT, WING
BA2-01287-00-00
Unavailable
39
LOCK WASHER
BA2-00855-00-00
Unavailable
40
LOCK NUT, HEX
BA2-11900-00-00
Unavailable
41
HEX HEAD CAP SCREWCAP SCREW GR5
BA1-04119-00-00
Unavailable
44
WASHER, FLAT
BA2-00692-00-00
Unavailable
45
WASHER, FLATFLAT WASHER
BA1-23306-00-00
Unavailable
46
WASHER, CUPCUP WASHER
BA1-10635-00-00
Unavailable
47
SEAL, FELTSEAL
BA1-22060-00-00
Unavailable
49
NYLOCK HEX HD.SCRWHEX HEAD CAP SCREW, HT (LEFT HAND)
BA1-10718-00-00
Unavailable
50
CARRIAGE BOLTCARRIAGE BOLT GR5
BA1-33660-00-00
Unavailable
51
CARRIAGE BOLTCARRIAGE BOLT
BA1-05836-00-00
Unavailable
