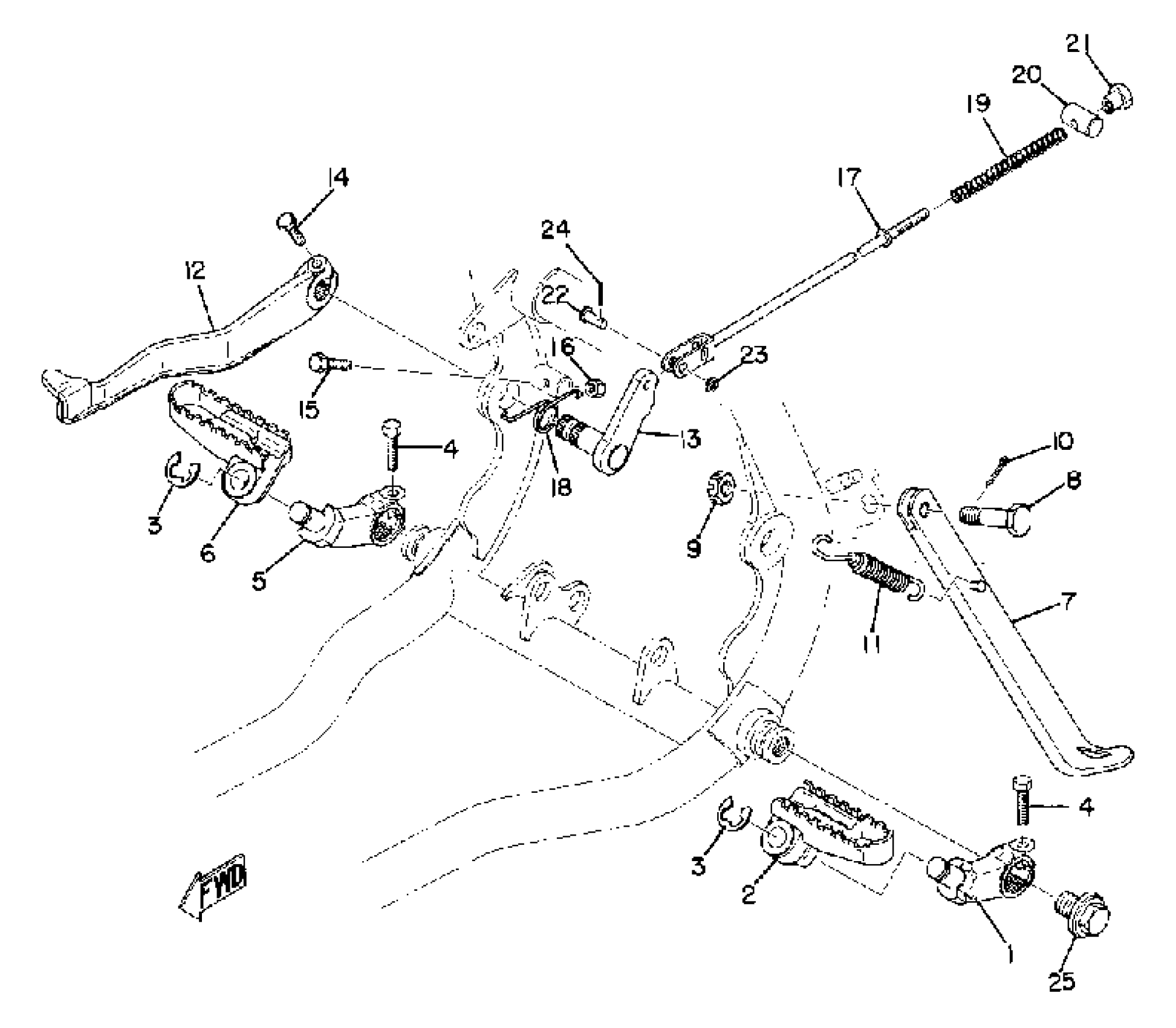

Yamaha RT2MX (RT2MX) 1972 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

BRACKET, FOOTREST 1

(322-27412-00-00)

Unavailable

2

FOOTREST 1

(363-27411-00-00)

Unavailable

3

CIRCLIP (137)

93430-10015-00

$9.49

4

BOLT (682)

97013-08025-00

$8.49

5

BRACKET, FOOTREST 2

(322-27422-00-00)

Unavailable

6

FOOTREST 2

(363-27421-00-00)

Unavailable

7

STAND, SIDE

214-27311-01-00

Unavailable

8

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

9

NUT, CASTLE

95307-10900-00

Unavailable

10

PIN, COTTER

91490-20025-00

$1.99

11

SPRING, TENSION (1L9)

90506-26270-00

$15.99

12

PEDAL, BRAKE

(322-27211-01-33)

Unavailable

13

SHAFT, BRAKE PEDAL

(322-27212-00-00)

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

BOLT

(90109-06339-00)

Unavailable

16

NUT(650)

95380-06700-00

Unavailable

17

ROD, BRAKE

322-27231-00-00

Unavailable

18

SPRING, TORSION

(90508-29048-00)

Unavailable

19

SPRING, (180-27236-00)

90501-10245-00

Unavailable

20

PIN 1562723700

90249-12008-00

Unavailable

21

NUT (25K)

90179-06411-00

Unavailable

22

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT

(90109-12335-00)

Unavailable

26

SPRING, TORSION

(90508-26039-00)

Unavailable

27

SPRING, TORSION

(90508-26112-00)

Unavailable
